DTEA1250

The DTEA1250 series of AC/DC desktop power supplies provides up to 250 Watts of continuous output power. All models have a single output and a wide input voltage range of 100~240VAC. This series is Energy Star Level VI, CEC and RoHS compliant and has over voltage, over current, and short circuit protection. This series also has four AC inlet connector types available: IEC-320 C14, C8, C6, and C18. Optional output connectors are also available please call factory for ordering details.

• RoHS Compliant • Efficiency Meets CEC Level V, VI • LED Indication • Active PFC Function • Single Outputs Ranging from 12VDC to 56VDC • IEC-320-C14, IEC-320-C8, IEC-320-C6, & IEC-320-C18 AC Inlets Available • Low Ripple & Noise • UL/cUL, CB, CE, FCC, & CCC Safety Approvals • 100~240VAC Input Voltage Range • Over Voltage, Over Current, Over Temperature, and Short Circuit Protection • MTBF: 30,000 Hours • Optional Output Connectors Available

Part Number Setup:
X: “1” for IEC‐320‐C14 Inlet, “2” for IEC‐320‐C8 Inlet, “3” for IEC‐320‐C6 Inlet, or “6” for IEC‐320‐C18 Inlet

Example:
DTEA12503B = 12~18VDC Output with IEC-320-C6 Inlet

Get a Quote Request a Sample Custom Solutions

Models
Specifications

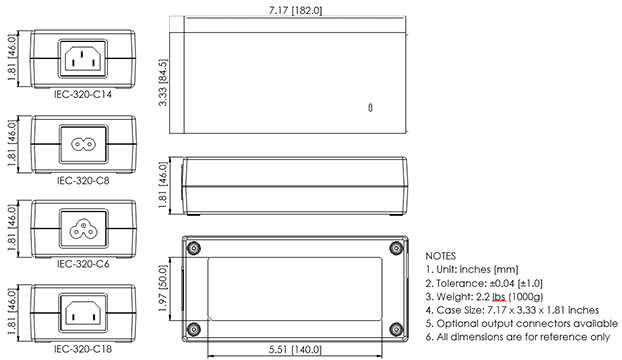

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DTEA1250xA	Input Voltage: 100~240	Output Voltage: 12~18	Output Current: 13.33A	Output Power (W): 160	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xB	Input Voltage: 100~240	Output Voltage: 12~18	Output Current: 15A	Output Power (W): 180	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xC	Input Voltage: 100~240	Output Voltage: 19~28	Output Current: 9.47A	Output Power (W): 180	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xD	Input Voltage: 100~240	Output Voltage: 12~18	Output Current: 16.66A	Output Power (W): 200	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xE	Input Voltage: 100~240	Output Voltage: 19~28	Output Current: 10.52A	Output Power (W): 200	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xF	Input Voltage: 100~240	Output Voltage: 32~42	Output Current: 6.25A	Output Power (W): 200	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xG	Input Voltage: 100~240	Output Voltage: 44~56	Output Current: 4.54A	Output Power (W): 200	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xH	Input Voltage: 100~240	Output Voltage: 12~18	Output Current: 18.33A	Output Power (W): 220	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xJ	Input Voltage: 100~240	Output Voltage: 19~28	Output Current: 11.57A	Output Power (W): 220	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xK	Input Voltage: 100~240	Output Voltage: 32~42	Output Current: 6.87A	Output Power (W): 220	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xL	Input Voltage: 100~240	Output Voltage: 44~56	Output Current: 5A	Output Power (W): 220	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xM	Input Voltage: 100~240	Output Voltage: 19~28	Output Current: 12.10A	Output Power (W): 230	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xN	Input Voltage: 100~240	Output Voltage: 32~42	Output Current: 7.18A	Output Power (W): 230	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xP	Input Voltage: 100~240	Output Voltage: 44~56	Output Current: 5.22A	Output Power (W): 230	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xQ	Input Voltage: 100~240	Output Voltage: 19~28	Output Current: 13.15A	Output Power (W): 250	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xR	Input Voltage: 100~240	Output Voltage: 32~42	Output Current: 7.81A	Output Power (W): 250	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote
DTEA1250xS	Input Voltage: 100~240	Output Voltage: 44~56	Output Current: 5.68A	Output Power (W): 250	No. Outputs: S	Case: Desktop	Size: 7.17" x 3.33" x 1.81"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	100~240
PFC:	0.95, 0.9
Input Frequency:	50~60Hz
Output
Output Voltage:	12~18, 19~28, 32~42, 44~56
Output Current:	5A, 5.68A, 5.22A, 4.54A, 7.18A, 6.87A, 7.81A, 6.25A, 13.15A, 12.10A, 11.57A, 10.52A, 9.47A, 13.33A, 18.33A, 16.66A, 15.00A
Output Power (Watts):	160, 180, 200, 220, 230, 250
Short Circuit Protection:	Automatic Recovery
Over Voltage Protection:	Automatic Recovery or Latch Off
Thermal Protection:	Latch Off
General
Environmental
Operating Temperature:	0 to 40°C
Storage Temperature:	-20 to 85°C
Physical
Weight:	2.2lbs
Dimensions:	7.17" x 3.33" x 1.81"
Notes & safety
Notes:	(1) The “x” in the model number represents the type of AC inlet connector: “x” can be “1” for IEC‐320‐C14 type, “2” for IEC‐320‐C8 type, “3” for IEC‐320‐C6, or “6” for IEC‐320‐C18 type. (2) The output voltage is specified as a range (Ex: 44~56 VDC); the customer must specify what they want the voltage set at. (3) Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel across the output. (4) Optional output connectors are available. Please call factory for ordering details. (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice.
Safety Approvals:	UL/cUL, CB, CE, FCC, CCC
RoHS Compliance:	Yes
Energy Star Compliance:	Level V, VI
