DTEA1135
The DTEA1135 series of AC/DC desktop power supplies provides up to 150 Watts of continuous output power. All models have a single output and a wide input voltage range of 100~240VAC. This series is RoHS and Energy Star/CEC Level V compliant. All models have over voltage, over current, and short circuit protection. This series also has two AC inlet connector types available: IEC-320-C14 and IEC-320-C6. Optional output connectors are also available please call factory for ordering details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA11351A | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEA11351C | Input Voltage: 100~240 | Output Voltage: 15~24 | Output Current: 6.66A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEA11353A | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEA11353C | Input Voltage: 100~240 | Output Voltage: 15~24 | Output Current: 6.66A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEA11351B | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 7.22A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEA11353B | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 7.22A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEA11351D | Input Voltage: 100~240 | Output Voltage: 15~24 | Output Current: 8.33A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEA11353D | Input Voltage: 100~240 | Output Voltage: 15~24 | Output Current: 8.33A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 12~17, 15~24, 18~24 |
| Output Current: | 10A, 6.66A, 8.33A, 7.22A |
| Output Power (Watts): | 120, 130, 150 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | 85% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.55 lbs |

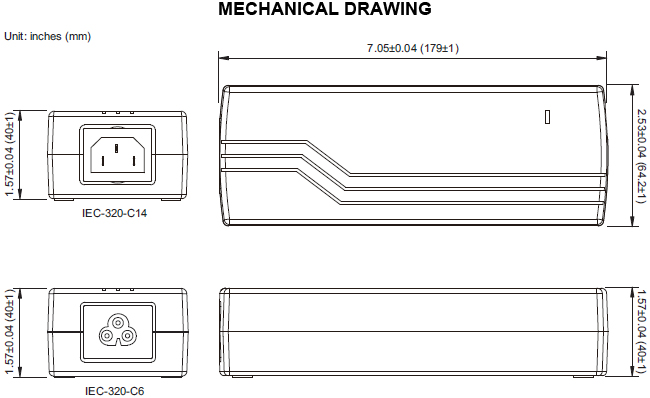

| Dimensions: | 7.05" x 2.53" x 1.57" (179 x 64.2 x 40 mm) |
| Notes & safety | |
| Notes: | 1. The number in red represents the type of AC inlet: “1” is for IEC-320-C14 type and “3” is for IEC-320-C6 type. 2. The output voltage is specified as a range (Ex: 15 ~ 24VDC); the customer must specify what they want the voltage set at. 3. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel. 4. Line regulation is defined by changing ±10% of input voltage from nominal line and rated load. 5. Optional output connectors are available. Please call factory for ordering details. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950, UL 60065, EN/IEC 60065 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V |
