DTEA1101

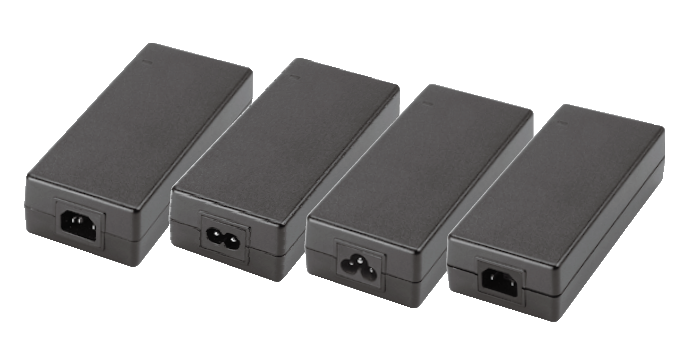

The DTEA1101 series of AC/DC desktop power supplies provides up to 130 Watts of continuous output power in a 5.39” x 2.32” x 1.34” package. All models have a single output and a wide input voltage range of 100~240VAC. This series is RoHS, WEEE, and CEC compliant and has UL/cUL 60950-1, TUV/GS EN/IEC 60950, CB, FCC, CCC, and PSE safety approvals. All models are protected against short circuit, over voltage, over current, and over temperature conditions. This series also has three AC inlet connector types available: IEC-320-C14, IEC-320-C8, and IEC-320-C6. Optional output connectors are also available please call factory for ordering details.

• Single Outputs • CEC Compliance • RoHS & WEEE Compliance • IEC-320-C14, IEC-320-C8, IEC-320-C6, & IEC-320-C18 AC Inlets Available • LED Indication • Meets FCC Part 15 Class B & EN55022 Class B EMI/EMC Standards • UL/cUL 60950, TUV/GS EN/IEC 60950, CB, FCC, CCC, & PSE Approvals • Active PFC Function • Efficiency Level VI • 100~240VAC Input Voltage Range • MTBF > 100,000 Hours • 88% Typical High Efficiency • Optional Output Connectors Available • Short Circuit, Over Voltage, Over Current, & Over Temp. Protection
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTEA11013A Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 6.66A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA11011A Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 6.66A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA11012A Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 6.66A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA11011B Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 7.5A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA11012B Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 7.5A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA11013B Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 7.5A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA11012C Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 4.73A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA11013C Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 4.73A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA11011C Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 4.73A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA11011D Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 8.33A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11012D Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 8.33A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11013D Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 8.33A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11012E Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 5.26A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11013E Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 5.26A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11011E Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 5.26A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11013N Input Voltage: 100~240 Output Voltage: 48~56 Output Current: 2.08A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11011N Input Voltage: 100~240 Output Voltage: 48~56 Output Current: 2.08A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11012N Input Voltage: 100~240 Output Voltage: 48~56 Output Current: 2.08A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA11011F Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 9.16A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTEA11013F Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 9.16A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTEA11012F Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 9.16A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTEA11012G Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 5.78A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTEA11011G Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 5.78A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTEA11013G Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 5.78A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTEA11011H Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 10A Output Power (W): 120 No. Outputs: S Case: Desktop Get a Quote
DTEA11013H Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 10A Output Power (W): 120 No. Outputs: S Case: Desktop Get a Quote
DTEA11012H Input Voltage: 100~240 Output Voltage: 12~16 Output Current: 10A Output Power (W): 120 No. Outputs: S Case: Desktop Get a Quote
DTEA11011M Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 6.31A Output Power (W): 120 No. Outputs: S Case: Desktop Get a Quote
DTEA11013M Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 6.31A Output Power (W): 120 No. Outputs: S Case: Desktop Get a Quote
DTEA11012M Input Voltage: 100~240 Output Voltage: 19~24 Output Current: 6.31A Output Power (W): 120 No. Outputs: S Case: Desktop Get a Quote
DTEA11013P Input Voltage: 100~240 Output Voltage: 48~56 Output Current: 2.70A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTEA11011P Input Voltage: 100~240 Output Voltage: 48~56 Output Current: 2.70A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTEA11012P Input Voltage: 100~240 Output Voltage: 48~56 Output Current: 2.70A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50/60Hz
Output
Output Voltage: 12~16, 19~24, 48~56
Output Current: 2.08A, 2.70A, 5.26A, 5.78A, 6.31A, 4.73A, 10A, 8.33A, 7.5A, 9.16A, 6.66A
Output Power (Watts): 80, 90, 100, 110, 120, 130
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Off
Thermal Protection: Latch Off
General
Efficiency: 88%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical
Weight: 15.87 oz. (450g)

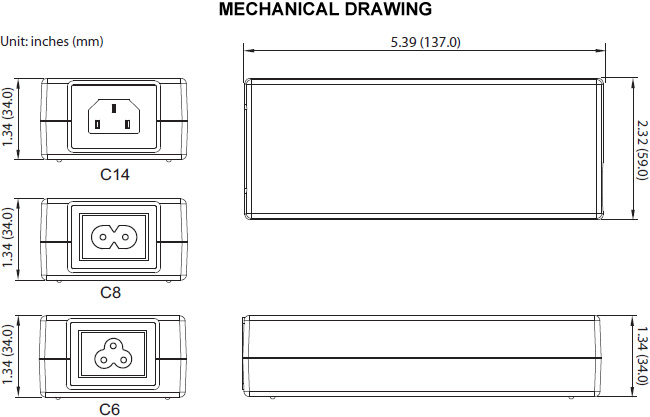

Dimensions: 5.39" x 2.32" x 1.34" (137 x 59 x 34 mm)
Notes & safety
Notes: 1. The ”x” in the model number represents the type of AC inlet connector: “x” can be “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, “3” for IEC-320-C6 type, or “4” for IEC-320-C18.
2. The output voltage is specified as a range (Ex: 48~56 VDC); the customer must specify what they want the voltage set at.
3. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel across the output.
4. Optional output connectors are available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 60950, TUV/GS EN IEC 60950, CB, FCC, CCC
RoHS Compliance: Yes
TUV Efficiency Level: TUV/GS EN IEC 60950
Energy Star Compliance: Level VI
