DTEA1068
The DTEA1068 series of AC/DC desktop power supplies provides up to 72 Watts of continuous output power in a 4.45” x 1.93” x 1.38” package. This series consists of single output models ranging from 5VDC to 56VDC with a wide input voltage range of 100~240VAC. This series is RoHS and WEEE compliant and meets CEC Level V, VI requirements. This series also has UL/cUL, CB, FCC, CCC, and CE safety approvals. All models are protected against short circuit, over voltage, over current, and over temperature conditions. Four AC inlet connector types are available for this series: IEC-320-C14, IEC-320-C8, IEC-320-C6, and IEC-320-C18. Optional output connectors are also available please call factory for ordering details.
• RoHS & DoE Compliant
• Efficiency Meets CEC Level VI (DoE), CoC Tier 2
• LED Indication
• Single Outputs Ranging from 5VDC to 56VDC
• IEC-320-C14, IEC-320-C8, IEC-320-C6, & IEC-320-C18 AC Inlets Available
• UL/cUL, CB, FCC, CCC, CE Safety Approvals
• 100~240VAC Input Voltage Range
• Protection: OVP / OCP / OTP / SCP
• Optional Output Connectors Available
Part Number Setup:
X: “1” for IEC-320-C14 Inlet, “2” for IEC-320-C8 Inlet, “3” for IEC-320-C6 Inlet, or “6” for IEC-320-C18 Inlet
X: “1” for IEC-320-C14 Inlet, “2” for IEC-320-C8 Inlet, “3” for IEC-320-C6 Inlet, or “6” for IEC-320-C18 Inlet
Example:
DTEA10683B; 12~16VDC Output Voltage with IEC-320-C6 Inlet
DTEA10683B; 12~16VDC Output Voltage with IEC-320-C6 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA1068xA | Input Voltage: 100~240 | Output Voltage: 5~9 | Output Current: 5.0A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xB | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 3.33A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xC | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 2.10A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xD | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 1.25A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xE | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 0.90A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xF | Input Voltage: 100~240 | Output Voltage: 5~9 | Output Current: 6.0A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xG | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 4.16A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xH | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 2.63A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xJ | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 1.56A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xK | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 1.13A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xM | Input Voltage: 100~240 | Output Voltage: 5~9 | Output Current: 7.0A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xN | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 5.0A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xP | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 3.15A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xQ | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 1.87A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xR | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 1.36A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xS | Input Voltage: 100~240 | Output Voltage: 5~9 | Output Current: 9.0A | Output Power (W): 72 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xU | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 6.0A | Output Power (W): 72 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xV | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 3.78A | Output Power (W): 72 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xL | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 2.25A | Output Power (W): 72 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| DTEA1068xT | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 1.63A | Output Power (W): 72 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.93" x 1.38" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 5~9, 12~16, 19~24, 32~42, 44~56 |
| Output Current: | 0.9A, 1.13A, 1.36A, 1.63A, 2.25A, 1.25A, 1.56A, 1.87A, 2.63A, 3.15A, 3.78A, 2.10A, 6A, 3.33A, 5A, 4.16A, 7A, 9A |
| Output Power (Watts): | 40, 50, 60, 72 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| Thermal Protection: | Optional |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 10.58 oz. |

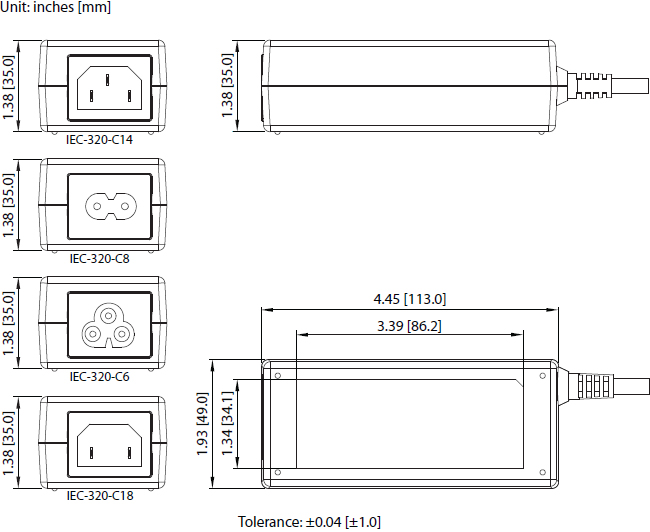

| Dimensions: | 4.45" x 1.93" x 1.38" (113 x 49 x 35 mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model number represents the type of AC inlet connector: “x” can be “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, “3” for IEC-320-C6, or “6” for IEC-320-C18 type. 2. The output voltage is specified as a range (Ex: 44~56 VDC); the customer must specify what they want the voltage set at. 3. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel across the output. 4. Optional output connectors are available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, FCC, CCC, CE |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
