DTEA1063

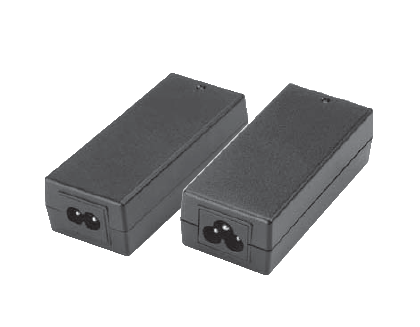

The DTEA1063 series of AC/DC desktop power supplies provides up to 65 watts of continuous output power. This series consists of single output models with output voltages ranging from 8VDC to 24VDC and an input voltage range of 100~240VAC. This series is CEC and RoHS compliant and has over voltage, over current, and short circuit protetion. This series also has two AC inlet connector types available: IEC-320-C6 and IEC-320-C8. Optional output connectors are also available, please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA10632A | Input Voltage: 100~240 | Output Voltage: 8~14 | Output Current: 4.5A | Output Power (W): 54 | No. Outputs: S | Case: Desktop | Size: 3.74 x 1.65 x 1.14 | Get a Quote |
| DTEA10633A | Input Voltage: 100~240 | Output Voltage: 8~14 | Output Current: 4.5A | Output Power (W): 54 | No. Outputs: S | Case: Desktop | Size: 3.74 x 1.65 x 1.14 | Get a Quote |
| DTEA10632B | Input Voltage: 100~240 | Output Voltage: 15~24 | Output Current: 4.06A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 3.74 x 1.65 x 1.14 | Get a Quote |
| DTEA10633B | Input Voltage: 100~240 | Output Voltage: 15~24 | Output Current: 4.06A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 3.74 x 1.65 x 1.14 | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 8~14, 15~24 |
| Output Current: | 4.5A, 4.06A |
| Output Power (Watts): | 54, 65 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 85% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 7.76oz |

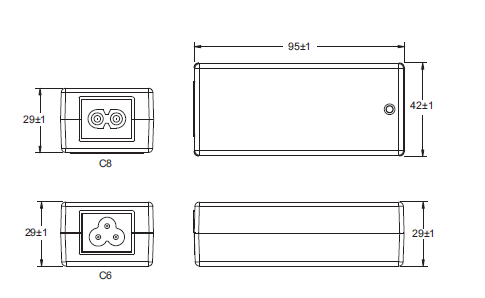

| Dimensions: | 3.74 x 1.65 x 1.14 |
| Notes & safety | |
| Notes: | (1) The number in red represents the type of AC inlet: “2” is for IEC-320-C8 type and “3” is for IEC-320-C6 type. (2) The output voltage is specified as a range (Ex: 15~24VDC); the customer must specify what they want the voltage set at. (3) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. (4) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (5) This product is Listed to applicable standards and requirements by UL. Optional output connectors are available. Please call factory for ordering details. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL 6095 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
