DTEA1030

The DTEA1030 series of AC/DC desktop power supplies offers up to 36 watts of output power in a 3.86” x 1.77” x 1.22” package. This series consists of single output models with a wide input voltage range of 100~240VAC. Each model in this series has RoHS compliance and optional CEC compliance as well as over voltage and short circuit protection. IEC-320-C14, IEC-320-C8, or IEC-320-C6 AC inlets are available. This series has UL/cUL, CB, CE, FCC and CCC safety approvals.

• Single Outputs • Optional CEC Compliance • RoHS Compliant • Short Circuit and Over Voltage Protection • MTBF: > 30,000 Hours • Dimensions: 3.86” x 1.77” x 1.22” • 100~240VAC Input Voltage Range • IEC-320-C14, C8, and C6 AC Inlet Connectors Available • UL/cUL, CB, CE, FCC, and CCC Safety Approvals • Optional Output Connectors Available

Get a Quote Request a Sample Custom Solutions

Models
Specifications

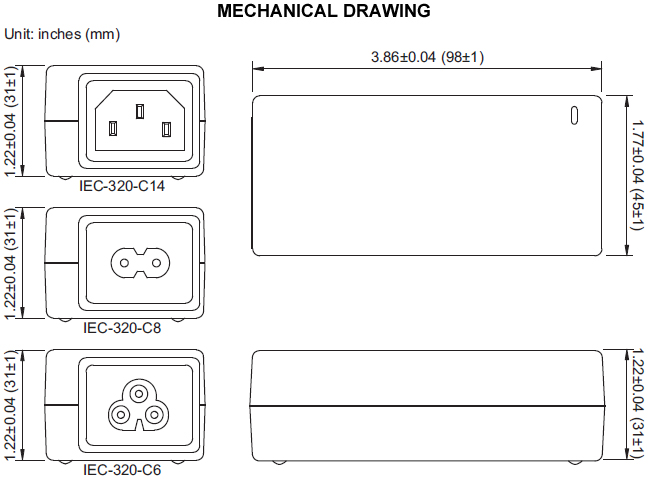

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DTEA1020A1	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 4A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10201	Input Voltage: 100~240	Output Voltage: 9~12	Output Current: 2A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020C1	Input Voltage: 100~240	Output Voltage: 13~20	Output Current: 1.54A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020D1	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 0.95A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020A2	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 4A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10202	Input Voltage: 100~240	Output Voltage: 9~12	Output Current: 2A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020C2	Input Voltage: 100~240	Output Voltage: 13~20	Output Current: 1.54A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020D2	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 0.95A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020A3	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 4A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10203	Input Voltage: 100~240	Output Voltage: 9~12	Output Current: 2A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020C3	Input Voltage: 100~240	Output Voltage: 13~20	Output Current: 1.54A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1020D3	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 0.95A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030A1	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 3.5A	Output Power (W): 25	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030A2	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 3.5A	Output Power (W): 25	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030A3	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 3.5A	Output Power (W): 25	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10301	Input Voltage: 100~240	Output Voltage: 9~12	Output Current: 3A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030C1	Input Voltage: 100~240	Output Voltage: 13~20	Output Current: 2.3A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030D1	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 1.42A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030B2	Input Voltage: 100~240	Output Voltage: 9~12	Output Current: 3A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030C2	Input Voltage: 100~240	Output Voltage: 13~20	Output Current: 2.3A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030D2	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 1.42A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10303	Input Voltage: 100~240	Output Voltage: 9~12	Output Current: 3A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030C3	Input Voltage: 100~240	Output Voltage: 13~20	Output Current: 2.3A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1030D3	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 1.42A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10361	Input Voltage: 100~240	Output Voltage: 12	Output Current: 3A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1036D1	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 1.5A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10362	Input Voltage: 100~240	Output Voltage: 12	Output Current: 3A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1036D2	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 1.5A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA10363	Input Voltage: 100~240	Output Voltage: 12	Output Current: 3A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote
DTEA1036D3	Input Voltage: 100~240	Output Voltage: 21~35	Output Current: 1.5A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.77" x 1.22"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	100~240
Input Frequency:	50/60Hz
Output
Output Voltage:	5~8, 9~12, 12, 13~20, 21~35
Output Current:	1.42A, 1.5A, 950mA, 1.54A, 2.3A, 3A, 2A, 4A, 3.5A
Output Power (Watts):	20, 25, 30, 36
Short Circuit Protection:	Automatic Recovery
Over Voltage Protection:	Automatic Recovery
General
Efficiency:	80%
Environmental
Operating Temperature:	0 to 40°C
Storage Temperature:	-20 to 85°C
Physical
Weight:	7.76oz
Dimensions:	3.86" x 1.77" x 1.22" (89 x 45 x 31 mm)
Notes & safety
Notes:	1. The red suffix represents the type of AC inlet connector: “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, and “3” for IEC-320-C6 type. 2. The output voltage is specified as a range (Ex: 9~12VDC); the customer must specify what they would like the voltage set at. 3. Ripple and Noise is measured at nominal line and full load with 20MHz limited bandwidth and a 0.1µF ceramic and 47µF aluminum capacitors in parallel on the output. 4. Optional output connectors are available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL/cUL, CB, CE, FCC, and CCC
RoHS Compliance:	Yes
Energy Star Compliance:	Level V
