DTEA1024

The DTEA1024 series of AC/DC desktop power supplies provides up to 36 Watts of continuous output power in a 3.94” x 1.77” x 1.22” package. All models have a single output and a wide input voltage range of 100~240VAC. This series is RoHS and DoE compliant and meets CEC Level VI requirements. This series also has UL/cUL, CB, CE, FCC, and CCC safety approvals. All models are protected against short circuit and over voltage conditions. Four AC inlet connector types are available for this series: IEC-320-C14, IEC-320-C8, IEC-320-C6, and IEC-320-C18. Please call factory for ordering details.

• Single Outputs • RoHS & DoE Compliance • UL/cUL, CB, CE, FCC, and CCC Safety Approvals • Short Circuit & Over Voltage Protection • IEC-320-C14, IEC-320-C8, IEC-320-C6, & IEC-320-C18 AC Inlets Available • Meets CEC Level VI (DoE), CoC Tier 2 • 100~240VAC Input Voltage Range • MTBF > 30,000 Hours • Optional Output Connectors Available • High Efficiency >89%

Part Number Setup:
X: “1” for IEC-320-C14 Inlet, “2” for IEC-320-C8 Inlet, “3” for IEC-320-C6 Inlet, or “6” for IEC-320-C18 Inlet

Example:

Get a Quote Request a Sample Custom Solutions

Models
Specifications

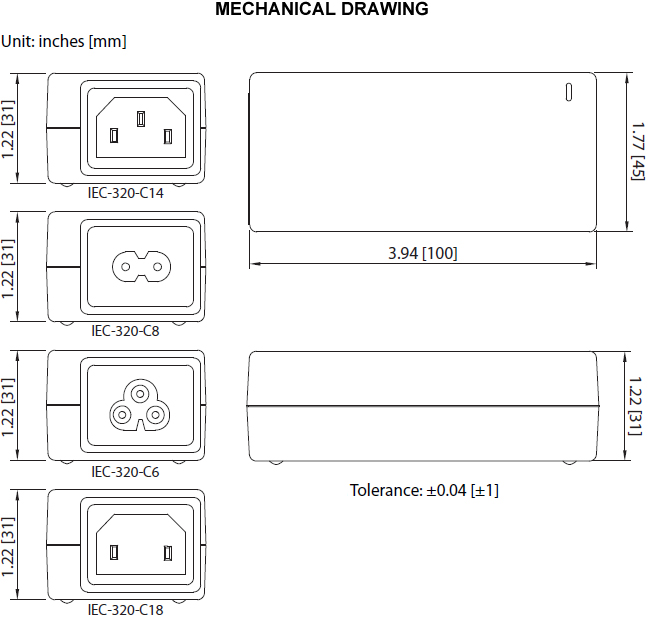

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DTEA1024Ax	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 2.0A	Output Power (W): 16	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Dx	Input Voltage: 100~240	Output Voltage: 9~11	Output Current: 1.5A	Output Power (W): 18	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Bx	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 3.0A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Gx	Input Voltage: 100~240	Output Voltage: 12~17	Output Current: 1.66A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Mx	Input Voltage: 100~240	Output Voltage: 36~48	Output Current: 0.55A	Output Power (W): 20	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Cx	Input Voltage: 100~240	Output Voltage: 5~8	Output Current: 4.0A	Output Power (W): 24	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Ex	Input Voltage: 100~240	Output Voltage: 9~11	Output Current: 2.0A	Output Power (W): 24	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Jx	Input Voltage: 100~240	Output Voltage: 18~24	Output Current: 1.33A	Output Power (W): 24	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Qx	Input Voltage: 100~240	Output Voltage: 12	Output Current: 2.0A	Output Power (W): 24	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Fx	Input Voltage: 100~240	Output Voltage: 9~11	Output Current: 3.0A	Output Power (W): 27	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Hx	Input Voltage: 100~240	Output Voltage: 12~17	Output Current: 2.5A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Kx	Input Voltage: 100~240	Output Voltage: 18~24	Output Current: 1.66A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Nx	Input Voltage: 100~240	Output Voltage: 36~48	Output Current: 0.83A	Output Power (W): 30	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Px	Input Voltage: 100~240	Output Voltage: 12	Output Current: 3.0A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote
DTEA1024Rx	Input Voltage: 100~240	Output Voltage: 24	Output Current: 1.5A	Output Power (W): 36	No. Outputs: S	Case: Desktop	Size: 3.86" x 1.79" x 1.23"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	100~240
Input Frequency:	50/60Hz
Output
Output Voltage:	5~8, 9~11, 12, 12~17, 18~24, 24, 36~48
Output Current:	0.83A, 0.55A, 1.5A, 1.66A, 1.33A, 2.5A, 2.0A, 3.0A, 1.5A, 4.0A
Output Power (Watts):	16, 18, 20, 24, 27, 30, 36
Short Circuit Protection:	Automatic Recovery
Over Voltage Protection:	Automatic Recovery
General
Efficiency:	>89%
Environmental
Operating Temperature:	0 to 40°C
Storage Temperature:	-20 to 85°C
Physical
Weight:	7.05 oz.
Dimensions:	3.86" x 1.79" x 1.23" (98 x 45.5 x 31.2 mm)
Notes & safety
Notes:	1. The “x” in the model number represents the type of AC inlet connector: “x” can be “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, “3” for IEC-320-C6, or “6” for IEC-320-C18 type. 2. The output voltage is specified as a range (Ex: 36~48 VDC); the customer must specify what they want the voltage set at. 3. Line Regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel across the output. 5. LED according to customer needs. 6. Optional output connectors are available. Please call factory for ordering details. 7. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL/cUL, CB, CE, FCC, CCC
RoHS Compliance:	Yes
Energy Star Compliance:	Level VI
