DTCGSW60

The DTCGSW60 series of class II AC/DC desktop power supplies provides up to 60 Watts of output power in a 4.72” x 2.00” x 1.34” package. This series consists of single output models ranging from 5V to 36VDC with a 100~240VAC input voltage range. These supplies are RoHS compliant and are protected against over voltage, over current, and short circuit conditions. The DTCGSW60 series is CEC and Energy Star Level V compliant and has UL/cUL, FCC, CE, GS, SAA, C-Tick, CB, and EUP safety approvals. IEC-320-C14, IEC-320-C8, and IEC-320-C6 AC inlet types are available for this series.

• Class II • RoHS Compliant • 40~60 Watts Output Power • Single Outputs • Very Low Standby Power • MTBF: 50,000 Hours • 100-240VAC Input Voltage Range • CEC / Energy Star Level V Compliant • Output Voltage, Over Current, & Short Circuit Protection • IEC-320-C14, IEC-320-C8 & IEC-320-C6 AC Inlets Available • Several Output Connector Options Available • UL/cUL, FCC, CE, GS, SAA, C-Tick, CB, & EUP Safety Approvals
Part Number Setup:
x: "A" for IEC-320-C14 AC Inlet, "B" for IEC-320-C8 AC Inlet, or "C" for IEC-320-C6 AC Inlet
Example:
DTCGSW4005B=5VDC Model with IEC-320-C8 AC Inlet
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTCGSW4005x Input Voltage: 100~240 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW5409x Input Voltage: 100~240 Output Voltage: 9 Output Current: 6A Output Power (W): 54 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW5436x Input Voltage: 100~240 Output Voltage: 36 Output Current: 1.5A Output Power (W): 54 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW5614x Input Voltage: 100~240 Output Voltage: 14 Output Current: 4A Output Power (W): 56 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW5675x Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 7.5A Output Power (W): 56.3 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW5719x Input Voltage: 100~240 Output Voltage: 19 Output Current: 3A Output Power (W): 57 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW6012x Input Voltage: 100~240 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW6015x Input Voltage: 100~240 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
DTCGSW6024x Input Voltage: 100~240 Output Voltage: 24 Output Current: 2.5A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 4.72" x 2" x 1.34" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47 - 63Hz
Output
Output Voltage: 5, 7.5, 9, 12, 14, 15, 19, 24, 36
Output Current: 1.5A, 2.5A, 3A, 4A5A, 6A, 7.5A, 8A
Output Power (Watts): 40, 54, 56, 56.3, 57, 60
Short Circuit Protection: Output Shutdown; Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Isolation: 1500VAC
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 60°C
Physical
Weight: 9.3oz

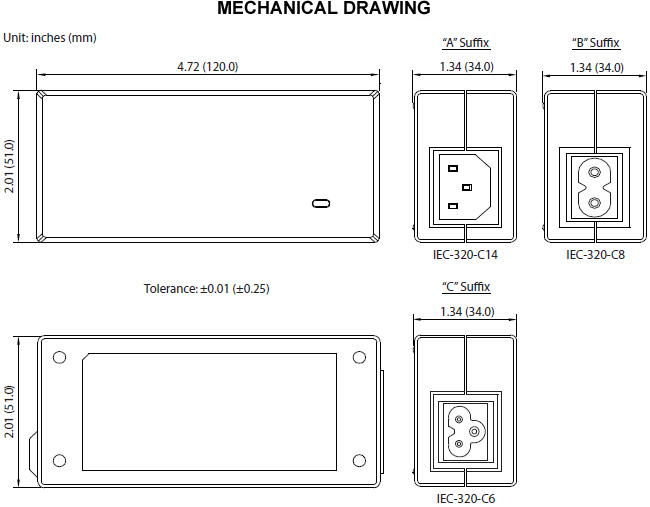

Dimensions: 4.72 x 2.00 x 1.34 (120.0 x 51 x 34mm)
Notes & safety
Notes: NOTES

1. Ripple and noise is measured at 20MHz limited bandwidth with 0.1µF ceramic and 10µF electrolytic capacitors across the output
2. Several output connector options available. Please call factory for ordering details.
3. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, FCC, CE, GS, SAA, C-Tick, CB, EUP
RoHS Compliance: Yes
Energy Star Compliance: Level V

Get a Quote
