DTAM065B

The DTAM065B series of AC DC desktop switching adapters provides up to 65 watts of output power. This series consists of single output models with output voltages ranging from 5V to 48V and wide input voltage range of 90-264VAC. Models above 5V are Efficiency Level VI compliant and all models in the series are RoHS compliant. The DTAM065B series has protection against short circuit, over load, over voltage, and over temperature conditions as well as a high efficiency greater than 88%. Each model has medical 60601-1 3.1 edition MOPP, UL60601-1 3.1 Edition, CSA-C22.2 No.60601-1 3rd Edition, EN60601-1 3.1 Edition, IEC EN60601-1 3.1 Edition, and IEC 60601-1-11 1st edition safety approvals.

• RoHS Compliant • DOE Level VI Efficiency Requirements (Except 5V Models) • Wide Input Voltage Range of 90-264VAC • 2-Prong IEC320-C8 AC Inlet, Class II • Medical 60601-1 3.1 Edition MOPP Approval • IP22 Level Design • High Efficiency of >88% • Short Circuit, Over Load, Over Voltage, and Over Temperature Protection • UL60601-1 3.1 Edition, CSA-C22.2 No.60601-1 3rd Edition, EN60601-1 3.1 Edition, IEC EN60601-1 3.1 Edition, and IEC 60601-1-11 1st Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTAM040B-1Y050 Input Voltage: 90~264 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Desktop Size: 4.17" 2.36" x 1.22" Get a Quote
DTAM060B-1Y120 Input Voltage: 90~264 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 4.17" 2.36" x 1.22" Get a Quote
DTAM060B-1Y150 Input Voltage: 90~264 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 4.17" 2.36" x 1.22" Get a Quote
DTAM065B-1Y190 Input Voltage: 90~264 Output Voltage: 19 Output Current: 3.42A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 4.17" 2.36" x 1.22" Get a Quote
DTAM065B-1Y240 Input Voltage: 90~264 Output Voltage: 24 Output Current: 2.70A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 4.17" 2.36" x 1.22" Get a Quote
DTAM065B-1Y280 Input Voltage: 90~264 Output Voltage: 28 Output Current: 2.32A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 4.17" 2.36" x 1.22" Get a Quote
DTAM065B-1Y480 Input Voltage: 90~264 Output Voltage: 48 Output Current: 1.35A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 4.17" 2.36" x 1.22" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 12, 15, 19, 24, 28, 48
Output Current: 8A, 5A, 4A, 3.42A, 2.70A, 2.32A, 1.35A
Output Power (Watts): 40, 60, 65
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Shutdown and Latch off, AC Recycle
Thermal Protection: Shutdown and Latch Off, AC Recycle (Optional)
General
Efficiency: 88%
Environmental
Operating Temperature: 0 to 60°C
Storage Temperature: -20 to 85°C
Physical
Weight: 8.47oz

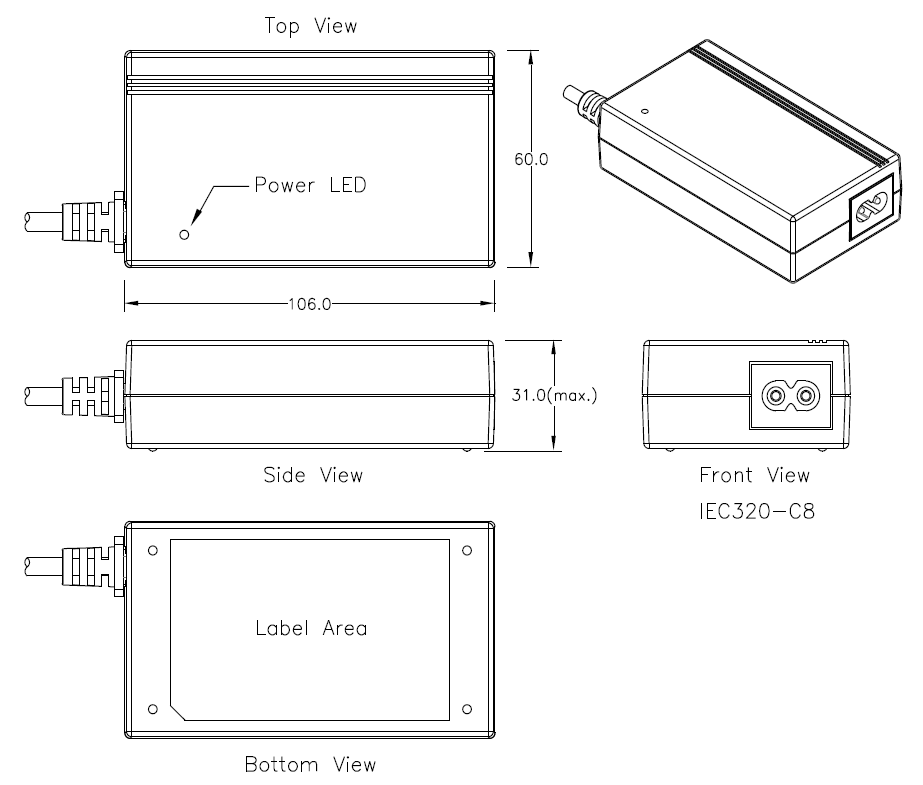

Dimensions: 4.17" 2.36" x 1.22"
Notes & safety
Notes: (1) Ripple & Noise are measured at oscilloscope 20MHz bandwidth by a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector.
(2) This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL60601-1 3.1 Edition, CSA-C22.2 No. 60601-1 3.1 Edition, EN60601-1 3.1 Edition, IEC EN60601-1 3.1 Edition, IEC 60601-1-11 1st Edition
RoHS Compliance: Yes
Energy Star Compliance: Level V, VI
