DTA65A2

The DTA65A2 series of AC DC desktop power supplies provides up to 65 watts of output power in a 4.25″ x 1.87″ x 1.18″ package. This series offers single output models ranging from 5V to 48V with an input voltage range of 90-264VAC. All models are RoHS compliant, and models above 5V are Energy Level VI compliant.This series has a high efficiency of at least 89% as well as over load, short circuit, and over load protection. The DTA65A2 series has UL 60950-1, CSA C22.2-No. 60950-1, TUV EN60950-1, and CB IEC 60950-1 safety approvals. Two AC inlets are available: 3-Pole IEC320-C6 and 2-Pole IEC320-C8. Please call factory for order details.

• 2-Pin IEC320-C8 and 3-Pin IEC320-C6 AC Inlets Available • Meets Energy Efficiency Level VI (excluding 5V models) & CoC V5 Tier 2 requirements • Power On LED Indicator • High Efficiency of >89% • Over Load, Short Circuit, and Over Load Protection • Meets UL 60950-1, CSA C22.2-No.60950-1, TUV EN60950-1, and CB IEC 60950-1 Safety Approvals • Plastic, Black Case
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTA-040A2-1Y05F1 Input Voltage: 90~264 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTA-040A2-1Y05F2 Input Voltage: 90~264 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTA-060A2-1Y12F1 Input Voltage: 90~264 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Desktop Get a Quote
DTA-060A2-1Y12F2 Input Voltage: 90~264 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Desktop Get a Quote
DTA-060A2-1Y15F1 Input Voltage: 90~264 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Desktop Get a Quote
DTA-060A2-1Y15F2 Input Voltage: 90~264 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y19F1 Input Voltage: 90~264 Output Voltage: 19 Output Current: 3.42A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y19F2 Input Voltage: 90~264 Output Voltage: 19 Output Current: 3.42A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y24F1 Input Voltage: 90~264 Output Voltage: 24 Output Current: 2.71A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y24F2 Input Voltage: 90~264 Output Voltage: 24 Output Current: 2.71A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y28F1 Input Voltage: 90~264 Output Voltage: 28 Output Current: 2.32A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y28F2 Input Voltage: 90~264 Output Voltage: 28 Output Current: 2.32A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y48F1 Input Voltage: 90~264 Output Voltage: 48 Output Current: 1.35A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
DTA-065A2-1Y48F2 Input Voltage: 90~264 Output Voltage: 48 Output Current: 1.35A Output Power (W): 65 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 12, 15, 19, 24, 28, 48
Output Current: 8A, 5A, 4A, 3.42A, 2.71A, 2.32A, 1.35A
Output Power (Watts): 40, 60, 65
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Off
General
Efficiency: 89%
Environmental
Operating Temperature: 0 to 60°C
Storage Temperature: -20 to 85°C
Physical
Weight: 8.29oz

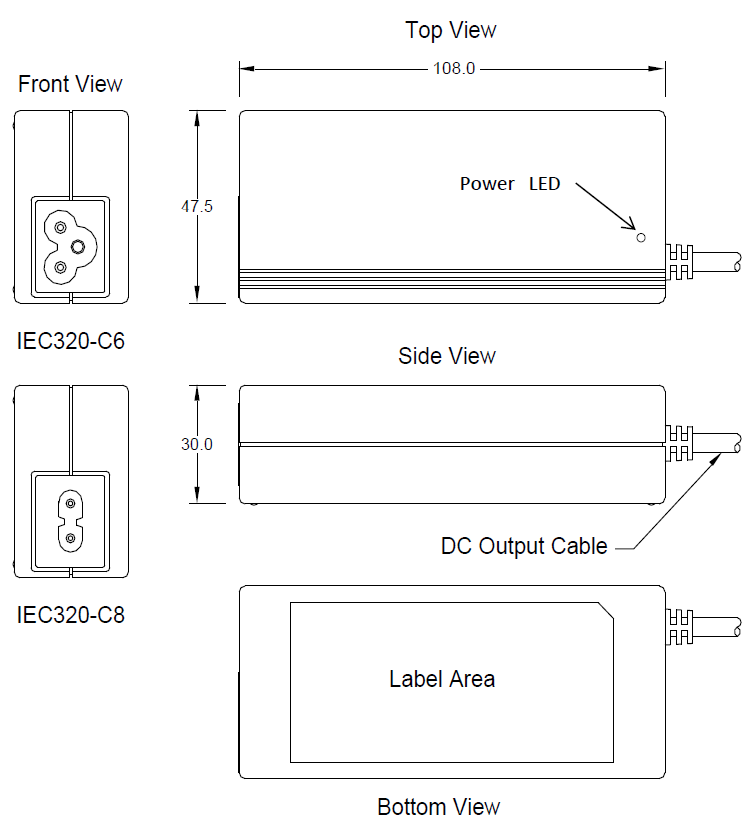

Dimensions: 4.25" x 1.87" x 1.18"
Case Material: Plastic
Notes & safety
Notes: (1) Number at the end of the model name represents the optional AC Inlet.1=IEC 320-C8 (2 Pin) or 2= IEC 320-C6 (3 Pin)
(2) Ripple and noise are measured at oscilloscope 20MHz bandwidth by a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL 60950-1, CSA C22.2-No. 60950-1, TUV EN60950-1, CB IEC60950-1
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950-1
Energy Star Compliance: Level V, VI
