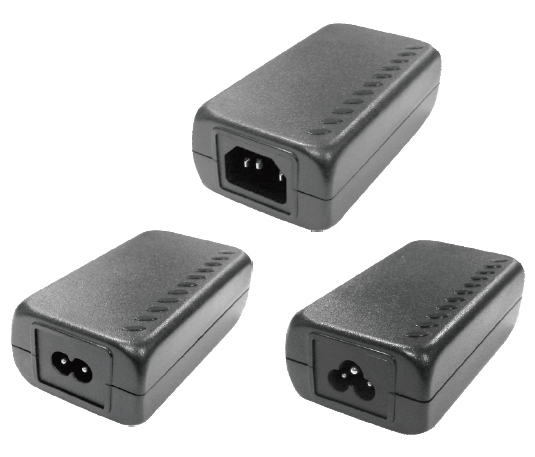

DTA2 65 Product Image
Download Data Sheet

DTA2-65

The DTA2-65 series of AC/DC desktop power supplies offers up to 65 watts of output power in a 3.94” x 2.20” x 1.30” package. This series consists of single output models with a universal input voltage range and high efficiency. Different options are available for this series including either IEC-320-C14, IEC-320-C8, and IEC-320-C6 input inlets and different optional output connectors. Each model in this series meets EIS 2007/DoE (VI) and EU ErP/CoC (5) and each has over voltage, over current, and short circuit protection. This series has UL60950-1: CSA C22.2 and EN60950-1 safety approvals. Please call factory for order details.

• Universal Input Voltage Range • Single Output Models • Optional Output Connectors Available • IEC-320-C14, IEC-320-C8, and IEC-320-C6 Input Inlets Available • Meets EISA 2007/DoE (VI) & EU ErP/CoC (5) • Over Voltage, Over Current, and Short Circuit Protection • High Efficiency • UL60950-1; CSA C22.2 and EN60905-1 Safety Approvals
Part Number Setup:
X: “A” for IEC-320-C14 Inlet, “B” for IEC-320-C8 Inlet, or “C” for IEC-320-C6 Inlet
Example:
DTA2-60S12B = 12V Output Model with IEC-320-C8 Inlet
Get a Quote Request a Sample Custom Solutions
Model
Number		 Input
Voltage		 Output
Voltage		 Output
Current		 Output
Power (W)		 No.
Outputs		 Case Size
DTA2-60S12X Input Voltage: 100~240 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S125X Input Voltage: 100~240 Output Voltage: 12.5 Output Current: 4.80A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S13X Input Voltage: 100~240 Output Voltage: 13 Output Current: 4.61A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S135X Input Voltage: 100~240 Output Voltage: 13.5 Output Current: 4.44A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S14X Input Voltage: 100~240 Output Voltage: 14 Output Current: 4.28A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S145X Input Voltage: 100~240 Output Voltage: 14.5 Output Current: 4.13A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S15X Input Voltage: 100~240 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S155X Input Voltage: 100~240 Output Voltage: 15.5 Output Current: 3.87A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S16X Input Voltage: 100~240 Output Voltage: 16 Output Current: 3.75A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S165X Input Voltage: 100~240 Output Voltage: 16.5 Output Current: 3.63A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S17X Input Voltage: 100~240 Output Voltage: 17 Output Current: 3.52A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S18X Input Voltage: 100~240 Output Voltage: 18 Output Current: 3.33A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S185X Input Voltage: 100~240 Output Voltage: 18.5 Output Current: 3.24A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S19X Input Voltage: 100~240 Output Voltage: 19 Output Current: 3.15A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S195X Input Voltage: 100~240 Output Voltage: 19.5 Output Current: 3.07A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S20X Input Voltage: 100~240 Output Voltage: 20 Output Current: 3A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S205X Input Voltage: 100~240 Output Voltage: 20.5 Output Current: 2.92A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S21X Input Voltage: 100~240 Output Voltage: 21 Output Current: 2.85A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S215X Input Voltage: 100~240 Output Voltage: 21.5 Output Current: 2.79A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S22X Input Voltage: 100~240 Output Voltage: 22 Output Current: 2.72A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S225X Input Voltage: 100~240 Output Voltage: 22.5 Output Current: 2.66A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S23X Input Voltage: 100~240 Output Voltage: 23 Output Current: 2.60A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S235X Input Voltage: 100~240 Output Voltage: 23.5 Output Current: 2.55A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S24X Input Voltage: 100~240 Output Voltage: 24 Output Current: 2.50A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S18X Input Voltage: 100~240 Output Voltage: 18 Output Current: 3.61A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S185X Input Voltage: 100~240 Output Voltage: 18.5 Output Current: 3.51A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S19X Input Voltage: 100~240 Output Voltage: 19 Output Current: 3.42A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S195X Input Voltage: 100~240 Output Voltage: 19.5 Output Current: 3.33A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S20X Input Voltage: 100~240 Output Voltage: 20 Output Current: 3.25A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-60S205X Input Voltage: 100~240 Output Voltage: 20.5 Output Current: 3.17A Output Power (W): 65 No. Outputs: S Case: Desktop Size: Get a Quote
DTA2-65S21X Input Voltage: 100~240 Output Voltage: 21 Output Current: 3.09A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S215X Input Voltage: 100~240 Output Voltage: 21.5 Output Current: 3.02A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S22X Input Voltage: 100~240 Output Voltage: 22 Output Current: 2.95A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S225X Input Voltage: 100~240 Output Voltage: 22.5 Output Current: 2.88A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S23X Input Voltage: 100~240 Output Voltage: 23 Output Current: 2.82A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S235X Input Voltage: 100~240 Output Voltage: 23.5 Output Current: 2.76A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
DTA2-65S24X Input Voltage: 100~240 Output Voltage: 24 Output Current: 2.70A Output Power (W): 65 No. Outputs: S Case: Desktop Size: 3.94" x 2.2" x 1.3" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50 - 60Hz
Output
Output Voltage: 12, 12.5, 13, 13.5, 14, 14.5, 15, 15.5, 16, 16.5, 17, 18, 18.5, 19, 19.5, 20, 20.5, 21, 21.5, 22, 22.5, 23, 23.5, 24
Output Current: 2.50A, 2.55A, 2.60A, 2.66A, 2.70A, 2.72A, 2.76A, 2.79A, 2.82A, 2.85A, 2.88A, 2.92A, 2.95A, 3A, 3.02A, 3.07A, 3.09A, 3.15A, 3.17A, 3.24A, 3.25A, 3.33A, 3.42A, 3.51A, 3.52A, 3.61A, 3.63A, 3.75A, 3.87A, 4A, 4.13A, 4.28A, 4.44A, 4.61A, 4.80A, 5A
Output Power (Watts): 60, 65
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Zener Diode, 110~140%
General
Efficiency: Up to 80%
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 8.82oz (250g)

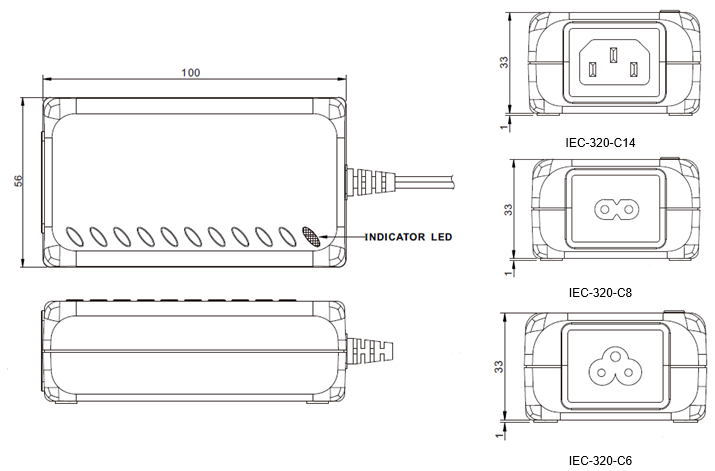

Dimensions: 3.94in x 2.20in x 1.30in (100mm x 56mm x 33mm)
Notes & safety
Notes: 1. “X” in model number represents AC Inlet. “X” can either be “A” for IEC-320-C14, “B” for IEC-320-C8, or “C” for IEC-320-C6.
2. Avg. efficiency: Averages the efficiency at 25, 50, 75, and 100% of max. rated output current.
3. Standard Output Cable: 12~21V: UL2468, 16AWG, 1M
21~24V: UL2468, 18AWG, 1M
4. Optional output connectors are available.
5. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1; CSA C22.2, EN60950-1
Energy Star Compliance: Level VI
