DTA2-50

The DTA2-50 series of AC/DC desktop power supplies offers up to 50 watts of output power in a 3.94” x 2.20” x 1.30” package. This series consists of single output models with a universal input voltage range of 100~240VAC. Each model in this series has optional input inlets as well as over voltage, over current, and short circuit and each model is DoE(VI) and CoC (5) complaint. This series has UL60905-1; CSA C22.2 and EN6095-1 safety approvals.

• Universal Input Voltage • Single Output • Optional Output Connectors Available • IEC-320-C14, IEC-320-C8, or IEC-320-C6 Optional Input Inlets • Over Voltage, Over Current, and Short Circuit Protection • Meets EISA 2007/DoE (VI) & EU ErP/CoC (5) Approvals • UL60905-1; CSA C22.2 and EN60905-1 Safety Approvals

Part Number Setup:
X: “A” for IEC-320-C14 Inlet, “B” for IEC-320-C8 Inlet, or “C” for IEC-320-C6 Inlet

Example:
DTA2-50S12C = 12V Output Model with IEC-320-C6 Inlet

Get a Quote Request a Sample Custom Solutions

Models
Specifications

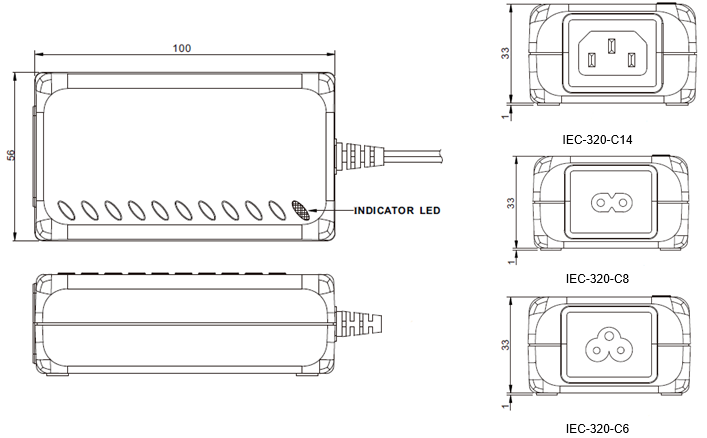

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DTA2-50S12X	Input Voltage: 100~240	Output Voltage: 12	Output Current: 4.16A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S125X	Input Voltage: 100~240	Output Voltage: 12.5	Output Current: 4A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S13X	Input Voltage: 100~240	Output Voltage: 13	Output Current: 3.84A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S135X	Input Voltage: 100~240	Output Voltage: 13.5	Output Current: 3.70A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S14X	Input Voltage: 100~240	Output Voltage: 14	Output Current: 3.57A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S145X	Input Voltage: 100~240	Output Voltage: 14.5	Output Current: 3.44A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S15X	Input Voltage: 100~240	Output Voltage: 15	Output Current: 3.33A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S155X	Input Voltage: 100~240	Output Voltage: 15.5	Output Current: 3.22A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S16X	Input Voltage: 100~240	Output Voltage: 16	Output Current: 3.12A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S165X	Input Voltage: 100~240	Output Voltage: 16.5	Output Current: 3.03A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S17X	Input Voltage: 100~240	Output Voltage: 17	Output Current: 2.94A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S18X	Input Voltage: 100~240	Output Voltage: 18	Output Current: 2.77A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S185X	Input Voltage: 100~240	Output Voltage: 18.5	Output Current: 2.70A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S19X	Input Voltage: 100~240	Output Voltage: 19	Output Current: 2.63A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S195X	Input Voltage: 100~240	Output Voltage: 19.5	Output Current: 2.56A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S20X	Input Voltage: 100~240	Output Voltage: 20	Output Current: 2.50A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S205X	Input Voltage: 100~240	Output Voltage: 20.5	Output Current: 2.43A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S21X	Input Voltage: 100~240	Output Voltage: 21	Output Current: 2.38A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S215X	Input Voltage: 100~240	Output Voltage: 21.5	Output Current: 2.32A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S22X	Input Voltage: 100~240	Output Voltage: 22	Output Current: 2.27A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S225X	Input Voltage: 100~240	Output Voltage: 22.5	Output Current: 2.22A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S23X	Input Voltage: 100~240	Output Voltage: 23	Output Current: 2.17A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S235X	Input Voltage: 100~240	Output Voltage: 23.5	Output Current: 2.12A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote
DTA2-50S24X	Input Voltage: 100~240	Output Voltage: 24	Output Current: 2.08A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 3.94" x 2.2" x 1.3"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	100~240
Input Frequency:	50 to 60Hz
Output
Output Voltage:	12, 12.5, 13, 13.5, 14, 14.5, 15, 15.5, 16, 16.5, 17, 18, 18.5, 19, 19.5, 20, 20.5, 21, 21.5, 22, 22.5, 23, 23.5, 24
Output Current:	2.08A, 2.12A, 2.17A, 2.22A, 2.27A, 2.32A, 2.38A, 2.43A, 2.50A, 2.56A, 2.63A, 2.70A, 2.77A, 2.9A, 3.03A, 3.12A, 3.22A, 3.33A, 3.44A, 3.57A, 3.70A, 3.84A, 4.00A. 4.16A
Output Power (Watts):	50
Short Circuit Protection:	Hiccup Mode, Automatic Recovery
Over Voltage Protection:	Protected by Zener Diode, 110~140%
General
Efficiency:	89%
Environmental
Operating Temperature:	0 to 40ºC
Storage Temperature:	-40 to 85ºC
Physical
Weight:	8.82oz (250g)
Dimensions:	3.94in x 2.20in x 1.30in (100mm x 56mm x 33mm)
Notes & safety
Notes:	1. “X” in model number indicates AC inlet. “X” can either be “A” for IEC-320-C14, “B” for IEC-320-C8, or “C” for IEC-320-C6. 2. Avg. efficiency at 25, 50, 75, and 100% of max. rated output current. 3. Standard Output Cable: 12~21V: UL2468, 16AWG, 1M 21~24V: UL2468, 18AWG, 1M 4. Optional output connectors available. 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL60950-1; CSA C22.2, EN60950-1
