DTA-100
The DTA-100 series consists of grounded, single phase, switching adapters with output power up to 100W. This series has single output models with a 90~264VAC auto range input, and an IEC-320-C14 AC inlet connector. These supplies are also protected against over load, over voltage, and short circuit conditions. In addition, these supplies comply with worldwide safety requirements, electromagnetic compatibility requirements, and meets EMC requirements for desktop switching adapters. All models are 100% burn-in and Hi-pot tested.
● Single Output
● High Reliability
● 40mm Cooling Fan
● AC Input: IEC-320-C14 Inlet
● Total Power: 80 ~ 100 Watts
● 100% Hi-Pot & Burn-in Tested
● Safety Approvals, EMC Compliance
● Input: 115V / 230 VAC (Auto Range)
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA-080A-1Y05E | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 16 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y06E | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 13.33 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y07E | Input Voltage: 90~264 | Output Voltage: 7 | Output Current: 11.42 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y08E | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 10A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y09E | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 8.8 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y10E | Input Voltage: 90~264 | Output Voltage: 10 | Output Current: 8A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y11E | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 7.72 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y12E | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 6.66 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y13E | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 6.15 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-080A-1Y14E | Input Voltage: 90~264 | Output Voltage: 14 | Output Current: 5.71 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y15E | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 6.66 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y16E | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 6.25 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y17E | Input Voltage: 90~264 | Output Voltage: 17 | Output Current: 5.88 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y18E | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 5.55 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y19E | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 5.26 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y20E | Input Voltage: 90~264 | Output Voltage: 20 | Output Current: 5A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y21E | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 4.76 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y22E | Input Voltage: 90~264 | Output Voltage: 22 | Output Current: 4.54 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y23E | Input Voltage: 90~264 | Output Voltage: 23 | Output Current: 4.34 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y24E | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.16 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y32E | Input Voltage: 90~264 | Output Voltage: 32 | Output Current: 3.13 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y33E | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 3.03 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y36E | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 2.78 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-100A-1Y48E | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.09 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 32, 33, 36, 48 |
| Output Current: | 2.09A, 2.78A, 3.03A, 3.13A, 4.16A, 4.34A, 4.54A, 4.76A, 5A, 5.26A, 5.55A, 5.71A, 5.88A, 6.15A, 6.25A, 6.66A, 7.72A, 8A, 8.3A, 8.8A, 10A, 11.42A, 13.33A, 16A |
| Output Power (Watts): | 80-100 |
| Short Circuit Protection: | Latch, AC recycle |
| Over Voltage Protection: | Latch, AC recycle |
| Thermal Protection: | 40mm cooling fan |
| General | |
| Efficiency: | 70% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -10 to 70°C |
| Physical | |
| Weight: | 12 oz. |

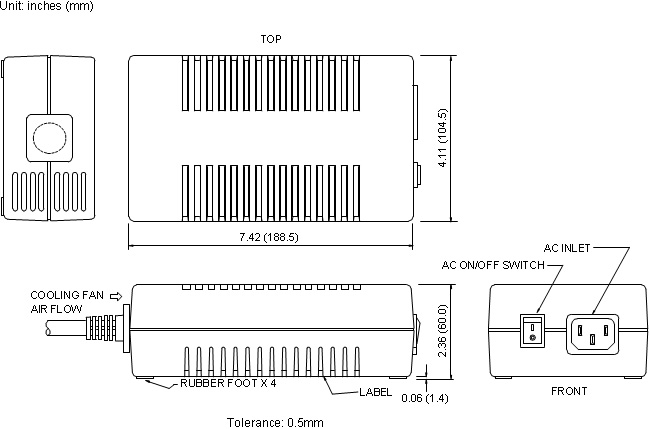

| Dimensions: | 7.42" x 4.11" x 2.36" (188.5 x 104.5 x 60 mm) |
| Notes & safety | |
| Notes: | 1. Ripple and Noise is measured peak–to–peak at 20MHz bandwidth with a tantalum 10uF in parallel with a 0.1µF ceramic capacitor. 2. AC Inlet: IEC-320-C14 standard. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950, CSA C22.2-No.60950-1 , TUV EN60950-1, CB IEC 60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
