DTA-060A
The DTA-060A series of AC DC dekstop power supplies offers up to 60 watts of output power in a single output 90~264VAC input desktop power supply. This series has UL60950-1, TUV EN60950-1-2, IEC 60950-1, and CSA C22.2-No.60950-1 safety approvals. All units are short circuit, over voltage, and over load protected. All models have an IEC-320-C14 AC inlet and output voltages range from 9 to 24VDC. These supplies are RoHS compliant and have been 100% burn-in and Hi-pot tested.
• Up to 60W • Single Output • RoHS Compliant • Output Voltages Available from 9VDC to 24VDC • 100% Burn-In and Hi-Pot Tested • Wide Input Voltage Range: 90~264VAC, 47~63Hz • High Reliability • Over Voltage, Over Load, and Short Circuit Protection • IEC-320-C14 AC Inlet • UL60950-1, TUV EN60950-1, IEC 60950-1, and CSA C22.2-No.60950-1 Safety Approvals
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA-040A-01Y090 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 4.4 A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-040A-01Y120 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 3.3 A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-040A-01Y130 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 3.1 A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-040A-01Y138 | Input Voltage: 90~264 | Output Voltage: 13.8 | Output Current: 2.9 A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y150 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y160 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 3.8 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y170 | Input Voltage: 90~264 | Output Voltage: 17 | Output Current: 3.5 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y180 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 3.4 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y190 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 3.2 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y200 | Input Voltage: 90~264 | Output Voltage: 20 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y210 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 2.9 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y220 | Input Voltage: 90~264 | Output Voltage: 22 | Output Current: 2.7 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y230 | Input Voltage: 90~264 | Output Voltage: 23 | Output Current: 2.6 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y240 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.5 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-060A-01Y140 | Input Voltage: 90~264 | Output Voltage: 14 | Output Current: 4.2 A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 9, 12, 13, 13.8, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 |
| Output Current: | 2.5A, 2.6A, 2.7A, 2.9A, 3A, 3.2A, 3.4A, 3.5A, 3.8A, 4A, 4.2A |
| Output Power (Watts): | 40, 60 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | 75% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -10 to 70°C |
| Physical | |
| Weight: | 11.3 oz. |

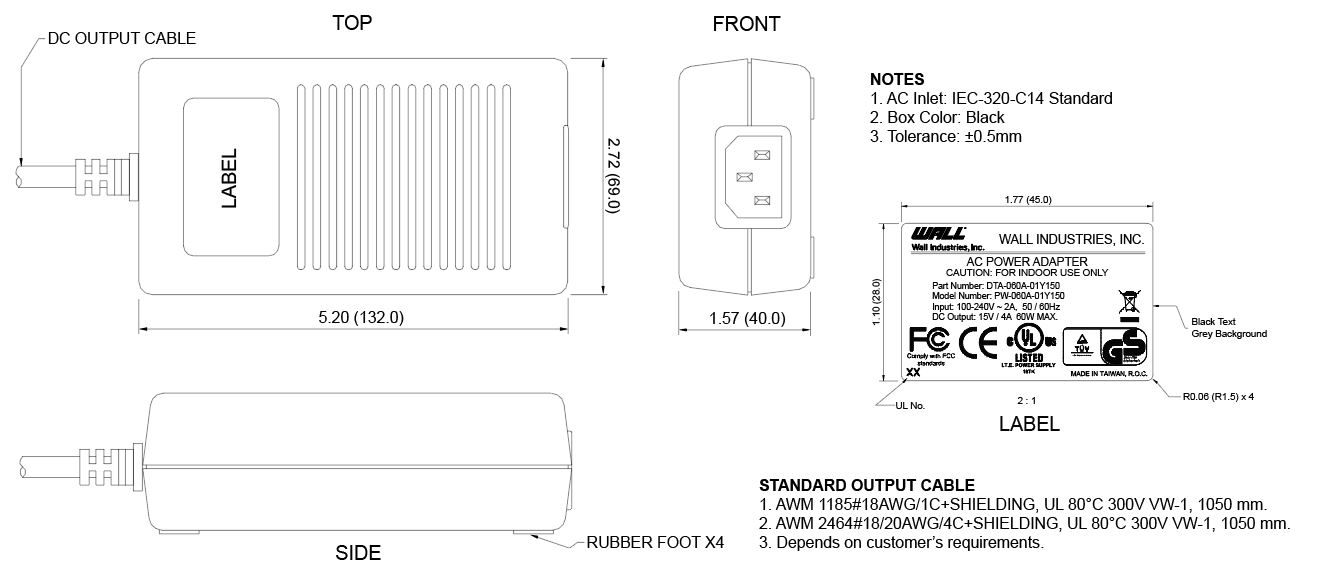

| Dimensions: | 5.2" x 2.72" x 1.57" (132 x 69 x 40 mm) |
| Notes & safety | |
| Notes: | 1. Ripple and Noise is measured at 20MHz bandwidth with a tantalum 10µF in parallel with a 0.1µF ceramic capacitor. 2. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, TUV EN60950-1, IEC 60950-1, CSA C22.2-No.60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
