PSSNP-G12

The PSSNP-G12 series of AC DC open frame power supplies offers up to 200 watts of output power in a 4” x 2” x 1.28” frame. This series consists of single output models with a wide input voltage range of 90~264VAC and output voltages available ranging from 12V~48V. Each model of this series is protected against over load, over voltage, and short circuit protection and are Energy Star Level VI compliant. This series also has UL/CSA/EN60950-1 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3.1 Edition safety approvals.

• Designed for BF application • Safety Class II • 12V output for fan • High mechanical torque start-up • UL/CSA/EN60950-1 2nd Edition, ANSI/AMMI/CSA/EN60601-1 3.1 Edition Safety Approvals • Convention cooling for rated load • Forced air for max. load • Wide input voltage 90~264VAC • Over load, Over Voltage, and Short Circuit Protection • Energy star Level VI • High Operating Altitude

Get a Quote Custom Solutions

Models
Specifications

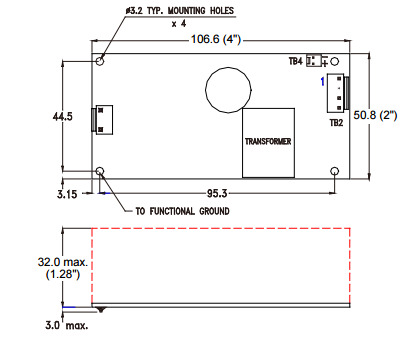

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSSNP-G127	Input Voltage: 90~264	Output Voltage: 12	Output Current: 10A~16.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G127-A	Input Voltage: 90~264	Output Voltage: 12	Output Current: 10A~16.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G127-M	Input Voltage: 90~264	Output Voltage: 12	Output Current: 10A~16.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G127-MA	Input Voltage: 90~264	Output Voltage: 12	Output Current: 10A~16.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G128	Input Voltage: 90~264	Output Voltage: 15	Output Current: 8A~13.4A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G128-A	Input Voltage: 90~264	Output Voltage: 15	Output Current: 8A~13.4A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G128-M	Input Voltage: 90~264	Output Voltage: 15	Output Current: 8A~13.4A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G128-MA	Input Voltage: 90~264	Output Voltage: 15	Output Current: 8A~13.4A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G125	Input Voltage: 90~264	Output Voltage: 18	Output Current: 6.6A~11.1A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G125-A	Input Voltage: 90~264	Output Voltage: 18	Output Current: 6.6A~11.1A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G125-M	Input Voltage: 90~264	Output Voltage: 18	Output Current: 6.6A~11.1A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G125-MA	Input Voltage: 90~264	Output Voltage: 18	Output Current: 6.6A~11.1A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G129	Input Voltage: 90~264	Output Voltage: 24	Output Current: 5A~8.3A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G129-A	Input Voltage: 90~264	Output Voltage: 24	Output Current: 5A~8.3A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G129-M	Input Voltage: 90~264	Output Voltage: 24	Output Current: 5A~8.3A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G129-MA	Input Voltage: 90~264	Output Voltage: 24	Output Current: 5A~8.3A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12G	Input Voltage: 90~264	Output Voltage: 28	Output Current: 4.3A~7.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12G-A	Input Voltage: 90~264	Output Voltage: 28	Output Current: 4.3A~7.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12G-M	Input Voltage: 90~264	Output Voltage: 28	Output Current: 4.3A~7.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12G-MA	Input Voltage: 90~264	Output Voltage: 28	Output Current: 4.3A~7.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12J	Input Voltage: 90~264	Output Voltage: 36	Output Current: 3.4A~5.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12J-A	Input Voltage: 90~264	Output Voltage: 36	Output Current: 3.4A~5.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12J-M	Input Voltage: 90~264	Output Voltage: 36	Output Current: 3.4A~5.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12J-MA	Input Voltage: 90~264	Output Voltage: 36	Output Current: 3.4A~5.6A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12T	Input Voltage: 90~264	Output Voltage: 48	Output Current: 2.5A~4.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12T-A	Input Voltage: 90~264	Output Voltage: 48	Output Current: 2.5A~4.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12T-M	Input Voltage: 90~264	Output Voltage: 48	Output Current: 2.5A~4.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote
PSSNP-G12T-MA	Input Voltage: 90~264	Output Voltage: 48	Output Current: 2.5A~4.2A	Output Power (W): 120	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.28"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	90~264
Input Frequency:	47~63Hz
Output
Output Voltage:	12, 15, 18, 24, 28, 36, 48
Voltage Accuracy:	Yes
Output Current:	10~16.6A, 8~13.4A, 6.6~11.1A, 5~8.3A, 4.3~7.2A, 3.4~5.6A, 2.5~4.2A
Output Power (Watts):	120
Short Circuit Protection:	Automatic Recovery
General
Efficiency:	Up to 88%
Environmental
Operating Temperature:	-20 to 70°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	5.64 oz
Dimensions:	4in x 2in x 1.28in
Notes & safety
Notes:	(1) Standby Power Consumption with System: For computers and displays, Energy Star in U.S. and ErP regulation in Europe require the input power should be less than 0.5W at standby mode. (2) Output Load: 120W for convention cooling; 150W for forced air cooling. (3) EMI grounding: If there is a metal sheet under the power supply, connect the EMI ground to the metal sheet. (4) Most power supplies will create audible bust sound at light load, if the application wants to meet input power <0.5W at standby mode. PSSNP-G12x is for ITE application which requires standby mode. PSSNP-G12x-A is for ITE application but without burst sound and no standby mode. PSSNP-G12x-M is for medical application which requires standby mode. PSSNP-G12x-MA is for medical application but without burst sound and no standby mode. (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL/CSA/EN60950-1 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3.1 edition, CB Report, CE Mark, Rm report/file
