DCFBH600-24S28
The DCFHB600-24S28 model of DC/DC converters offers 600 watts of output power in a compact 4.60” x 2.4” x 0.5” full brick package. This is an adjustable single output model with an input voltage range of 18~36VDC. This model also features high efficiency and power density, a metal base plate, remote on/off control, and I.O.G (DC Good). The DCFBH600-24S28 model is protected against over voltage, under voltage, over temperature, current limit, and short circuit conditions and it is useful in centralized modular and distributed power applications.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCFBH600-24S28 | Input Voltage: 24 | Output Voltage: 28 | Output Current: 21.5A | Output Power (W): 600 | No. Outputs: S | Case: Through Hole | Size: 4.59" x 2.4" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24 |
| Input Voltage Range: | 18~36 |
| Output | |
| Output Voltage: | 28 |
| Voltage Accuracy: | 27.72~28.28V |
| Output Current: | 21.5A |
| Output Power (Watts): | 600 |
| Output Trim/Adjustability: | 6~110%Vo, Set |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-135%Vo, set |
| General | |
| Efficiency: | 91% |
| Isolation: | Input to Output: 1500VDC Input to Case: 1500VDC Output to Case: 500VDC |
| Environmental | |
| Operating Temperature: | -40 to +100ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 7.94oz (225g) |

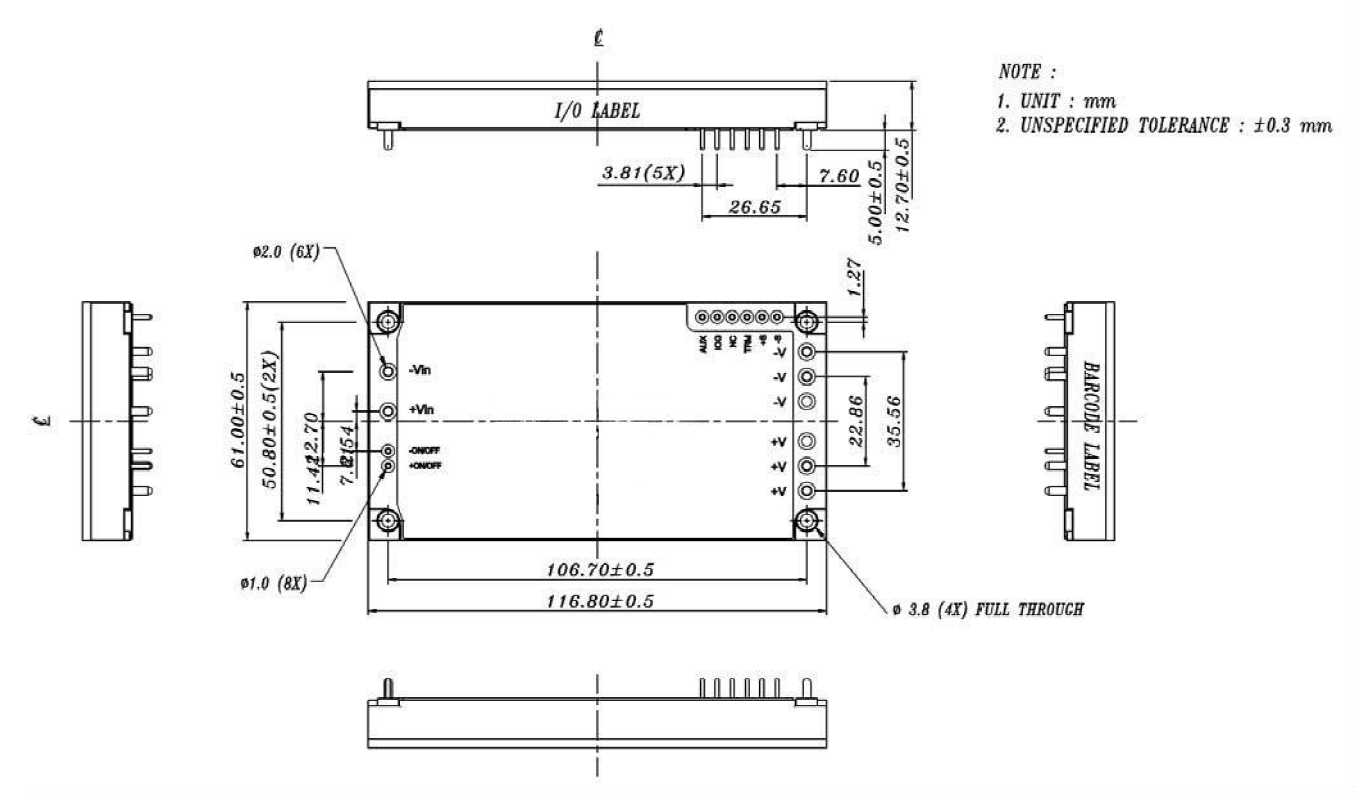

| Dimensions: | 4.59in x 2.4in x 0.5in (116.8mm x 61mm x 12.7mm) |
| Notes & safety | |
| Notes: | NOTES 1. Bandwidth 5Hz-20MHz with filter 0.1uF MLCC series 100 ohm Min. Output capacitor: 220uF*2, Tc ≥ -20ºC, 220uF*4, Tc ≤ -20ºC 2. Temperature measure should be taken from baseplate (Tb). Refer to Baseplate Measure Point drawing for location. *Due to advances in technology, specifications subject to change without notice. |
