PSMQF500
The PSMQF500 series of medical and ITE AC/DC switching power supplies offers 500 watts of output power in a compact open frame, u-chassis, or enclosed with top fan package. This series consists of single output models with a wide input voltage range of 90~264VAC (127~370VDC) and high efficiency. Features of this series include remote ON/OFF, PFC function, as well as over power, over voltage, over temperature, and short circuit protection. This series also has UL/IEC/EN 60601 3.1 Edition (2xMOPP) & UL/IEC/EN 60950 AM2, and UL/IEC/EN 62368 safety approvals. Parallel operation is available for this series, please contact factory for details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMQF500-12SF | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.5A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5.5" x 3.25" x 2.48" | Get a Quote |
| PSMQF500-24SF | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 20.8A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5.5" x 3.25" x 2.48" | Get a Quote |
| PSMQF500-48SF | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.41A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5.5" x 3.25" x 2.48" | Get a Quote |
| PSMQF500-15SF | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 33.3A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5.5" x 3.25" x 2.48" | Get a Quote |
| PSMQF500-12SO | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.5A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 5.03" x 3" x 1.38" | Get a Quote |
| PSMQF500-15SO | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 33.3A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 5.03" x 3" x 1.38" | Get a Quote |
| PSMQF500-24SO | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 20.8A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 5.03" x 3" x 1.38" | Get a Quote |
| PSMQF500-48SO | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.41A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 5.03" x 3" x 1.38" | Get a Quote |
| PSMQF500-12SU | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.5A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 5.5" x 3.25" x 1.66" | Get a Quote |
| PSMQF500-15SU | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 33.3A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 5.5" x 3.25" x 1.66" | Get a Quote |
| PSMQF500-24SU | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 20.8A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 5.5" x 3.25" x 1.66" | Get a Quote |
| PSMQF500-48SU | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.41A | Output Power (W): 500 | No. Outputs: S | Case: U-Chassis | Size: 5.5" x 3.25" x 1.66" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | 0.94 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 10.41A, 20.8A, 33.3A, 41.5A |
| Output Power (Watts): | 500 |
| Short Circuit Protection: | Protection Level 1 (Nominal): Continuous, Automatic Recovery Protection Level 2 (Instantaneous High Current): Latch |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | Input to Output: 4000VAC or 5656VDC Input to PE: 2000VAC Output to PE: 1500VDC |
| Environmental | |
| Operating Temperature: | -30 to +70ºC |
| Storage Temperature: | -35 to +85ºC |
| Physical | |
| Weight: | Open Frame: 16.93oz (480g) U-Chassis: 20.46oz (580g) Enclosed with Top Fan: 24.34oz (690g) |

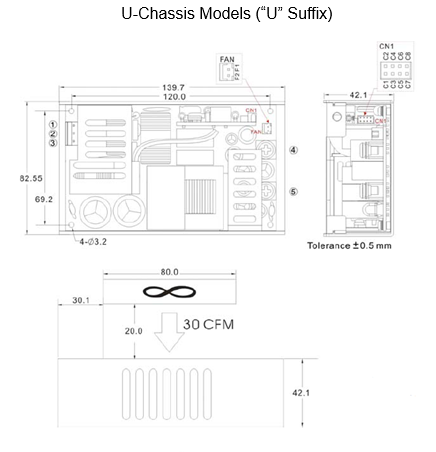

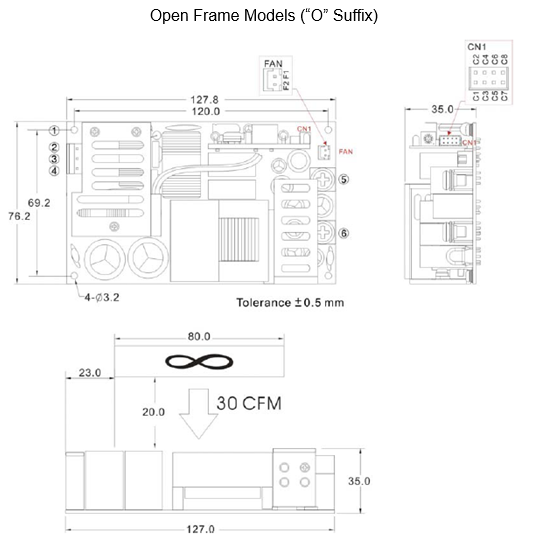

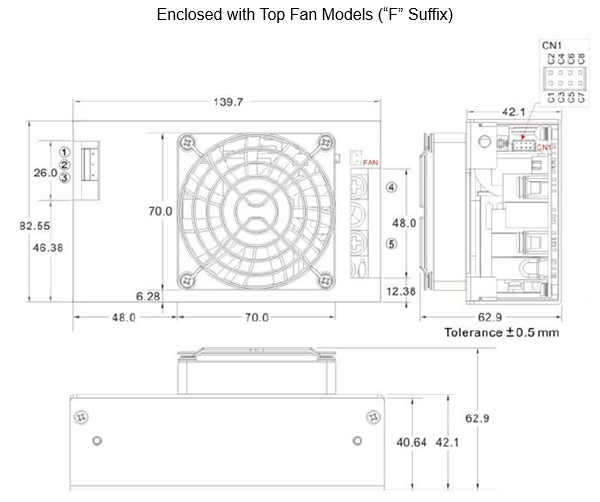

| Dimensions: | Open Frame: 5.03in x 3in x 1.38in (127.8mm x 76.2mm x 35mm) U-Chassis: 5.5in x 3.25in x 1.6in (139.7mm x 82.55mm x 40.6mm) Enclosed with Top Fan: 5.5in x 3.25in x 2.42in (139.7mm x 82.55mm x 61.4mm) |
| Notes & safety | |
| Notes: | 1. Hold-Up Time measured at 90% Vout. 2. Main Vout >3% Load, 12V (Aux)/0.3A., 12V (Aux) need 0.1A Minimum Load, Auxiliary voltage output ground 10.2~13.3V 3. This product is Listed to applicable standards and requirements by UL. 4. CAUTION: Double pole, neutral fusing. Disconnect mains before servicing. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/IEC/EN 60601 3.1 Edition (2xMOPP), UL/IEC/EN 60950 AM2, UL/IEC/EN62368 |
