PSHBU50
The PSHBU50 series of medical AC/DC open frame power supplies offers up to 50 watts of output power in a 4” x 1” x 1.28” package. This series consists of single output models with a wide operating input voltage range of 80-275VAC. Each model in this series has high ESD immunity, cooling by free air convection, and over load and short circuit protection. This series has IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSA C22.2 No. 60601-1:14, and EN60601-1: 2006/A1: 2013 safety approvals.
• Wide Operating Input Voltage Range of 80 to 275VAC
• Single Output
• Support Risk Management Process
• Input to Output: 2MOPP
• RoHS II Compliant
• Over Load and Short Circuit Protection
• High ESD Immunity
• Cooling by Free Air Convection
• IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSA C22.2 No. 60601-1:14, and EN60601-1: 2006/A1: 2013 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHBU50-102 | Input Voltage: 80~275 | Output Voltage: 5~6 | Output Current: 5.83~7A | Output Power (W): 35 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-103 | Input Voltage: 80~275 | Output Voltage: 6.8~8 | Output Current: 5~6.66A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-104 | Input Voltage: 80~275 | Output Voltage: 8~11 | Output Current: 4.09~5.62A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-105 | Input Voltage: 80~275 | Output Voltage: 11~13 | Output Current: 3.84~4.55A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-106 | Input Voltage: 80~275 | Output Voltage: 13~16 | Output Current: 3.13~3.85A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-107 | Input Voltage: 80~275 | Output Voltage: 16~21 | Output Current: 2.38~3.13A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-108 | Input Voltage: 80~275 | Output Voltage: 21~27 | Output Current: 1.85~2.38A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-109 | Input Voltage: 80~275 | Output Voltage: 27~33 | Output Current: 1.51~1.85A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-110 | Input Voltage: 80~275 | Output Voltage: 33~40 | Output Current: 1.25~1.51A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-111 | Input Voltage: 80~275 | Output Voltage: 40~50 | Output Current: 1~1.25A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| PSHBU50-112 | Input Voltage: 80~275 | Output Voltage: 50~59 | Output Current: 0.84~1A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4" x 1" x 1.28" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100/240 |
| Input Voltage Range: | 80~275 |
| Input Frequency: | 47 to 63 |
| Output | |
| Output Voltage: | 5~6, 6.8~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 50~59 |
| Output Current: | 1A, 1.25A, 1.51A, 1.85A, 2.38A, 3.13A, 3.85A, 4.55A, 5.62A, 6.66A, 7A |
| Output Power (Watts): | 35, 40, 45, 50 |
| Short Circuit Protection: | Free Air Convection |
| General | |
| Efficiency: | 88% |
| Environmental | |
| Operating Temperature: | -10 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 2.65oz (75g) |

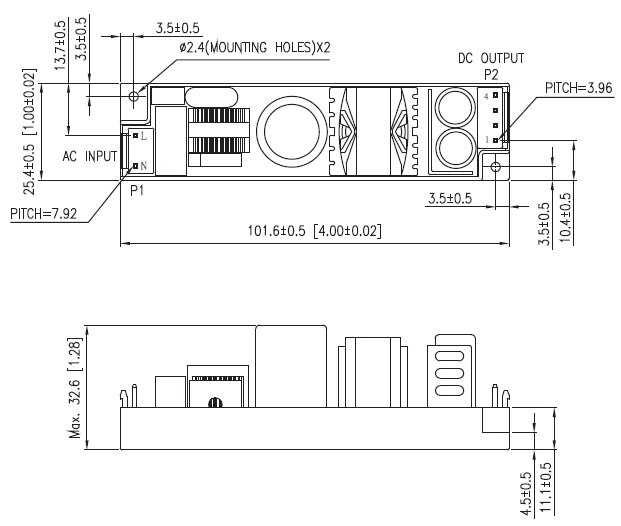

| Dimensions: | 4in x 1in x 1.28in (101.6mm x 25.4mm x 32.6mm) |
| Notes & safety | |
| Notes: | 1. Output can provide up to peak load when the power supply starts up. Staying in more than rated load continually is not allowed. 3. At factory, in 60% rated load condition, each output is checked to be within voltage accuracy. 4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 5. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 6. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. 7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSA C22.2 No.60601-1:14, EN60601-1:2006/A1:2013 |
| RoHS Compliance: | Yes |
