ELANC
The ELANC series of DC/DC power converters provides 6 watts of output power in an industry standard 1.25″ x 0.80″ x 0.40″ package and footprint. This series has single and dual output models with 4:1 input voltage ranges of 9-36VDC and 18-75VDC. Some features include high efficiency, low ripple and noise, and an MTBF > 2,000,000 hours. All models are RoHS compliant and meet IEC/EN60950 and UL60950 safety standards. The ELANC series is the “Economy” version of the LANC series.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| ELANC4833UW5 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1.5A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC4805UW6 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC4812UW6 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 0.5A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC4815UW6 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 0.4A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC1205UW6 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC1205DUW6 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±0.6A | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC1212UW6 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 0.5A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC1212DUW6 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±0.25A | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC1215UW6 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 0.4A | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC1215DUW6 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±0.2A | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC4805DUW6 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±0.6A | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC4812DUW6 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±0.25A | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC4815DUW6 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±0.2A | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| ELANC1233UW6 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 2A | Output Power (W): 6.6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±3.0 |
| Output Current: | 2A, 1.2A, 0.5A, 0.4A, ±0.6A, ±0.25A, ±0.2A |
| Output Power (Watts): | 5, 6, 6.6 |
| General | |
| Efficiency: | Up to 83% |
| Isolation: | Single Output Models: 500VDC for 1 minute Dual Output Models: 1500VDC for 1 minute |
| Environmental | |
| Operating Temperature: | -40°C to +85°C |
| Storage Temperature: | -55°C to +125°C |
| Physical | |
| Weight: | 0.53 oz (15g) |

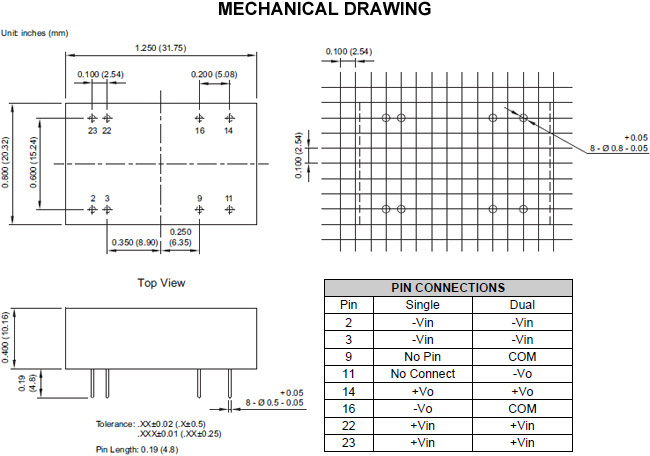

| Dimensions: | 1.25" x 0.8" x 0.4" |
| Notes & safety | |
| Notes: | This series is the economy version of the LANC series. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | EN60950 |
| RoHS Compliance: | Yes |
