RBAX1
The RBAX1 series of DC/DC converters offers 1 watt of power in a very compact 0.5” x 0.44” x 0.29” SMD package. This series consists of isolated and unregulated single output models with fixed input voltage ranges. Features of this series consist of continuous short circuit protection, internal surface mounted design, as well as international standard pin-out. This series is RoHS compliant and is protected against short circuit conditions. Please contact factory for order details.
• Fixed Input Voltage • Isolated & Unregulated Single Outputs • Compact SMD Package • Internal Surface Mounted Design • International Standard Pin-Out • Continuous Short Circuit Protection • No External Component Required • RoHS Compliant
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RBAX1-033S03 | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-033S05 | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-033S09 | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-033S12 | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-033S15 | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-03S24 | Input Voltage: 3.3 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-05S03 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-05S06 | Input Voltage: 5 | Output Voltage: 6 | Output Current: 167mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-12S03 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-12S09 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| RBAX1-15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.44" x 0.29" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 12, 15, 24 |
| Input Voltage Range: | 2.97~3.63, 4.5~5.5, 10.8~13.2, 13.5~16.5, 21.6~26.4 |
| Input Filter: | Filter Capacitor |
| Output | |
| Output Voltage: | 3.3, 5, 6, 9, 12, 15, 24 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 42mA, 67mA, 84mA, 111mA, 200mA, 303mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | 3.3VDC Nominal Input, 24VDC Nominal Input, & RBAX1-05S24 Model: 1S Others: Continuous, Self-Recovery |
| General | |
| Efficiency: | Up to 80% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to +105ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.057oz (1.6g) |

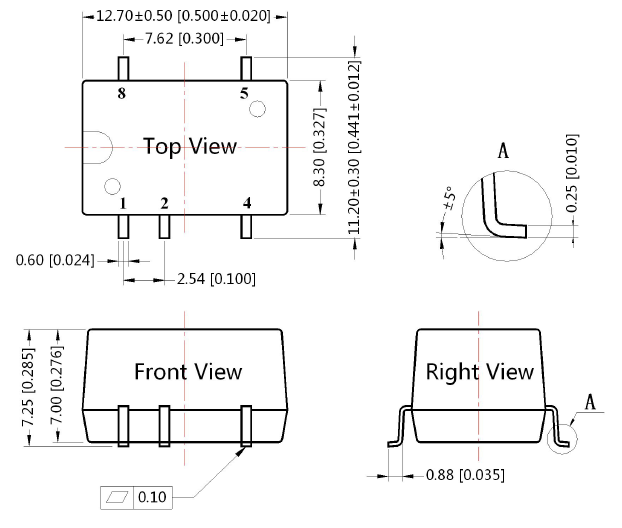

| Dimensions: | 0.50in x 0.44in x 0.29in (12.70mm x 11.20mm x 7.25mm) |
| Notes & safety | |
| Notes: | 1. Ripple and Noise are measured by “parallel cable” method. 2. Supply voltage must be discontinued at end of short circuit duration for 3.3VDC Nominal Input Models, 24VDC Nominal Input Models, & RBAX1-05S24 model. 3. If product is not operated with in required load range, product performance cannot be guaranteed to comply with parameters in data sheet. 4. Customization is available, please contact factory. 5. UL approval can be added to any products not currently listed if required. *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
