DCWIM20

The DCWIM20 series of DC/DC power modules offers 20 watts of output power in a fully encapsulated 3.78” x 2.13” x 0.92” plastic case with chassis or DIN-Rail mounting. This series consists of fully regulated single output models with an ultra-wide 4:1 input voltage range and high efficiency to 91%. Each model has RoHS & REACH compliance, remote On/Off control, and over load, over voltage, and short circuit protection. This series also has UL/cUL/IEC/EN 60950-1 safety approvals and CE markings. Please contact factory for order details.

• Ultra-Wide 4:1 Input Voltage Range • Fully Regulated Output Voltage • Fully Encapsulated Plastic Case for Chassis & DIN-Rail Mounting Version • High Efficiency to 91% • I/O Isolation of 2500VDC • Over Load, Over Voltage, and Short Circuit Protection • Remote On/Off Control • RoHS & REACH Compliant • UL/cUL/IEC/EN 60950-1 Safety Approval & CE Marking
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCWIM20-24S51C Input Voltage: 24 Output Voltage: 5.1 Output Current: 4000mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
DCWIM20-24S12C Input Voltage: 24 Output Voltage: 12 Output Current: 1670mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
DCWIM20-24S24C Input Voltage: 24 Output Voltage: 24 Output Current: 835mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
DCWIM20-24S48C Input Voltage: 24 Output Voltage: 48 Output Current: 420mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
DCWIM20-48S51C Input Voltage: 48 Output Voltage: 5.1 Output Current: 4000mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
DCWIM20-48S12C Input Voltage: 48 Output Voltage: 12 Output Current: 1670mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
DCWIM20-48S24C Input Voltage: 48 Output Voltage: 24 Output Current: 835mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
DCWIM20-48S48C Input Voltage: 48 Output Voltage: 48 Output Current: 420mA Output Power (W): 20 No. Outputs: S Case: Chassis Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 9~36, 18~75
Input Filter: Internal Pi Type
Remote ON/OFF: Yes
UVLO: 24V Input Models: 7.5VDC
48V Input Models: 16VDC
Output
Output Voltage: 5.1, 12, 24, 48
Voltage Accuracy: ±2.0%Vnom
Output Current: 420mA, 835mA, 1670mA, 4000mA
Output Power (Watts): 20
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 120% of Vo
General
Efficiency: Up to 91%
Isolation: 2500VDC
Environmental
Operating Temperature: 12V & 24V Output Models: -40 to +87ºC
5.1V Output Models: -40 to +86ºC
48V Output Models: -40 to +85ºC
Storage Temperature: -50 to +125ºC
Physical
Weight: Chassis Mount: 3.77oz (107g)
DIN Rail: 5.86oz (166g)

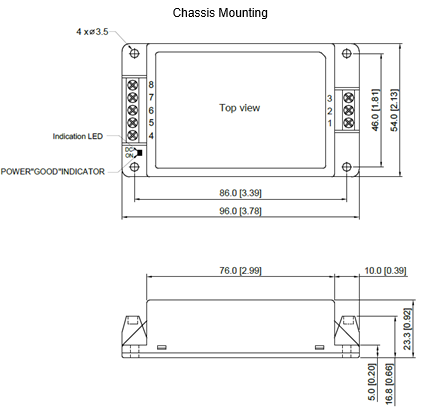

Dimensions: 3.78in x 2.13in x 0.92in (96mm x 54mm x 23.3mm)
Case Material: Plastic Resin
Notes & safety

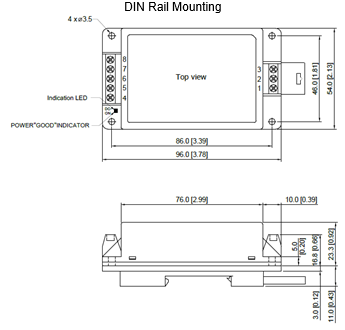

Notes: 1. Din Rail Mounting is available for this series. To indicate Din Rail bracket add –D to model number. Ex. DCWIM20-24S51C-D
2. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%.
3. Natural Convection is about 20LFM but is not equal to still air (0 LFM).
4. It is recommended to protect the converter by a slow blow fuse in the input supply line.
5. Other input and output voltages may be available, please contact factory.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 60950-1 Recognition (UL Certificate), IEC/EN 60950-1 (CB Report)
RoHS Compliance: Yes
