DCRW20
The DCRW20 series of DC/DC converters offers up to 20 watts of output power in a horizontal, chassis mount, or DIN rail mount package. This series consists of isolated and regulated dual outputs with an ultra-wide 4:1 input voltage range. Features of this series include enhanced isolation, high efficiency, low ripple and noise and international standard pin out. This series is also protected against over voltage, over current, and short circuit protection, meets EN50155 railway requirements, is RoHS compliant, and meets IEC60950, UL60950, and EN60950 standards. Reverse voltage protection is available for chassis and DIN rail mount models.
• 4:1 Ultra-Wide Input Voltage Range • Isolated and Regulated Dual Outputs • Enhanced Isolation • RoHS Compliant • High Efficiency • Low Ripple & Noise • International Standard Pin Out • Over Voltage, Over Current, & Short Circuit Protection • Reverse Voltage Protection Available for Chassis and DIN Rail Mount • Meets EN50155 Railway Requirements • Meets IEC60950, UL60950, and EN60950 Standards • Meets EN50121-3-2 CISPR32/EN55032 Class A without External Components
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCRW20-110D12 | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRW20-110D15 | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRW20-110D24 | Input Voltage: 110 | Output Voltage: 24, -24 | Output Current: ±417mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRW20-110D12C | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRW20-110D15C | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRW20-110D24C | Input Voltage: 110 | Output Voltage: 24, -24 | Output Current: ±417mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRW20-110D12D | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRW20-110D15D | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRW20-110D24D | Input Voltage: 110 | Output Voltage: 24, -24 | Output Current: ±417mA | Output Power (W): 20 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 110 |
| Input Voltage Range: | 40~160 |
| Input Filter: | Pi Filter |
| Output | |
| Output Voltage: | -24, -15, -12, 12, 15, 24 |
| Voltage Accuracy: | Positive Output: ±2% Max. Negative Output: ±3% Max. |
| Output Current: | ±417mA, ±667mA, ±833mA |
| Output Power (Watts): | 20 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| Over Voltage Protection: | 110-160 |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | Input-Output, leak current <1ma: 3000vdc Input/Output-Casing, leak current <1ma: 1500vdc Input-Output, leak current <5ma: 1500vac |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | Without Heatsink, Horizontal Package: 0.92oz (26g) Without Heatsink, Chassis Mount: 1.69oz (48g) Without Heatsink, DIN Rail: 2.40oz (68g) With Heatsink, Horizontal Package: 1.20oz (34g) With Heatsink, Chassis Mount: 1.98oz (56g) With Heatsink, DIN Rail: 2.68oz (76g) |

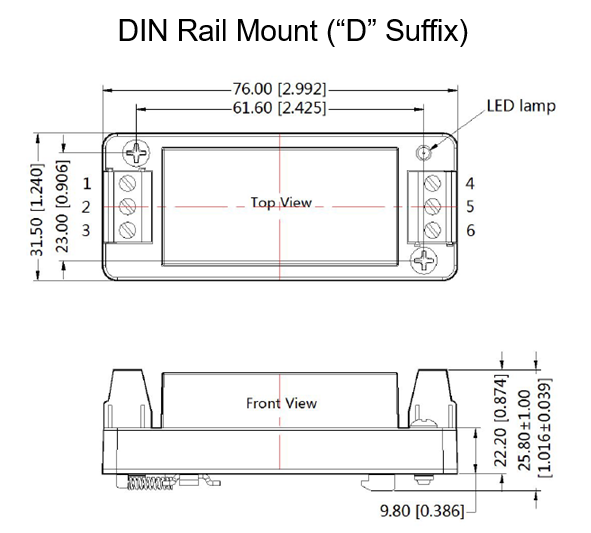

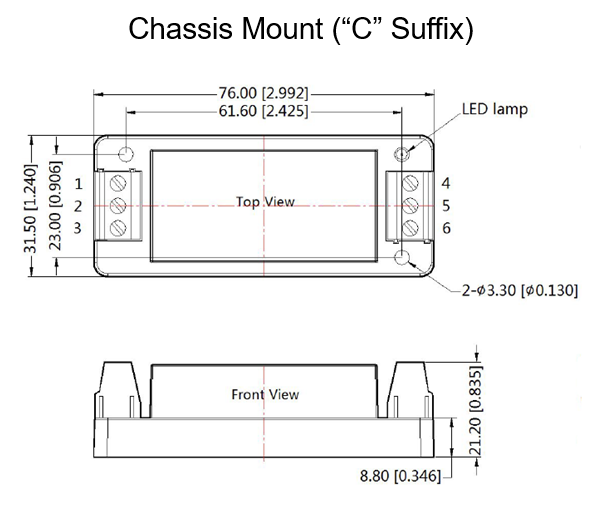

| Dimensions: | Without Heatsink, Horizontal Package: 2in x 1in x 0.47in (50.8mm x 25.4mm x 11.8mm) Without Heatsink, Chassis Mount: 2.99in x 1.24in x 0.84in (76mm x 31.5mm x 21.2mm) Without Heatsink, DIN Rail: 2.99in x 1.24in x 1.02in (76mm x 31.5mm x 25.8mm) With Heatsink, Horizontal Package: 2in x 1in x 0.47in (50.8mm x 25.4mm x 11.8mm) With Heatsink, Chassis Mount: 2.99in x 1.24in x 0.996in (76mm x 31.5mm x 25.3mm) With Heatsink, DIN Rail: 2.99in x 1.24in x 1.18in (76mm x 31.5mm x 29.90mm) |
| Case Material: | Aluminum Alloy |
| Notes & safety | |
| Notes: | 1. Several options are available for this series. Horizontal package is the standard. To indicate a chassis mount option, add “C” to end of model number. To indicate DIN rail mount option, add “D” to end of model number. Heatsink is also available for all models. If application has a higher requirement for heat dissipation, heatsink is recommended. To indicate heatsink, add “H” to end of model number. 2. Due to input reverse polarity protection function, minimum value and starting voltage input voltage range for chassis and DIN rail mount models is higher than 1VDC DIP package. 3. Efficiency is measured in nominal input voltage and rated output load. Due to input reverse polarity protection for chassis and DIN rail mount models, minimum efficiency greater than Min.-2 is qualified. 4. This series of products uses reduced frequency technology, the switching frequency is test value of full load. When the load is reduced to below 50%, the switching frequency decreases with decreasing load. 5. Customization available, please contact factory. 6. Products classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60950, UL60950, EN60950 |
| RoHS Compliance: | Yes |
