DCRUW6
The DCRUW6 series of isolated DC/DC converters offers up to 6 watts of output power in either a through hole, chassis mount, or din rail package. This series consists of single and dual output models with an ultra-wide 4:1 input voltage range. Each model in this series features low ripple and noise, high efficiency, as well as short circuit, over voltage, and over current protection. This series meets railway standard EN50155, has EN60950 approval, and is RoHS compliant. Please contact factory for ordering information.

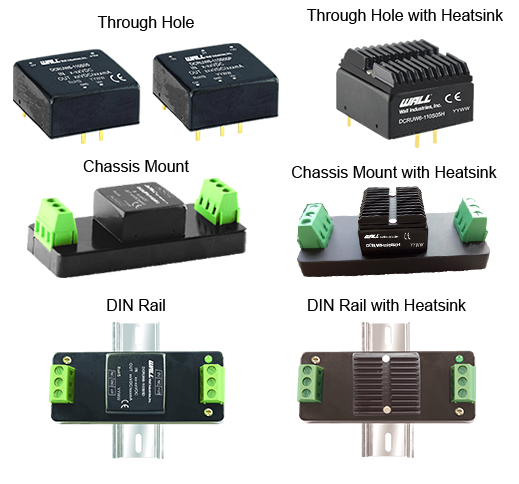

• Ultra-Wide 4:1 Input Voltage Range • High Efficiency • Low Ripple & Noise • Through Hole, Chassis Mount, Or DIN Rail Mount Available • Reverse Voltage Protection Available with Chassis Mount or DIN Rail Mount • Short Circuit, Over Voltage, and Over Current Protection • International Standard Pin-Out • Heatsink Available • RoHS Compliant • Meets Requirements of Railway Standard EN50155 • EN60950 Approval
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCRUW6-110S05 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.46" | Get a Quote |
| DCRUW6-110S12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.46" | Get a Quote |
| DCRUW6-110S15 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.46" | Get a Quote |
| DCRUW6-110S24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.46" | Get a Quote |
| DCRUW6-110D05 | Input Voltage: 110 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.46" | Get a Quote |
| DCRUW6-110D12 | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.46" | Get a Quote |
| DCRUW6-110D15 | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.46" | Get a Quote |
| DCRUW6-110S05C | Input Voltage: 110 | Output Voltage: 5 | Output Current: 1200 | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRUW6-110S12C | Input Voltage: 110 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRUW6-110S15C | Input Voltage: 110 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRUW6-110S24C | Input Voltage: 110 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRUW6-110D05C | Input Voltage: 110 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRUW6-110D12C | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRUW6-110D15C | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| DCRUW6-110S05D | Input Voltage: 110 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRUW6-110S12D | Input Voltage: 110 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRUW6-110S15D | Input Voltage: 110 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRUW6-110S24D | Input Voltage: 110 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRUW6-110D05D | Input Voltage: 110 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRUW6-110D12D | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRUW6-110D12D | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: DIN Rail | Size: | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 110 |
| Input Voltage Range: | 40~160 |
| Input Filter: | Pi Filter |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±3% Max. |
| Output Current: | 250mA, 400mA, 500mA, 1200mA, ±200mA, ±250mA, ±600mA |
| Output Power (Watts): | 6 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| Over Voltage Protection: | 110~160%Vo |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 2250VDC 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | Horizontal Package: 0.53oz (15g) Horizontal Package with Heatsink: 0.71oz (20g) Chassis Mount: 1.23oz (35g) Chassis Mount with Heatsink: 1.41oz (40g) DIN Rail: 1.90oz (54g) DIN Rail with Heatsink: 2.08oz (59g) |

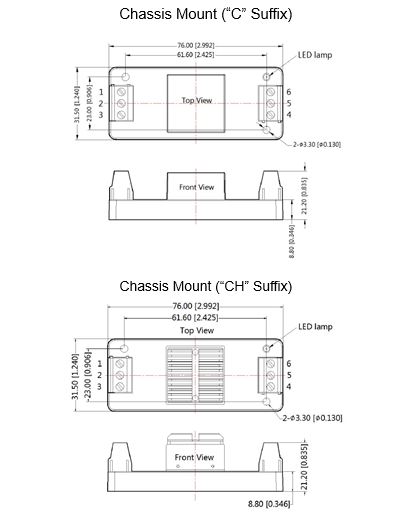

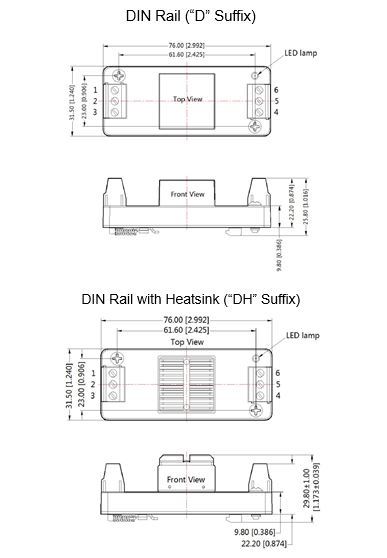

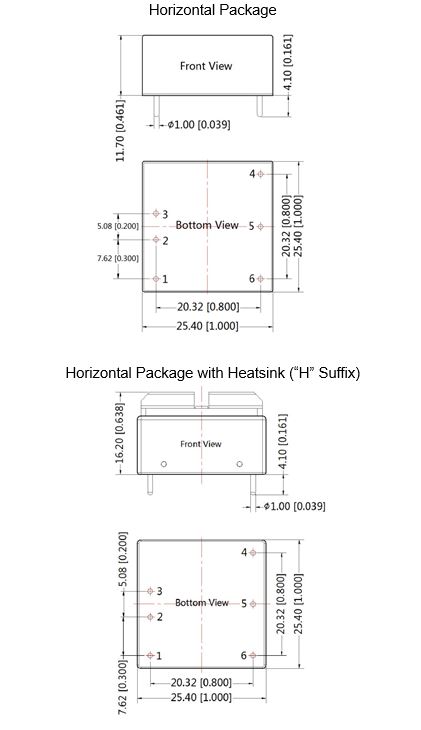

| Dimensions: | Through Hole: 1 x 1 x 0.46in (25.4 x 25.4 x 11.70mm) Through Hole with Heatsink: 1 x 1 x 0.64in (25.4 x 25.4 x 16.2mm) Chassis Mount: 2.99 x 1.24 x 0.84in (76 x 31.5 x 21.2mm) Chassis Mount with Heatsink: 2.99 x 1.24 x 0.99in (76 x 31.5 x 25.2mm) DIN Rail: 2.99 x 1.24 x 1.02in (76 x 31.5 x 25.8mm) DIN Rail with Heatsink: 2.99 x 1.24 x 1.17in (76 x 31.5 x 29.8mm) |
| Notes & safety | |
| Notes: | 1. Several options are available for this series. To indicate 2nd through hole option, add “P” to end of model number. To indicate chassis mount option, add “C” to end of model number. To indicate DIN rail mount option, add “D” to end of model number. Heatsink is available for all models. Heatsink is recommended for applications with higher requirement for heat dissipation. To indicate heatsink, add “H” to model number. Contact factory for more details. 2. Efficiency is measured in nominal input voltage and rated output load. Due to input reverse polarity protection in chassis mount & din rail models, minimum efficiency greater than Min.-2 is qualified. 3. Ripple and noise tested with “parallel cable” method. 0%-5% load ripple & noise is no more than 5%Vo. 4. The voltage of Ctrl pin is relative to input pin GND. 5. This series of products using reduced frequency technology, the switching frequency is test value of full load. When load is reduced to below 50%, the switching frequency decreases with decreasing load. 6. Customization is available, please contact factory for details. 7. Product classified according to ISO4001 and related environmental laws and regulates and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN50155, EN60950 |
| RoHS Compliance: | Yes |
