DCRLD30

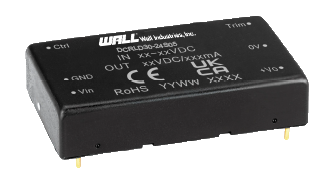

The DCRLD30 series of DC/DC converters offers up to 30 watts of output power in a 2” x 1” x 0.47” through hole package. This series consists of regulated single output models with a wide 2:1 input range and high efficiency. Features of this series include short circuit, over voltage, and over current protection, as well as isolation voltage of 1.5kVDC. This series meets CISPR32/EN55032 Class A EMI without extra components and is RoHS compliant.
• Wide 2:1 Input Voltage Range • High Efficiency • RoHS Compliant • Regulated Outputs • Six-Sided Metal Shielded Package • Output Short Circuit, Over Voltage, and Over Current Protection • I/O Isolation Voltage of 1.5kVDC • Meets CISPR32/EN55032 Class A EMI without Extra Components
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCRLD30-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 3333mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-48S03 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCRLD30-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18~36, 36~75 |
| Input Filter: | Pi Filter |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 5%-100% Load: ±3% Max. 0%-5% Load: ±5% Max |
| Output Current: | 6000mA, 3333mA, 2500mA, 2000mA, 1250mA |
| Output Power (Watts): | 30 |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | 110-160%Vo |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to +80°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.98oz (27.8g) |

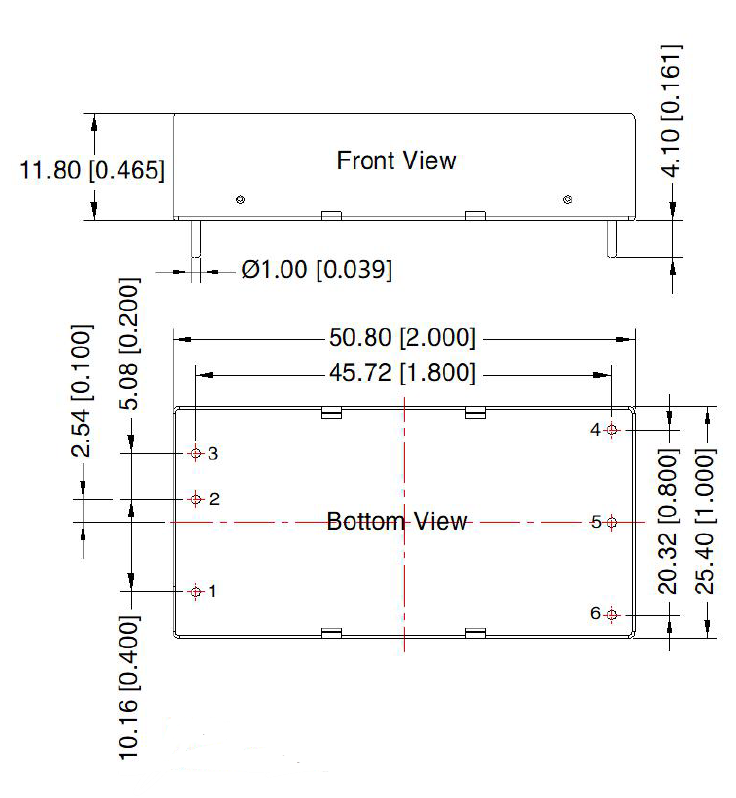

| Dimensions: | 2in x 1in x 0.47in (50.8mm x 25.4mm x 11.8mm) |
| Case Material: | Aluminum Alloy |
| Shielding: | Six-Sided Shielded |
| Notes & safety | |
| Notes: | 1. Exceeding maximum input voltage may cause permanent damage 2. Efficiency is measured in nominal input voltage and rated output load 3. Load regulation for 0%-100% load is ±5% 4. The “parallel cable” method is used for ripple and noise test. Contact factory for more information. 5. Ctrl pin voltage is referenced to input GND. 7. Maximum capacitive load offered were tested at input voltage range and full load. 8. Customization is available. Please contact factory for more information. 9. Product classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
