DCRHW10
The DCRHW10 series of DC/DC converters offers up to 10 watts of output power in a very compact package. This series consists of single output models with an ultra-wide 4:1 input voltage range in either a through hole, chassis mount, or DIN rail package. Each model in this series features enhanced isolation, low ripple & noise, high efficiency, and protection against over voltage, over current, and short circuit conditions. This series is designed to meet both railway standard EN50155 and IEC60950, UL60950, and EN60950 approvals. Reverse protection is available with chassis and DIN rail mounting and optional heatsink is available. Please contact factory for order information.
• Ultra-Wide Input Voltage Range • High Efficiency • Enhanced Isolation • Low Ripple & Noise • Isolated and Regulated Single Outputs • Through Hole, Chassis Mount, or DIN Rail Packages Available • Optional Heatsink Available • Reverse Protection Available with Chassis or DIN Rail Mounting • International Standard Pin-Out • Over Voltage, Over Current, and Short Circuit Protection • Designed to Meet Railway Standard EN50155 • Designed to Meet IEC60950, UL60950, and EN60950 Approvals
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCRHW10-110S03 | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 2400mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.46" | Get a Quote |
| DCRHW10-110S05 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.46" | Get a Quote |
| DCRHW10-110S12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.46" | Get a Quote |
| DCRHW10-110S15 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 667mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.46" | Get a Quote |
| DCRHW10-110S24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 417mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.46" | Get a Quote |
| DCRHW10-110S03CM | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 2400mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.83" | Get a Quote |
| DCRHW10-110S05CM | Input Voltage: 110 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.83" | Get a Quote |
| DCRHW10-110S12CM | Input Voltage: 110 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.83" | Get a Quote |
| DCRHW10-110S15CM | Input Voltage: 110 | Output Voltage: 15 | Output Current: 667mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.83" | Get a Quote |
| DCRHW10-110S24CM | Input Voltage: 110 | Output Voltage: 24 | Output Current: 417mA | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.83" | Get a Quote |
| DCRHW10-110S03DN | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 2400mA | Output Power (W): 10 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRHW10-110S05DN | Input Voltage: 110 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRHW10-110S12DN | Input Voltage: 110 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRHW10-110S15DN | Input Voltage: 110 | Output Voltage: 15 | Output Current: 667mA | Output Power (W): 10 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| DCRHW10-110S24DN | Input Voltage: 110 | Output Voltage: 24 | Output Current: 417mA | Output Power (W): 10 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 110 |
| Input Voltage Range: | 40~160 |
| Input Filter: | Pi Filter |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±1% |
| Output Current: | 417mA, 6667mA, 833mA, 2000mA, 2400mA |
| Output Power (Watts): | 10 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| Over Voltage Protection: | 110~160%Vo |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 2250VDC 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | Through Hole Package: 0.92oz (26g) Chassis Mount Package (“CM” Suffix): 1.69oz (48g) DIN Rail Package (“DN” Suffix): 2.40oz (68g) Through Hole with Heatsink (“H” Suffix): 1.20oz (34g) Chassis Mount Package with Heatsink (“CMH” Suffix): 1.98oz (56g) DIN Rail Package with Heatsink(“DNH” Suffix): 2.68oz (76g) |

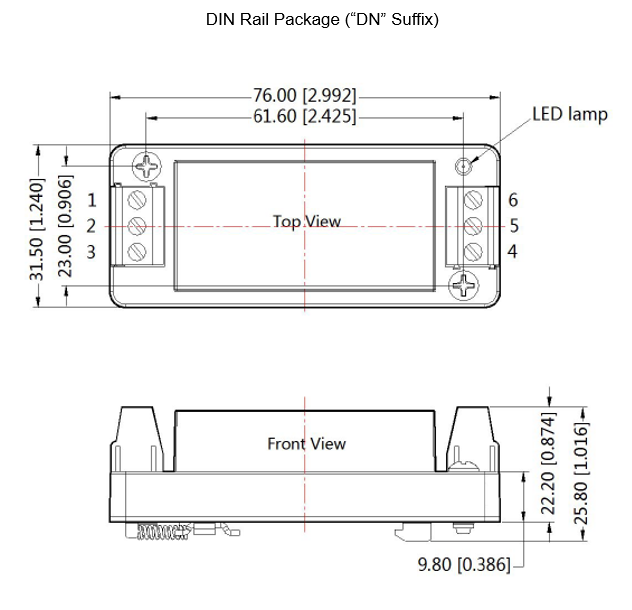

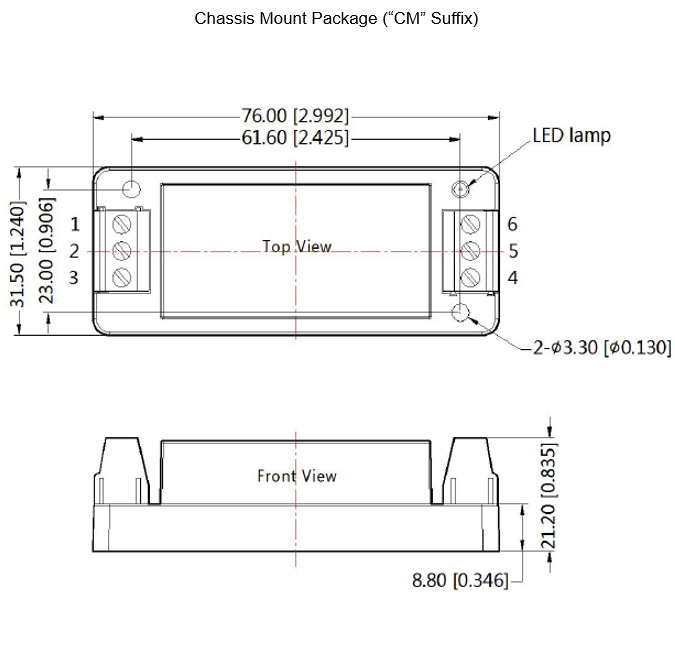

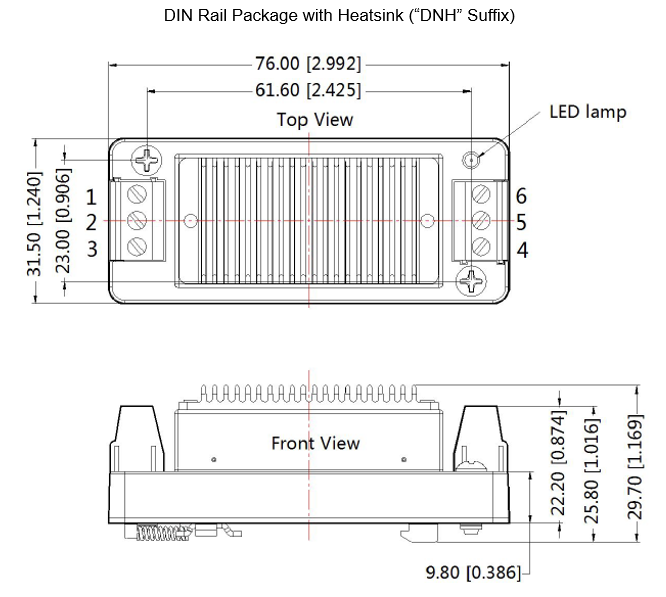

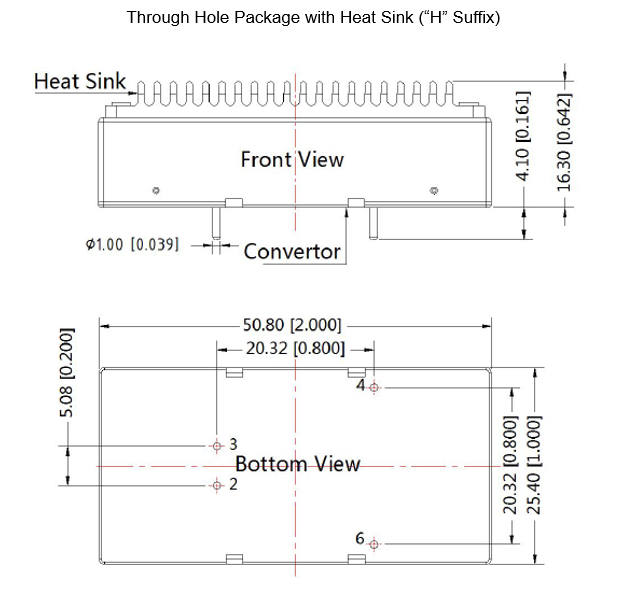

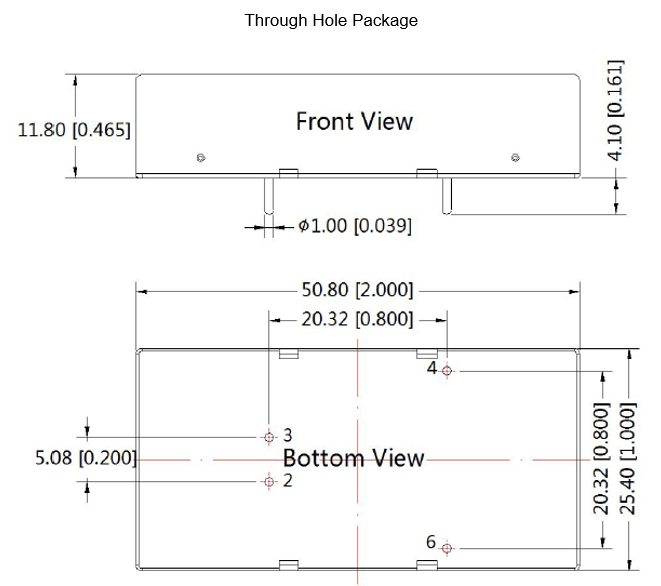

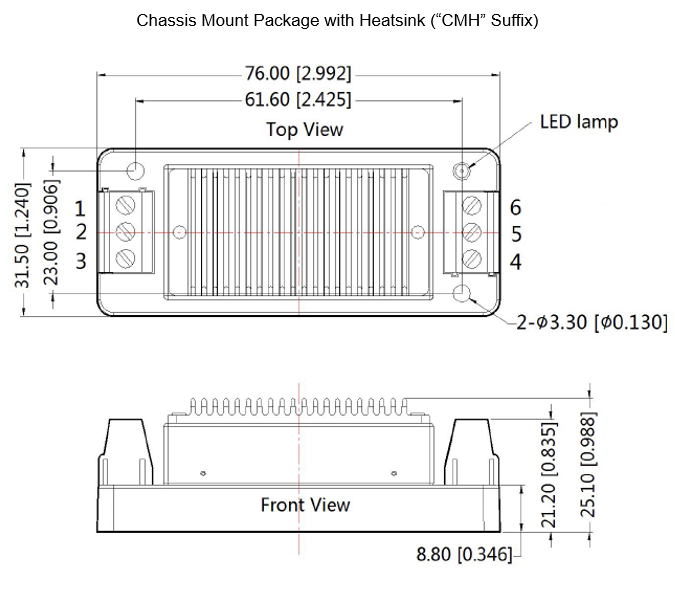

| Dimensions: | Through Hole Package: 2in x 1in x 0.46in (50.8mm x 25.4mm x 11.8mm) Chassis Mount Package (“CM” Suffix): 2.99in x 1.24in x 0.83in (76mm x 31.5mm x 21.2mm) DIN Rail Package (“DN” Suffix): 2.99in x 1.24in x 1.02in (76mm x 31.5mm x 25.8mm) Through Hole with Heatsink (“H” Suffix): 2in x 1in x 0.64in (50.8mm x 25.4mm x 16.3mm) Chassis Mount Package with Heatsink (“CMH” Suffix): 2.99in x 1.24in x 0.99in (76mm x 31.5mm x 25.1mm) DIN Rail Package with Heatsink(“DNH” Suffix): 2.99in x 1.24in x 1.17in (76mm x 31.5mm x 29.7mm) |
| Notes & safety | |
| Notes: | 1. Several package options are available for this series. The standard package type is through hole. To indicate chassis mount package, add “CM” suffix to model number. To indicate DIN Rail package, add “DN” suffix to model number. Heatsink can also be applied to any package. To indicate heatsink option, add “H” suffix to model number. Heatsink is recommended for applications with a higher requirement for heat dissipation. 2. 0%-5% load ripple & noise is no more than 5%Vo. Ripple and noise are measured by “parallel cable” method. Contact factory for more information. 3. This series of products uses reduced frequency technology, switching frequency is test value of full load. When the load is reduced to below 50%, the switching frequency decreases with decreasing load. 4. Customization is available. 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Designed to Meet IEC60950,UL60950, EN60950 |
