DCRB10A

The DCRB10A series of DC/DC converters offers up to 240 watts of output power in a ¼ brick package with industry standard pin-out. This series consists of non-isolated and regulated single output models with a wide input voltage range. Features of this series include short circuit and over current protection, input under voltage protection, and adjustable input starting voltage. This series has EN62368 safety approvals and is RoHS compliant.

• Wide Input Voltage • Adjustable Input Starting (Under Voltage) Voltage • High Efficiency • RoHS Compliant • ¼ Brick Package • Industry Standard Pin Out • Open Frame Package • Non-Isolated & Regulated Output • Input Under Voltage Protection • Short Circuit and Over Current Protection • EN62368 Approval
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DCRB10A-48S12 Input Voltage: 48 Output Voltage: 12 Output Current: 10A Output Power (W): 120 No. Outputs: S Case: Open Frame Size: 2.33" x 1.48" x 0.51" Get a Quote
DCRB10A-48S24 Input Voltage: 48 Output Voltage: 24 Output Current: 10A Output Power (W): 240 No. Outputs: S Case: Open Frame Size: 2.33" x 1.48" x 0.51" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 48
Input Voltage Range: 16~75, 30~75
Input Filter: Capacitance Filter
UVLO: Yes
Output
Output Voltage: 12, 24
Voltage Accuracy: ±3 Max.
Output Current: 10A
Output Power (Watts): 120, 240
Short Circuit Protection: Hiccup, Continuous, Self-Recovery
General
Efficiency: Up to 97%
Environmental
Operating Temperature: -40 to 85°C
Storage Temperature: -55 to 125°C
Physical
Weight: 1.16oz (33g)

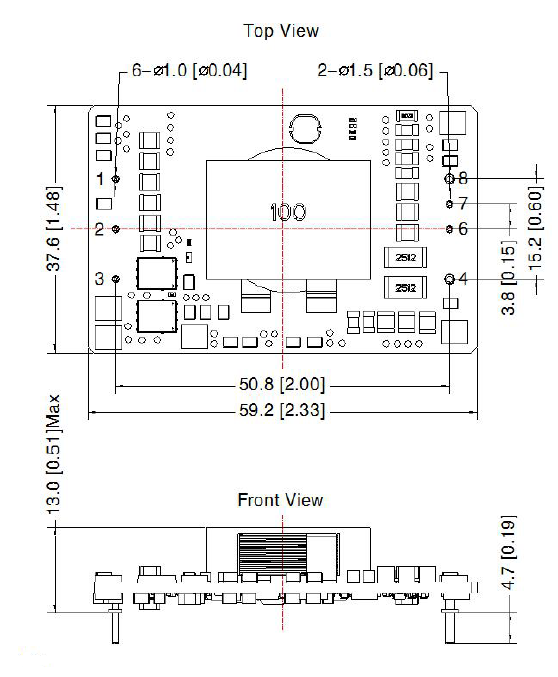

Dimensions: 2.33in x 1.48in x 0.51in (59.2mm x 37.6mm x 13mm)
Notes & safety
Notes: 1. Exceeding maximum input voltage may cause permanent damage.
2. The voltage of the Ctrl pin is relative to input pin GND.
3. Ripple & noise are measured by “parallel cable” method. Contact factory for more information.
4. Product customization available.
5. Product should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN62368
RoHS Compliance: Yes
