DCQEB100

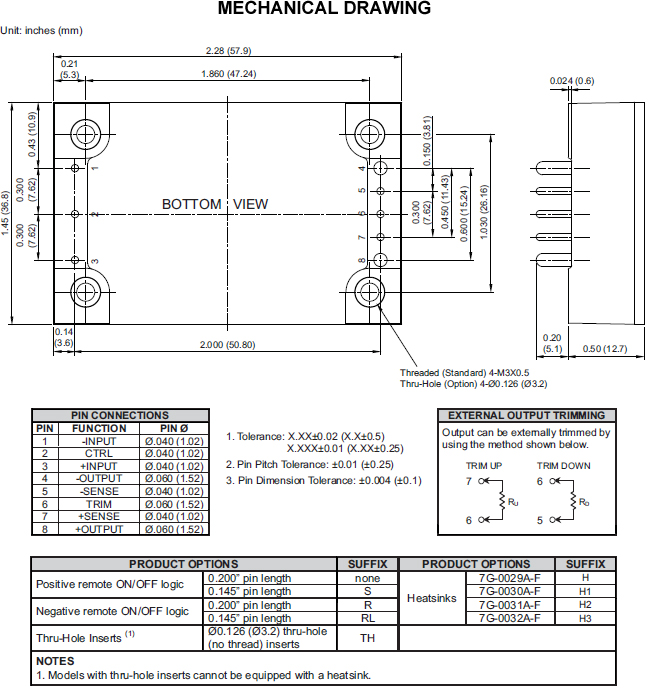

The DCQEB100 series of DC DC power converters provides up to 100 Watts of output power in an industry standard 2.28” x 1.45” x 0.50” quarter-brick package and footprint. This series consists of single output models with 2:1 input voltage ranges of 18-36VDC or 36-75VDC. Some features include high efficiency up to 90%, adjustable output voltage, remote sense, and positive or negative remote ON/OFF control. This series is RoHS compliant and has UL60950-1, EN60950-1, and IEC60950-1 safety approvals (see note 12). Several different options are available for this series including negative remote ON/OFF control, heatsinks, pin lengths, and thru-hole inserts. Please call factory for more details.

• Up to 100 Watts Output Power • Single Outputs • Output Current up to 30A • Industry Standard Quarter-Brick Package: 2.28” x 1.45” x 0.50” • Under Voltage Lockout • Fixed Switching Frequency • Input to Output Isolation: 1600VDC • 2:1 Wide Input Voltage Range • High Efficiency up to 90% • No Minimum Load Required • Adjustable Output Voltage • Threaded Inserts and Thru-Hole Inserts Available • Short Circuit, Over Voltage, Over Current, and Over Temp. Protection • Compliant to RoHS EU Directive 2002/95/EC • CE Mark Meets 2006/95/CE, 93/68/EEC, and 2004/108/EC • UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals (See Note 12)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCQEB100-48S1.8 Input Voltage: 48 Output Voltage: 1.8 Output Current: 30A Output Power (W): 54 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-48S2.5 Input Voltage: 48 Output Voltage: 2.5 Output Current: 30A Output Power (W): 75 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-24S3.3 Input Voltage: 24 Output Voltage: 3.3 Output Current: 25A Output Power (W): 82.5 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-48S3.3 Input Voltage: 48 Output Voltage: 3.3 Output Current: 25A Output Power (W): 82.5 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 20A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 8.33A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 6.67A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-48S05 Input Voltage: 48 Output Voltage: 5 Output Current: 20A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-48S12 Input Voltage: 48 Output Voltage: 12 Output Current: 8.33A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
DCQEB100-48S15 Input Voltage: 48 Output Voltage: 15 Output Current: 6.67A Output Power (W): 100 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 18~36, 36~75
Input Filter: L-C Type
Remote ON/OFF: Positive or Negative
UVLO: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 1.8, 2.5, 3.3, 5, 12, 15
Voltage Accuracy: ±1.5%
Output Current: 25A, 20A, 8.33A, 6.67A, 30A
Output Power (Watts): 54, 75, 82.5, 100
Output Trim/Adjustability: -20 to 10%
Short Circuit Protection: hiccup, automatic recovery
Over Voltage Protection: 1.2
Thermal Protection: Yes
General
Efficiency: Up to 90%
Isolation: 1600VDC
Environmental
Operating Temperature: -40 to 100°C
Storage Temperature: -55 to 125°C
Physical
Weight: 1.46 oz
Dimensions: 2.28 x 1.45 x 0.50
Case Material: Aluminum base-plate
Notes & safety
Notes: 1. BELLCORE TR-NWT-000332. Case 1: 80% Stress, Temperature at 40°C.
MIL-HDBK-217F Notice2 @Ta=25°C, Full load (Ground, Benign, controlled environment).
2. Maximum value at nominal input voltage and full load.
3. Typical value at nominal input voltage and no load.
4. Typical value at nominal input voltage and full load.
5. Maximum output deviation is +10% inclusive of trim. If remote sense is not being used the +SENSE should be connected to its corresponding +OUTPUT and likewise the -SENSE should be connected to its corresponding –OUTPUT.
6. The remote ON/OFF control pin voltage is referenced to –INPUT. To order negative logic Remote ON/OFF control add the suffix “R” to the model number (Ex: DCQEB100-48S05R).
7. Heatsink is optional and P/N: 7G-0029A-F, 7G-0030A-F, 7G-0031A-F, and 7G-0032A-F.
8. The DCQEB100 series meets EN55022 Class A and Class B only with external components added before the input pins to the converter.
9. An external input filter capacitor is required if the module has to meet EN61000-4-4 and EN61000-4-5. We recommend Nippon chemi-con KY series, 220µF/100V, ESR 48mΩ.
10. BASE-PLATE GROUNDING: EMI can be reduced when you connect the four screw bolts to the shield plane.
11. The converter is provided with basic insulation.
12. Safety Approvals: DCQEB100-48S1.8, 48S2.5, 48S3.3, and 48S05 have safety approvals; approvals pending for all other models.
13. This series comes with several different options: Negative remote ON/OFF control, pin lengths, thru-hole inserts, and heatsinks.
CAUTION: The power module is not internally fused. An input line fuse must always be used.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, EN60950-1, IEC60950-1
RoHS Compliance: Yes
