DCMQ50

The DCMQ50 series of DC/DC railway converters offers 50 watts of output power in a 2.28” x 1.45” x 0.50” standard quarter brick package. This series consists of single output models with a wide input range and high efficiency. Each model has remote on/off, fire protection, and optional heatsink. They also have over load, over voltage, short circuit, and over temperature protection and are RoHS & REACH compliant. This series has cUL/UL 60950-1, IEC/EN60950-1, EN50155, and IEC 60571 safety approvals.

• Quarter Brick Package • Wide Input Range • High Efficiency • No Minimum Load Requirement • Remote On/Off • Over Load, Over Voltage, Short Circuit, and Over Temperature Protection • Fire Protection and RoHS & REACH Compliance • cUL/UL 60950-1, IEC/EN60950-1, EN50155, and IEC 60571 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMQ50-72S05 Input Voltage: 72 Output Voltage: 5 Output Current: 10000mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
DCMQ50-72S12 Input Voltage: 72 Output Voltage: 12 Output Current: 4170mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
DCMQ50-72S15 Input Voltage: 72 Output Voltage: 15 Output Current: 3330mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
DCMQ50-72S24 Input Voltage: 72 Output Voltage: 24 Output Current: 2080mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
DCMQ50-110S05 Input Voltage: 110 Output Voltage: 5 Output Current: 10000mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
DCMQ50-110S12 Input Voltage: 110 Output Voltage: 12 Output Current: 4170mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
DCMQ50-110S15 Input Voltage: 110 Output Voltage: 15 Output Current: 3330mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
DCMQ50-110S24 Input Voltage: 110 Output Voltage: 24 Output Current: 2080mA Output Power (W): 50 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 72, 110
Input Voltage Range: 43~101, 66~160
Input Filter: Internal Pi Type
Remote ON/OFF: Yes
Output
Output Voltage: 5, 12, 15, 24
Voltage Accuracy: ±1%
Output Current: 2080mA, 3330mA, 4170mA, 10000mA
Output Power (Watts): 50
Short Circuit Protection: Yes
Over Voltage Protection: 5V Models: 6.2V
12V Models: 15V
15V Models: 18V
24V Models: 30V
Thermal Protection: Yes
General
Efficiency: Up to 92%
Isolation: 3000VACrms
Environmental
Operating Temperature: See Datasheet
Storage Temperature: -50 to +125ºC
Physical
Weight: 2.15oz (61g)

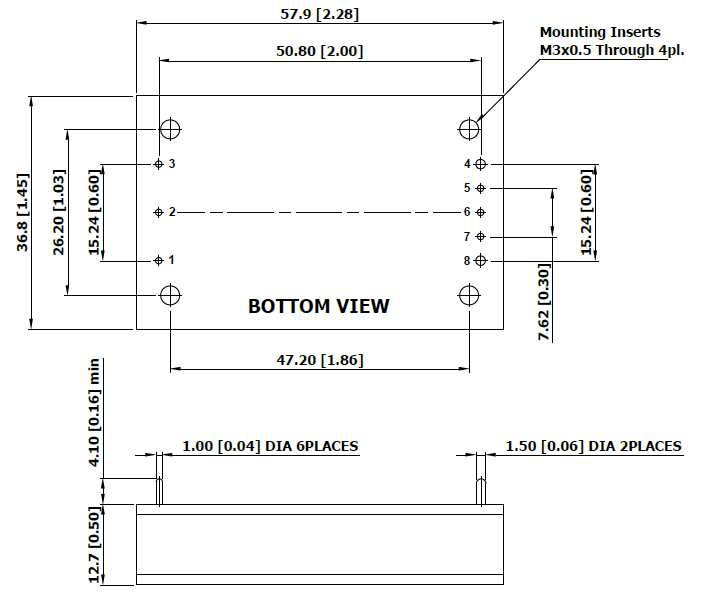

Dimensions: 2.28in x 1.45in x 0.50in (57.9mm x 36.8mm x 12.7mm)
Case Material: Aluminum Frame with Black Anodized Coating
Notes & safety
Notes: 1. Heatsink is available for models. To indicate heatsink, add –HS to end of model name.
2. Ripple & Noise measurement with 1µF MLCC and a 10µF tantalum capacitor.
3. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%.
4. Other input and output voltage may be available, please contact factory.
5. To meet EN61000-4-4 & EN61000-4-5 by adding capacitor across the input pins. Suggested Capacitor: 470µF/200V.
6. Parallel capacitor across the input pins under specification testing. Suggested capacitor: 68µF/200V.
7. Natural convection is about 20LFM but is not equal to still air (0 LFM).
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: cUL/UL 60950-1, IEC/EN 60950-1, EN50155, IEC60571
RoHS Compliance: Yes
