DCMK10-HI

The DCMK10-HI series of DC/DC converters offers 10 watts of output power in a compact 2” x 1” x 0.47” package. This series consists of fully regulated single and dual outputs with a wide 2:1 input voltage range. Each model in this series has no minimum load requirement, is qualified for IGBT and high isolation applications, and has over load and short circuit protection. This series has UL/cUL/IEC/EN 60950-1 safety approvals and CE marking.

• Wide 2:1 Input Voltage Range • Full Regulated Output Voltage • Ultra-High I/O Isolation with Reinforced Insulation • Qualified for IGBT and High Isolation Applications • No Minimum Load Requirement • Over Load and Short Circuit Protection • RoHS & REACH Compliant • Common Mode Transient Immunity: 15KV/µs • UL/cUL/IEC/EN 60950-1 Safety Approvals & CE Marking
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMK10-12S05HI Input Voltage: 12 Output Voltage: 5 Output Current: 1600mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-12S051HI Input Voltage: 12 Output Voltage: 5.1 Output Current: 1600mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-12S12HI Input Voltage: 12 Output Voltage: 12 Output Current: 835mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-24S05HI Input Voltage: 24 Output Voltage: 5 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-24S051HI Input Voltage: 24 Output Voltage: 5.1 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-24S12HI Input Voltage: 24 Output Voltage: 12 Output Current: 835mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-48S05HI Input Voltage: 48 Output Voltage: 5 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-48S051HI Input Voltage: 48 Output Voltage: 5.1 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-48S12HI Input Voltage: 48 Output Voltage: 12 Output Current: 835mA Output Power (W): 10 No. Outputs: S Case: Through Hole Get a Quote
DCMK10-12D12HI Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±417mA Output Power (W): 10 No. Outputs: D Case: Through Hole Get a Quote
DCMK10-12D15HI Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±333mA Output Power (W): 10 No. Outputs: D Case: Through Hole Get a Quote
DCMK10-24D12HI Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±417mA Output Power (W): 10 No. Outputs: D Case: Through Hole Get a Quote
DCMK10-24D15HI Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±333mA Output Power (W): 10 No. Outputs: D Case: Through Hole Get a Quote
DCMK10-48D12HI Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±417mA Output Power (W): 10 No. Outputs: D Case: Through Hole Get a Quote
DCMK10-48D15HI Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±333mA Output Power (W): 10 No. Outputs: D Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24, 48
Input Voltage Range: 9~18, 18~36, 36~75
Input Filter: Internal Pi Type
Output
Output Voltage: -15, -12, 5, 5.1, 12, 15
Voltage Accuracy: ±1%
Output Current: 835mA, 2000mA, ±333mA, ±417mA
Output Power (Watts): 10W
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 82%
Isolation: Rated for 60 Seconds: 4000VACrms
Tested for 1 Second: 8000VDC
Environmental
Operating Temperature: -40 to 75ºC
Storage Temperature: -50 to +125ºC
Physical
Weight: 0.86oz (24.5g)

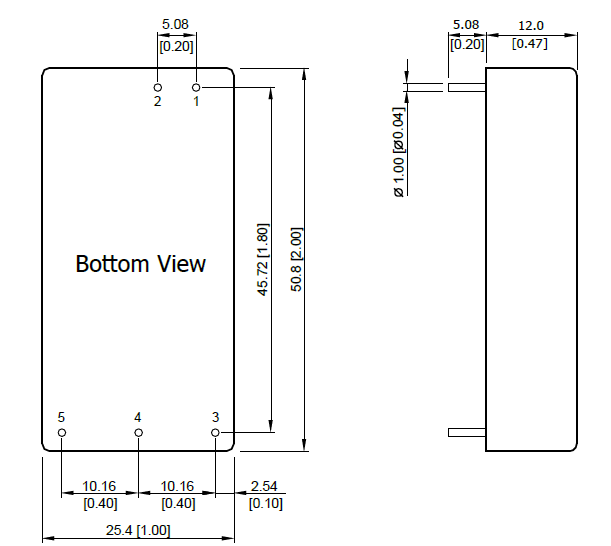

Dimensions: 2in x 1in x 0.47in (50.8mm x 25.4mm x 12mm)
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%.
2. We recommend to protect the converter by a slow blow fuse in the input supply line.
3. Other input and output voltages may be available, please contact factory.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 60950-1 recognition (UL Certificate), IEC/EN 60950-1 (CB-Report)
RoHS Compliance: Yes
