DCMIE06-HI

The DCMIE03-HI series of DC/DC converters offers up to 6 watts of output power in a compact 1.25” x 0.80” x 0.47” industrial standard DIP-24 package. This series consists of single and dual fully regulated output models with a wide 2:1 input voltage range and ultra-high isolation. Each model in this series has over load, over voltage, and short circuit protection, is qualified for IGBT and high isolation application, and is RoHS & REACH compliant. This series has UL/cUL/IEC/EN 60950-1 pending safety approvals and CE marking.

• Wide 2:1 Input Voltage Range • Industrial Standard DIP-24 Package • Ultra-High Isolation • Fully Regulated Output Voltage • RoHS & REACH Compliant • Qualified for IGBT and High Isolation Applications • Over Load and Short Circuit Protection • UL/cUL/IEC/EN 60950-1 & UL/cUL/IEC/EN 62368-1 Pending Safety Approvals & CE Marking
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMIE06-12S05HI Input Voltage: 12 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-12S12HI Input Voltage: 12 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-24S05HI Input Voltage: 24 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-24S12HI Input Voltage: 24 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-48S05HI Input Voltage: 48 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-48S12HI Input Voltage: 48 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-12D12HI Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCMIE06-12D15HI Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCMIE06-24D12HI Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCMIE06-24D15HI Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCMIE06-48D12HI Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCMIE06-48D15HI Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCMIE06-12S15HI Input Voltage: 12 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-24S15HI Input Voltage: 24 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCMIE06-48S15HI Input Voltage: 48 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24, 48
Input Voltage Range: 9~18, 18~36, 36~75
Input Filter: Internal Pi Type
UVLO: 12V Input: 8.5VDC
24V Input: 16VDC
48V Input: 34VDC
Output
Output Voltage: -15, -12, 5, 12, 15
Voltage Accuracy: ±1.0%
Output Current: -250mA, -200mA, 200mA, 250mA, 400mA, 500mA, 1200mA
Output Power (Watts): 6
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 89%
Isolation: 60 Seconds: 5000VACrms
1 Second: 9000VDC
Environmental
Operating Temperature: -40 to +92.5ºC
Storage Temperature: -50 to +125ºC
Physical
Weight: 0.55oz (15.5g)

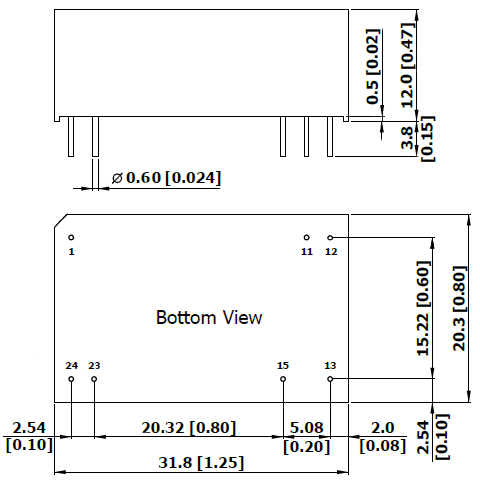

Dimensions: 1.25in x 0.80in x 0.47in (31.8mm x 20.3mm x 12mm)
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%.
2. It is recommended to protect the converter by a slow blow fuse in the input supply line.
3. Other input and output voltages may be available, please contact factory.
4. “Natural Convection” is about 20LFM but is not equal to still air (0 LFM)
5. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required.
-Suggested Capacitors:
-12V Input Models: CHEMI-CON KY Series 470µF/100V
-24V Input Models: CHEMI-CON KY Series 330µF/100V
-48V Input Models: CHEMI-CON KY Series 220µF/100V
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: PENDING: UL/cUL 60950-1 recognition (UL Certificate), IEC/EN 60950-1 (CB-report) UL/cUL 62368-1 recognition (UL certificate), IEC/EN 62368-1 (CB-report)
RoHS Compliance: Yes
