DCMIE03-HI

The DCMIE03-HI series of DC/DC converters offers 3 watts of output power in a 1.25” x 0.80” x 0.47” industry standard DIP-24 package. This series consists of fully regulated single and dual outputs with a wide 2:1 input voltage range. Each model in this series has ultra-high I/O isolation, qualifies for IGBT and high isolation applications, and has short circuit, over load, and over voltage protection. This series has UL/cUL/IEC/EN 62368-1 (60905-1) pending safety approvals.

• Wide 2:1 Input Voltage Range • Industry Standard DIP-24 Package • Fully Regulated Output Voltage • Ultra-High I/O Isolation • RoHS & REACH Compliant • Qualified for IGBT and High Isolation Applications • Short Circuit, Over Load, and Over Voltage Protection • UL/cU/IEC/EN 62368-1 (60905-1) Pending Safety Approvals & CE Marking
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMIE03-05S05HI Input Voltage: 5 Output Voltage: 5 Output Current: 700mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-05S12HI Input Voltage: 5 Output Voltage: 12 Output Current: 290mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-05S15HI Input Voltage: 5 Output Voltage: 15 Output Current: 235mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-12S05HI Input Voltage: 12 Output Voltage: 5 Output Current: 700mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-12S12HI Input Voltage: 12 Output Voltage: 12 Output Current: 290mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-12S15HI Input Voltage: 12 Output Voltage: 15 Output Current: 235mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-24S05HI Input Voltage: 24 Output Voltage: 5 Output Current: 700mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-24S12HI Input Voltage: 24 Output Voltage: 12 Output Current: 290mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-24S15HI Input Voltage: 24 Output Voltage: 15 Output Current: 235mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-48S05HI Input Voltage: 48 Output Voltage: 5 Output Current: 700mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-48S12HI Input Voltage: 48 Output Voltage: 12 Output Current: 290mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-48S15HI Input Voltage: 48 Output Voltage: 15 Output Current: 235mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMIE03-05D12HI Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±145mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-05D15HI Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±115mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-12D12HI Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±145mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-12D15HI Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±115mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-24D12HI Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±145mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-24D15HI Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±115mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-48D12HI Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±145mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-48D15HI Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±115mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMIE03-05S58HI Input Voltage: 5 Output Voltage: 5.8 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 12, 24, 48
Input Voltage Range: 4.5~9, 9~18, 18~36, 36~75
Input Filter: Internal Pi Type
Output
Output Voltage: -15, -12, 5, 5.8, 12, 15
Voltage Accuracy: ±1.0%
Output Current: -125mA, -100mA, 100mA, 125mA, 250mA, 600mA
Output Power (Watts): 3
Short Circuit Protection: Yes
General
Efficiency: Up to 87%
Isolation: 60 Seconds: 5000VACrms
1 Second: 9000VDC
Environmental
Operating Temperature: -40 to +95ºC
Storage Temperature: -50 to +125ºC
Physical
Weight: 0.55oz (15.5g)

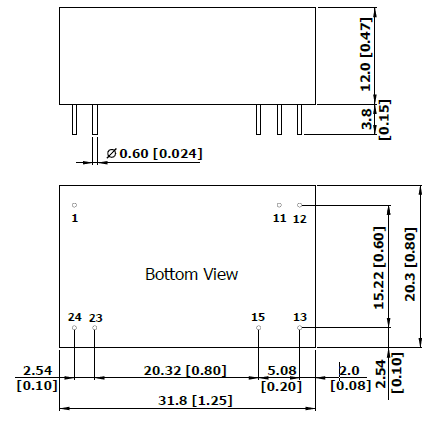

Dimensions: 1.25in x 0.80in x 0.47in (31.8mm x 20.3mm x 12mm)
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%.
2. It is recommended to protect the converter by a slow blow fuse in the input supply line.
3. Other input and output voltages may be available, please contact factory.
4. Natural convection is about 20LFM but is not equal to still air (0 LFM).
5. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required.
Suggested Capacitors:
5V Input Models: CHEMI-CON KY Series 1000µF/100V//Diode (V10P45)
12V Input Models: CHEMI-CON KY Series 470µF/100V
24V Input Models: CHEMI-CON KY Series 330µF/100V
48V Input Models: CHEMI-CON KY Series 220µF/100V
*Due to advances in technology, specifications subject to change without notice.

Safety Approvals: PENDING: UL/cUL 60950-1 Recognition (UL Certificate), IEC/EN 60950-1 (CB-Report), UL/cUL 62368-1 Recognition (UL Certificate), IEC/EN 62368-1 (CB Report)
RoHS Compliance: Yes
