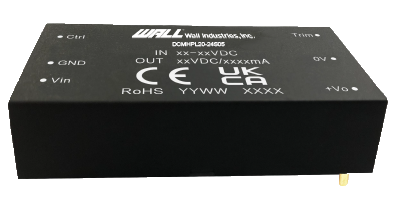

DCMHPL20
The DCMHPL20 series of DC/DC converters offers 20 watts of output power in a compact DIP package. This series consists of isolated and regulated single output models with ultra wide 4:1 input voltage. Each model features industry standard pin-out, reinforced insulation, and high efficiency. This series is also RoHS compliant and has EN62368-1, EN60601-1, and BS EN62368-1 approvals.
• Ultra-Wide 4:1 Input Voltage • High Efficiency • Reinforced Insulation, I/O Isolation Test Voltage: 5KVDC Rated for 250VAC Working Voltage • Compact DIP Package • Industry Standard Pin-Out • Transformer Creepage Distance is 8mm, Transformer Clearance is 8mm • No-Load Power Consumption as Low as 0.12W • Leakage Current <5µa • Input Under Voltage Protection • Output Short Circuit, Over Current, and Over Voltage Protection • RoHS Compliant • Meets CISPR32/EN55032 Class A without extra Components • EN62368-1, EN60601-1, and BS EN62368-1 Safety Approvals
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMHPL20-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 5000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1666mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-48S03 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 5000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1666mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| DCMHPL20-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.03" x 1.04" x 0.47" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Pi Filter |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±2% Max. |
| Output Current: | 5000mA, 4000mA, 1666mA, 1333mA, 833mA |
| Output Power (Watts): | 20 |
| Short Circuit Protection: | Continuous, Self Recovery |
| Over Voltage Protection: | 110-160%Vo |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 5000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.95oz (27g) |

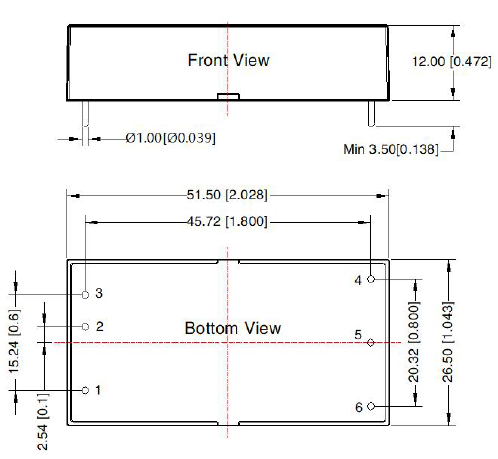

| Dimensions: | 2.03in x 1.04in x 0.47in (51.5mm x 26.5mm x 12mm) |
| Case Material: | Black Plastic; Flame-Retardant and Heat-Resistant (UL94-V0) |
| Notes & safety | |
| Notes: | 1. Exceeding the maximum input voltage may cause permanent damage. 2. Load regulations for 0%-100% load is ±5% max. 3. Ripple & Noise of 3.3VDC/5VD output converter for 0%-5% load is ±10% max; Ripple & Noise of other output converter for 0%-5% load is 5%Vo max. The “parallel cable” method is used for Ripple and Noise test, please contact factory for more information. 4. It is required to connect an external 270uF electrolytic capacitor for 3.3V output voltage model. 5. Switching frequency is measured at full load. The module reduces the switching frequency for light load (below 50%) efficiency improvement. 6. Maximum capacitive load offered were tested at input voltage range and full load. 7. Product customization is available. Contact factory for more information. 8. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN62368-1, EN60601-1, BS EN62368-1 |
| RoHS Compliance: | Yes |
