DCMA01-HI

The DCMA01-HI series of DC/DC converters offers 1 watt of output power in a compact 0.77” x 0.40” x 0.28” industrial standard SIP-7 package. This series consists of single and dual output models with wide input voltage ranges and high efficiency. Each model in this series qualifies for IGBT and high isolation applications, has short circuit protection, and has UL/cUL/IEC/EN 60950-1 safety approvals. This series is RoHS & REACH compliant.

• Wide Input Voltage Ranges • Industrial Standard SIP-7 Package • Common Mode Transient Immunity: 15KV/µs • Qualifies for IGBT and High Isolation Applications • Short Circuit Protection • UL/cUL/IEC/EN 60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMA01-05S033HI Input Voltage: 5 Output Voltage: 3.3 Output Current: 303mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-05S05HI Input Voltage: 5 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-05S09HI Input Voltage: 5 Output Voltage: 9 Output Current: 111mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-05S12HI Input Voltage: 5 Output Voltage: 12 Output Current: 84mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-05S15HI Input Voltage: 5 Output Voltage: 15 Output Current: 66mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-12S033HI Input Voltage: 12 Output Voltage: 3.3 Output Current: 303mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-12S05HI Input Voltage: 12 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-12S09HI Input Voltage: 12 Output Voltage: 9 Output Current: 111mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-12S12HI Input Voltage: 12 Output Voltage: 12 Output Current: 84mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-12S15HI Input Voltage: 12 Output Voltage: 15 Output Current: 66mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-15S033HI Input Voltage: 15 Output Voltage: 3.3 Output Current: 303mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-15S05HI Input Voltage: 15 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-15S09HI Input Voltage: 15 Output Voltage: 9 Output Current: 111mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-15S15HI Input Voltage: 15 Output Voltage: 15 Output Current: 66mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-24S033HI Input Voltage: 24 Output Voltage: 3.3 Output Current: 303mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-24S05HI Input Voltage: 24 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-24S09HI Input Voltage: 24 Output Voltage: 9 Output Current: 111mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-24S12HI Input Voltage: 24 Output Voltage: 12 Output Current: 84mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-24S15HI Input Voltage: 24 Output Voltage: 15 Output Current: 66mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
DCMA01-05D05HI Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-05D09HI Input Voltage: 5 Output Voltage: 9, -9 Output Current: ±56mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-05D12HI Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±42mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-05D15HI Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±33mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-05D159HI Input Voltage: 5 Output Voltage: 15, -9 Output Current: 33mA, -55mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-12D05HI Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-12D09HI Input Voltage: 12 Output Voltage: 9, -9 Output Current: ±56mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-12D12HI Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±42mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-12D15HI Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±33mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-12D159HI Input Voltage: 12 Output Voltage: 15, -9 Output Current: 33mA, -55mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-15D05HI Input Voltage: 15 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-15D09HI Input Voltage: 15 Output Voltage: 9, -9 Output Current: ±56mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-15D12HI Input Voltage: 15 Output Voltage: 12, -12 Output Current: ±42mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-15D15HI Input Voltage: 15 Output Voltage: 15, -15 Output Current: ±33mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-15D159HI Input Voltage: 15 Output Voltage: 15, -9 Output Current: 33mA, -55mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-24D05HI Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-24D09HI Input Voltage: 24 Output Voltage: 9, -9 Output Current: ±56mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-24D12HI Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±42mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-24D15HI Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±33mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-24159HI Input Voltage: 24 Output Voltage: 15, -9 Output Current: 33mA, -55mA Output Power (W): 1 No. Outputs: D Case: Through Hole Get a Quote
DCMA01-15S12HI Input Voltage: 15 Output Voltage: 12 Output Current: 84mA Output Power (W): 1 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 12, 15, 24
Input Voltage Range: 4.5~5.5, 10.9~13.2, 13.5~16.5, 21.6~26.4
Input Filter: Internal Capacitor
Output
Output Voltage: -15, -12, -9, -5, 3.3, 5, 9 ,12 ,15
Voltage Accuracy: ±5%
Output Current: -55mA, -33mA, -42mA, -56mA, -100mA, 33mA, 42mA, 66mA, 56mA, 84mA, 100mA, 111mA, 200mA, 303mA
Output Power (Watts): 1
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 80%
Isolation: 5200-5700VDC
Environmental
Operating Temperature: -40 to +85ºC
Storage Temperature: -55 to +125ºC
Physical
Weight: 0.085oz (2.4g)

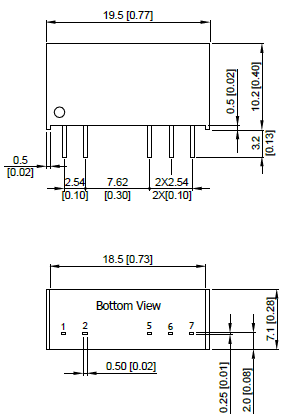

Dimensions: 0.77in x 0.40in x 0.28in (19.5mm x 10.2mm x 7.1mm)
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will not damage these modules; however they may not meet all specifications listed.
2. It is recommended to protect the converter by a slow blow fuse in the input supply line.
3. Other inputs and outputs may be available, please contact factory.
4. Natural convection is about 20LFM but is not equal to still air (0LFM).
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 60950-1 recognition (CSA Certificate), IEC/EN 60950-1 (CB Report)
