DCHF200W

The DCHF200W series of DC/DC power converters offers up to 240 Watts of output power in a 7.87” x 4.33” x 1.97” enclosed case. This series consists of 5V, 12V, 24V, and 48VDC single output models with 2:1 input voltage ranges of 18-36VDC, 36-72VDC, and 72-144VDC. Some features include ±10% output adjustability, high efficiency up to 90%, and over load and short circuit protection. The DCHF200W series has GB4943, UL60950, and EN60950 safety approvals and meets GB9254 and EN55022 Class A EMC standards. These supplies are also RoHS compliant and have been 100% full load burn-in tested.

• RoHS Compliant • High Efficiency up to 90% • Up to 240 Watts Output Power • 2:1 Wide Input Voltage Ranges • ±10% Voltage Adjustment Range • Over Load and Short Circuit Protection • 5V, 12V, 24V, & 48VDC Single Output Models • Electrolytic Capacitors all 105°C • GB4943, UL60950, & EN60950 Safety Approvals • Meets GB9254 & EN55022 Class A EMC Standards • Free Air Convection • 100% Full Load Burn-in Tested
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCHF200W-SD24-5 Input Voltage: 24 Output Voltage: 5 Output Current: 35A Output Power (W): 175 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD48-5 Input Voltage: 48 Output Voltage: 5 Output Current: 35A Output Power (W): 175 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD110-5 Input Voltage: 110 Output Voltage: 5 Output Current: 35A Output Power (W): 175 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD24-12 Input Voltage: 24 Output Voltage: 12 Output Current: 16.7A Output Power (W): 200.4 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD48-12 Input Voltage: 48 Output Voltage: 12 Output Current: 16.7A Output Power (W): 200.4 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD110-12 Input Voltage: 110 Output Voltage: 12 Output Current: 16.7A Output Power (W): 200.4 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD24-24 Input Voltage: 24 Output Voltage: 24 Output Current: 8.4A Output Power (W): 201.6 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD24-48 Input Voltage: 24 Output Voltage: 48 Output Current: 4.2A Output Power (W): 201.6 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD48-24 Input Voltage: 48 Output Voltage: 24 Output Current: 8.4A Output Power (W): 201.6 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD48-48 Input Voltage: 48 Output Voltage: 48 Output Current: 4.2A Output Power (W): 201.6 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD110-24 Input Voltage: 110 Output Voltage: 24 Output Current: 8.4A Output Power (W): 201.6 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF200W-SD110-48 Input Voltage: 110 Output Voltage: 48 Output Current: 4.2A Output Power (W): 201.6 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF240W-SD24-24 Input Voltage: 24 Output Voltage: 24 Output Current: 10A Output Power (W): 240 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF240W-SD48-24 Input Voltage: 48 Output Voltage: 24 Output Current: 10A Output Power (W): 240 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF240W-SD110-24 Input Voltage: 110 Output Voltage: 24 Output Current: 10A Output Power (W): 240 No. Outputs: S Case: Chassis Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48, 110
Input Voltage Range: 18~36, 36~72, 72~144
Input Frequency: 0 Hz
Output
Output Voltage: 5, 12, 24, 48
Output Current: 35A, 16.7A, 10A, 8.4A, 4.2A
Output Power (Watts): 175, 200.4, 201.6, 240
Output Trim/Adjustability: ±10%
Short Circuit Protection: Hiccup mode, automatic recovery
General
Efficiency: Up to 91%
Isolation: 1500VDC
Environmental
Operating Temperature: -20 to 50°C
Storage Temperature: -20 to 85°C
Physical
Weight: 1.83 lbs

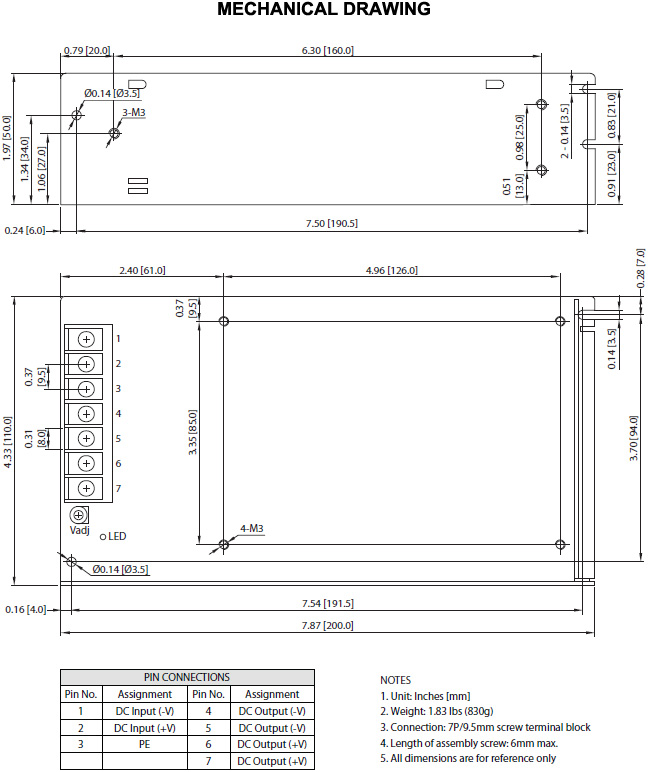

Dimensions: 7.87 x 4.33 x 1.97
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel.
2. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: GB4943, UL60950, EN60950
RoHS Compliance: Yes
