DCFVH1

The DCFVH1 series of DC/DC converters offers 1 watt of output power in a compact 0.77” x 0.9” x 0.49” through hole package. This series consists of unregulated single and dual output models with fixed input voltage. Each model features industry standard pin-out, isolation voltage of 5000VAC or 6000VDC, and high efficiency. This series is also RoHS compliant and meets EN60601-1, ANSI/AAMI ES60601-1, and IEC62368 standards.

• Fixed Input Voltage • Unregulated Dual and Single Outputs • High Efficiency • Isolation Voltage: 5000VAC or 6000VDC • Isolation Capacitance as Low as 4pF • Leakage Current <2µA • RoHS Compliance • Industry Standard Pin-Out • Continuous Short Circuit Protection • Creepage & Clearance Distance >8mm • Meets EN60601-1, ANSI/AAMI ES60601-1 Standard (2xMOPP) • Meets IEC62368 Standard
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DCFVH1-12S03 Input Voltage: 12 Output Voltage: 3.3 Output Current: 303mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12S05 Input Voltage: 12 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12S09 Input Voltage: 12 Output Voltage: 9 Output Current: 111mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12S12 Input Voltage: 12 Output Voltage: 12 Output Current: 84mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12S15 Input Voltage: 12 Output Voltage: 15 Output Current: 67mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12S24 Input Voltage: 12 Output Voltage: 24 Output Current: 42mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24S09 Input Voltage: 24 Output Voltage: 9 Output Current: 111mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 84mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 67mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24S24 Input Voltage: 24 Output Voltage: 24 Output Current: 42mA Output Power (W): 1 No. Outputs: S Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12D05 Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12D12 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±42mA Output Power (W): 1 No. Outputs: D Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-12D15 Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±34mA Output Power (W): 1 No. Outputs: D Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24D05 Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±100mA Output Power (W): 1 No. Outputs: D Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24D12 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±42mA Output Power (W): 1 No. Outputs: D Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
DCFVH1-24D24 Input Voltage: 24 Output Voltage: 24, -24 Output Current: ±34mA Output Power (W): 1 No. Outputs: D Case: Through Hole Size: 0.77" x 0.9" x 0.49" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24
Input Voltage Range: 10.8-13.2, 21.6-26.4
Input Filter: Capacitance Filter
Output
Output Voltage: 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15
Output Current: 303mA, 200mA, 111mA, 84mA, 67mA, 42mA, ±100mA, ±42mA, ±34mA
Output Power (Watts): 1
Short Circuit Protection: Continuous, Self Recovery
General
Efficiency: Up to 83%
Isolation: 5000VAC, 6000VDC
Environmental
Operating Temperature: -40 to +105°C
Storage Temperature: -55 to 125°C
Physical
Weight: 0.14oz (4.0g)

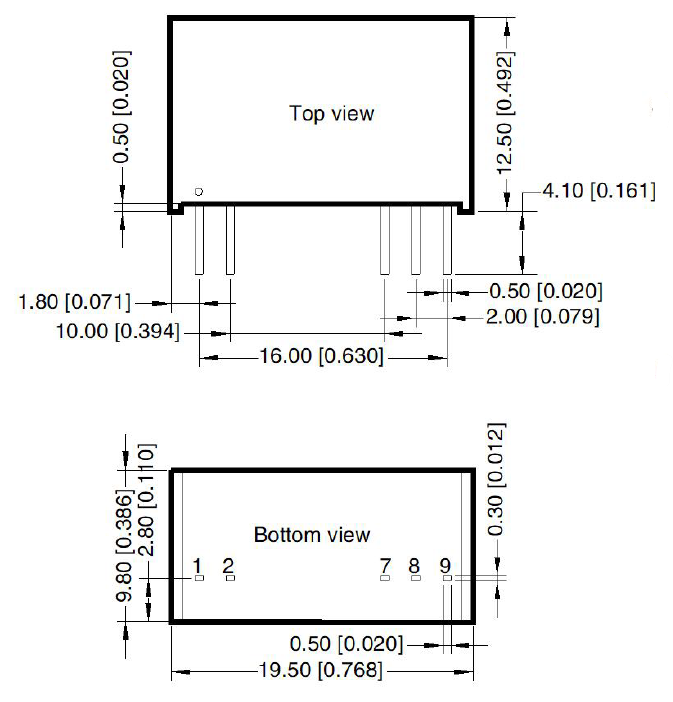

Dimensions: 0.77in x 0.9in x 0.49in (19.5mm x 9.8mm x 12.5mm)
Case Material: Black Plastic, Flame-Retardant and Heat-Resistant (UL94-V0)
Notes & safety
Notes: 1. Capacitive loads for positive and negative outputs are identical.
2. Contact factory for more details on the reflected ripple current test method.
3. ‘Parallel cable’ method is used for ripple and noise test. Contact factory for specific operation methods.
4. Leakage current and reinforced insulation is based on 250VAC. 50/60Hz system input voltage.
5. Refer to ‘EMC (Class B) compliance circuit’ for recommended circuit test.
6. If product is not operated within the required load range, the product performance cannot be guaranteed to comply with all parameters in the datasheet.
7. Maximum capacitive load offered were tested at input voltage range and full load.
8. Product customization is available. Contact factory for more information.
9. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN60601-1, ANSI/AAMI ES60601-1 (2xMOPP), IEC62368
RoHS Compliance: Yes
