DCEV1000

The DCEV1000 series of DC/DC converters offers up to 1000 watts of output power in a 4.6” x 2.4” x 0.55” industry standard full brick package. This series consists of a single output models with wide input voltage range and active current share. Each model in this series features high reliability, high efficiency, high power density, low ripple and noise, as well as protection against over current, short circuit, over voltage, over temperature, and input over voltage and under voltage conditions. This series is designed to meet RoHS5 and UL/IEC/EN60950/GB49943 standards.

• Wide Input Voltage Range • Industry Standard Full Brick Package • High Reliability & High Efficiency, & High Power Density • Designed to Meet RoHS5 • Active Current Share • Low Ripple & Noise • Over Current, Short Circuit, Over Voltage, and Over Temperature Protection • Input Over Voltage & Under Voltage Protection • Designed to meet UL/IEC/EN60950/GB49943
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCEV1000-500S12 Input Voltage: 500 Output Voltage: 12 Output Current: 70A Output Power (W): 840 No. Outputs: S Case: Through Hole Get a Quote
DCEV1000-500S28 Input Voltage: 500 Output Voltage: 28 Output Current: 35.7A Output Power (W): 1000 No. Outputs: S Case: Through Hole Get a Quote
DCEV1000-500S36 Input Voltage: 500 Output Voltage: 36 Output Current: 27.8A Output Power (W): 1000 No. Outputs: S Case: Through Hole Get a Quote
DCEV1000-500S48 Input Voltage: 500 Output Voltage: 48 Output Current: 20.83A Output Power (W): 1000 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 500
Input Voltage Range: 380~650
Remote ON/OFF: Yes
OVLO: See Data Sheet
UVLO: See Data Sheet
Output
Output Voltage: 12, 28, 36, 48
Voltage Accuracy: ±1%
Output Current: 20.83A, 27.8A, 35.7A, 70A
Output Power (Watts): 840, 1000
Output Trim/Adjustability: ±10%
Short Circuit Protection: Yes
Over Voltage Protection: Yes
Thermal Protection: Yes
General
Efficiency: Up to 94.5%
Isolation: Input to Output: 4250VDC
Input to Case: 3535VDC
Output to Case: 1500VDC
Environmental
Operating Temperature: 12VDC Output: -40 to +100ºC
28VDC Output: -40 to +80ºC
36VDC & 48VDC Output: -40 to +90ºC
Storage Temperature: -55 to +125ºC
Physical
Weight: 7.94oz (225g)

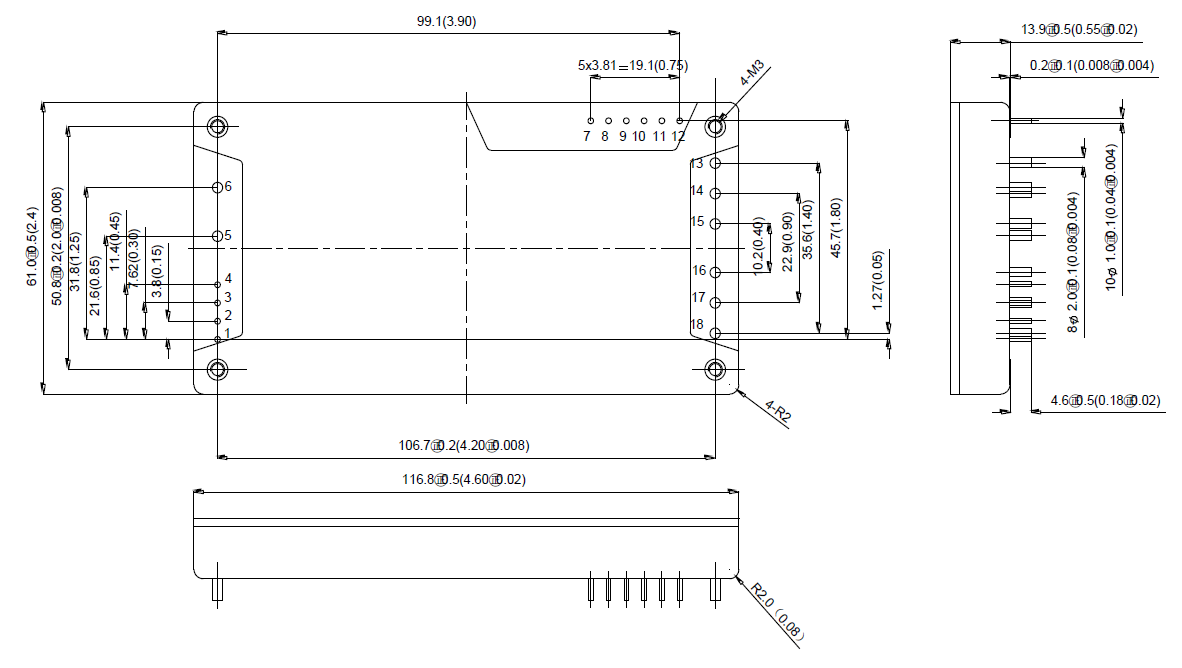

Dimensions: 4.6in x 2.4in x 0.55in (116.8mm x 61mm x 13.9mm)
Case Material: Plastic
Notes & safety
Notes: 1. Minimum external output capacitance required (solid capacitor or polymer capacitor)
2. Under conditions of the above configuration, testing in accordance with specified level, without any problems, the test can be directly judged through (PASS).
3. Under conditions of the above configuration, testing in accordance with specified level, if there is an output shutdown because of occurring power module OVP or LVP or power module failure because of device damage, the test is not passed (FAIL).
4. Under conditions of the above configuration, testing in accordance with specified level, a temporary output voltage fluctuation occurred. If the output voltage of the power module does not exceed the regulation accuracy, return to normal immediately when test stops, and there was no module reset, device damage, the test results can be judged through (PASS).
5. Under conditions of the above configuration, testing in accordance with specified level, a temporary output voltage fluctuation occurred. If output voltage fluctuation is out of regulation accuracy, it cannot directly determine whether it is OK in this case. We need further verification on application products.
6. This product is listed to applicable standards and requirements by UL
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: Designed to meet UL/IEC/EN60950/GB49943
RoHS Compliance: RoHS5
TUV Efficiency Level: TUV EN 60950-1
