The DCBB10A series consists of non-isolated buck-boost DC/DC in an industry standard 1/8 brick package and pin-out. This series consists of adjustable output voltage and current and a wide input voltage range of 9-60V. Features of this series include input under voltage protection, output short circuit and over temperature protection, and high efficiency. This series design refers to UL/EN62368 standards and is RoHS compliant.

• Input Voltage Range: 9-60V • Output Voltage Range: 0-60V • Output Current Range: 0-10A • Both Output Voltage and Current are Adjustable • High Efficiency • Input Under Voltage Protection • Output Short Circuit and Over Temperature Protection • Industry Standard 1/8 Brick Package and Pin Out • Design Refers to UL/EN62368 Standards
Part Number Setup:
“F” suffix to indicate heat sink mounting
“RS” suffix to indicate Resistance Set
DCBB10A-48S36F = Model with Heatsink
Power (W)
Case Size
DCBB10A-48S36 Input Voltage: 48 Output Voltage: 0-60 Output Current: 0-10A Output Power (W): 600 No. Outputs: S Case: Through Hole Size: 2.39" x 0.98" x 0.50" Get a Quote
Specification Value
Input Voltage (Nominal): 48
Input Voltage Range: 9~60
Input Filter: C Filter
Output Voltage: 0-60
Output Current: 0-10A
Output Power (Watts): 600
Short Circuit Protection: Constant Current Output, Continuous Self-Recovery
Thermal Protection: 120°C
Efficiency: Up to 95%
Isolation: 1500VDC
Operating Temperature: -40 to 105°C
Storage Temperature: -55 to 125°C
Weight: DCBB10A-48S36(RS): 1.87oz (53g)
DCBB10A-48S36F(RS): 2.05oz (58.2g)

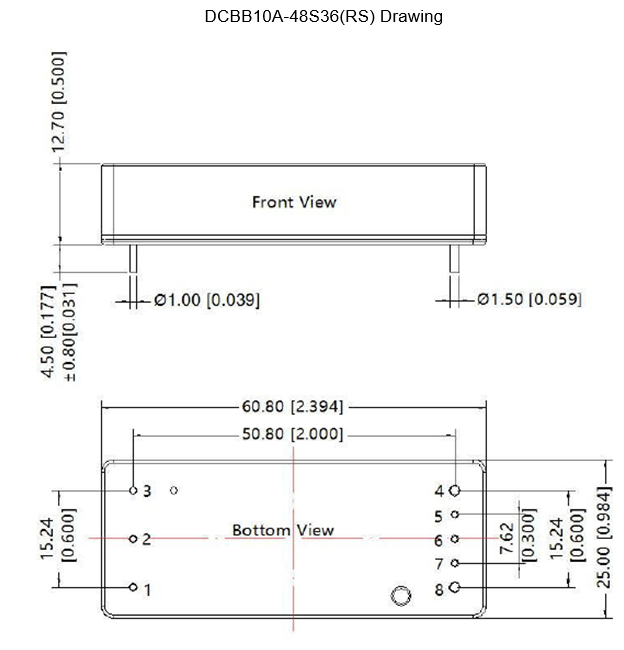

Dimensions: DCBB10A-48S36(RS); 2.39in x 0.98in x 0.50in (60.8mm x 25mm x 12.7mm)

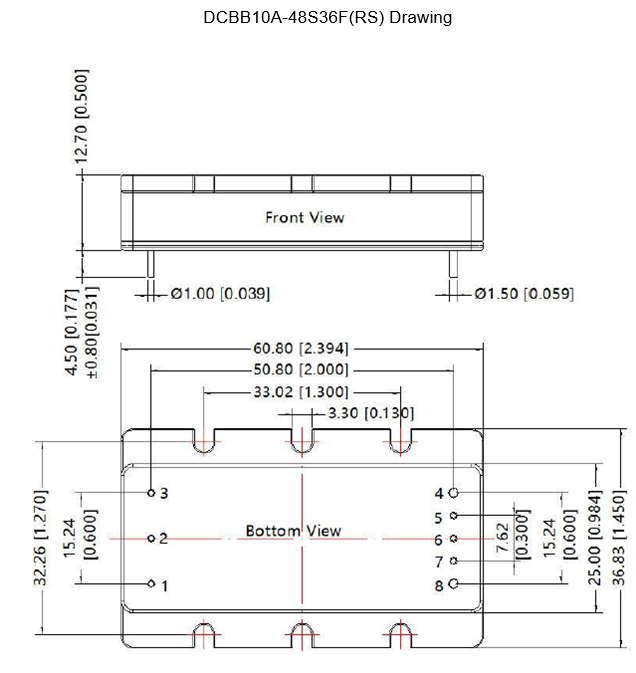

DCBB10A-48S36F(RS): 2.39in x 1.45in x 0.50in (60.8mm x 36.83mm x 12.70mm)
Case Material: Aluminum Alloy
Notes & safety
Notes: 1. Use “F” suffix to indicate heat sink mounting. Use “RS” suffix to indicate Resistance Set.
2. Exceeding maximum input voltage may cause permanent damage.
3. Efficiency is measured at nominal input voltage, nominal output voltage, and max output load.
4. The Ctrl pin voltage is referenced to input -Vin. When Pin of Vset and Iset are floating, there will be voltage and current output after power on. Please put the Ctrl pin in a high impedance state or connect to a high level before the product is powered on.
5. The product can work in constant current mode when the output voltage at 0-3.3V
6. Tip and barrel method is used for ripple & noise test, see Fig. 6. Contact factory for more specific information.
7. Over temperature protection is in the form of product output shutdown
8. The voltage of the Ctrl pin is relative to input pin GND.
9. This product is Listed to applicable standards and requirements by UL.
10. Product customization available.
11. Product should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: Design Refers to UL/EN62368 Standards
RoHS Compliance: Yes
