CAH

The CAH series of single, dual, and triple output dc/dc converters performs over an ultra-wide input voltage range (4:1), providing indefinite short-circuit and over-voltage protection. The CAH series design technology allows for up to 40 watts output power from a 3.0″ x 3.0″ x 0.55″, or 3.6″ x 3.0″ x 0.55″ baseplate. These current mode control forward converters are designed for improved transient response and reduced stress on switching components.

● Regulated Outputs ● Remote On/Off Control ● Industry Standard Pin-Out ● 500VDC Minimum I/O Isolation ● Redesigned for Higher Efficiency ● Ultra-Wide Input Voltage Range (4:1) ● Thermal Shutdown with Auto-Recovery ● Current Limiting Short Circuit Protection ● LC Input Filter for low Reflected Ripple Current ● Operating Temperature –40°C to +100°C Baseplate
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
CAH24S12-25 Input Voltage: 24 Output Voltage: 12 Output Current: 2A Output Power (W): 24 No. Outputs: S Case: Through Hole Get a Quote
CAH24S15-25 Input Voltage: 24 Output Voltage: 15 Output Current: 1.6A Output Power (W): 24 No. Outputs: S Case: Through Hole Get a Quote
CAH48S12-25 Input Voltage: 48 Output Voltage: 12 Output Current: 2A Output Power (W): 24 No. Outputs: S Case: Through Hole Get a Quote
CAH48S15-25 Input Voltage: 48 Output Voltage: 15 Output Current: 1.6A Output Power (W): 24 No. Outputs: S Case: Through Hole Get a Quote
CAH5S12-25 Input Voltage: 5 Output Voltage: 12 Output Current: 2A Output Power (W): 24 No. Outputs: S Case: Through Hole Get a Quote
CAH5S15-25 Input Voltage: 5 Output Voltage: 15 Output Current: 1.6A Output Power (W): 24 No. Outputs: S Case: Through Hole Get a Quote
CAH24S18-25 Input Voltage: 24 Output Voltage: 18 Output Current: 1.38A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH24S3.3-25 Input Voltage: 24 Output Voltage: 3.3 Output Current: 7.58A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH24S5-25 Input Voltage: 24 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH48S18-25 Input Voltage: 48 Output Voltage: 18 Output Current: 1.38A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH48S3.3-25 Input Voltage: 48 Output Voltage: 3.3 Output Current: 7.58A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH48S5-25 Input Voltage: 48 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH5D12-25 Input Voltage: 5 Output Voltage: 12, -12 Output Current: 1.04A Output Power (W): 25 No. Outputs: D Case: Through Hole Get a Quote
CAH5D15-25 Input Voltage: 5 Output Voltage: 15, -15 Output Current: 830A Output Power (W): 25 No. Outputs: D Case: Through Hole Get a Quote
CAH5D5-25 Input Voltage: 5 Output Voltage: 5, -5 Output Current: 2.5A Output Power (W): 25 No. Outputs: D Case: Through Hole Get a Quote
CAH5S18-25 Input Voltage: 5 Output Voltage: 18 Output Current: 1.38 Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH5S5-25 Input Voltage: 5 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH5S3.3-25 Input Voltage: 5 Output Voltage: 3.3 Output Current: 7.58A Output Power (W): 25 No. Outputs: S Case: Through Hole Get a Quote
CAH24D12-30 Input Voltage: 24 Output Voltage: 12, -12 Output Current: 1.25A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
CAH24D15-30 Input Voltage: 24 Output Voltage: 15, -15 Output Current: 1A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
CAH24T12-30 Input Voltage: 24 Output Voltage: 5, 12, -12 Output Current: 4A Output Power (W): 30 No. Outputs: T Case: Through Hole Get a Quote
CAH24T15-30 Input Voltage: 24 Output Voltage: 5, 15, -15 Output Current: 4A Output Power (W): 30 No. Outputs: T Case: Through Hole Get a Quote
CAH48D12-30 Input Voltage: 48 Output Voltage: 12, -12 Output Current: 1.25A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
CAH48D15-30 Input Voltage: 48 Output Voltage: 15, -15 Output Current: 1A Output Power (W): 30 No. Outputs: D Case: Through Hole Get a Quote
CAH48T12-30 Input Voltage: 48 Output Voltage: 5, 12, -12 Output Current: 4A Output Power (W): 30 No. Outputs: T Case: Through Hole Get a Quote
CAH48T15-30 Input Voltage: 48 Output Voltage: 5, 15, -15 Output Current: 4A Output Power (W): 30 No. Outputs: T Case: Through Hole Get a Quote
CAH24D12-40 Input Voltage: 24 Output Voltage: 12, -12 Output Current: 1.66A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CAH24D15-40 Input Voltage: 24 Output Voltage: 15, -15 Output Current: 1.33A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CAH24S12-40 Input Voltage: 24 Output Voltage: 12 Output Current: 3.3A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CAH24S15-40 Input Voltage: 24 Output Voltage: 15 Output Current: 2.66A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CAH24S18-40 Input Voltage: 24 Output Voltage: 18 Output Current: 2.22A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CAH24S5-40 Input Voltage: 24 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CAH48D12-40 Input Voltage: 48 Output Voltage: 12, -12 Output Current: 1.66A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CAH48D15-40 Input Voltage: 48 Output Voltage: 15, -15 Output Current: 1.33A Output Power (W): 40 No. Outputs: D Case: Through Hole Get a Quote
CAH48S12-40 Input Voltage: 48 Output Voltage: 12 Output Current: 3.3A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CAH48S15-40 Input Voltage: 48 Output Voltage: 15 Output Current: 2.66A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CAH48S18-40 Input Voltage: 48 Output Voltage: 18 Output Current: 2.22A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
CAH48S5-40 Input Voltage: 48 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 24, 48
Input Voltage Range: 18-75, 4.5-9, 9-36
Input Filter: LC Input Filter
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, -5, 12, -12, 15, -15, 18
Output Current: 7.58A, 5A, 2.5A, 2A, 1.04A, 1.6A, 830mA, 1.38A, 8A, 4A, 3.3A, 1.25A, 1.66A, 2.66A, 1.33A, 1A, 2.22A
Output Power (Watts): 24, 25, 30, 40
Short Circuit Protection: Continuous, Hiccup Mode
Over Voltage Protection: Zener Clamp
General
Efficiency: 85% typ.
Isolation: 500VDC
Environmental
Operating Temperature: -40 - +100°C Baseplate
Storage Temperature: -55 to +100°C
Physical
Weight: 7 oz.

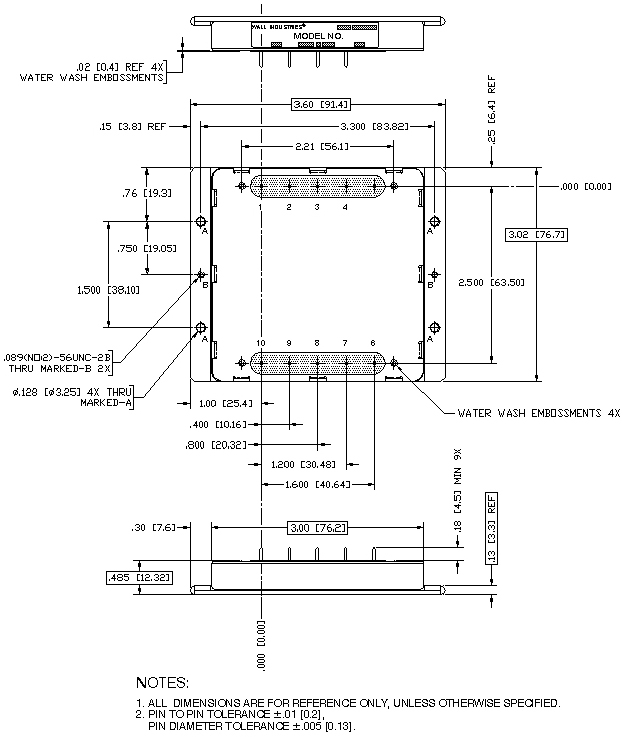

Dimensions: Without Baseplate: 3.02" x 3.02" x 0.55" (76.7 x 76.7 x 13.97 mm)
With Baseplate: 3.6" x 3.0" x 0.55" (91.4 x 76.7 x 13.97 mm)
Case Material: Black Coated Metal
Shielding: Six-Sided
Notes & safety
Notes: 1. All case and pin-to-case dimensions for reference only, unless noted otherwise.
2. Baseplate protudes 0.02", two sides.
3. PC pins 0.04" diameter by 0.18" long minimum: typical nine places.
4. Pin to pin tolerance ±0.01". Pin dimension tolerance ±0.005".
5. 10% minimum load required on outputs. Singles: ±1% min. to full load. Duals: ±1% min. to full load (balanced) ±5% min. to max load (unbalanced). Triples: ±1% min. to full load (main output) ±5% min. to full load aux (unbalanced).
6. Significant capacitive load may inhibit start-up and operation, consult factory.
7. Measured with 0.1uF across output.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL60950-5, EN60950-5, IEC60950-5
