WMSAW6USB

The WMSAW6USB series of Class II AC/DC wall mount power supplies provides up to 6 Watts of output power. This series consists of single output models with an input voltage range of 100-240VAC and a USB type output connector. These supplies are protected against over voltage, over current, and short circuit conditions. The WMSAW6USB series is RoHS and CEC/Energy Star Level VI compliant (except for 12V models) and has UL/cUL, FCC, CE, GS, EUP, CB, BS1363, SAA, CCC, PSE, MEPS, and C-TICK safety approvals. Vertical or horizontal package types are available for this series as well as United States, United Kingdom, Europe, China, Australia, and Japan AC plugs.

• Class II • Single Outputs • RoHS Compliant • 100-240VAC Input Voltage Range • Low Standby Power • CEC / Energy Star Level VI (Except for 12V models) Compliant • Vertical and Horizontal Types Available • USB Type Output Connector • Black (Standard) or White Case Colors Available • Over Voltage, Over Current, & Short Circuit Protection • UL/cUL, FCC, CE, GS, EUP, CB, BS1363, SAA, CCC, PSE, MEPS, & C-TICK Safety Approvals • United States, United Kingdom, Europe, China, Australia, and Japan AC Plug Types Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMSAW205USBV-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 500mA Output Power (W): 2.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW205USBH-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 500mA Output Power (W): 2.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW306USBV-xy Input Voltage: 100~240 Output Voltage: 6 Output Current: 500mA Output Power (W): 3 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW306USBH-xy Input Voltage: 100~240 Output Voltage: 6 Output Current: 500mA Output Power (W): 3 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW405USBV-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 800mA Output Power (W): 4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW405USBH-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 800mA Output Power (W): 4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW409USBV-xy Input Voltage: 100~240 Output Voltage: 9 Output Current: 500mA Output Power (W): 4.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW409USBH-xy Input Voltage: 100~240 Output Voltage: 9 Output Current: 500mA Output Power (W): 4.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW406USBV-xy Input Voltage: 100~240 Output Voltage: 6 Output Current: 800mA Output Power (W): 4.8 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW406USBH-xy Input Voltage: 100~240 Output Voltage: 6 Output Current: 800mA Output Power (W): 4.8 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW505USBV-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW505USBH-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW509USBV-xy Input Voltage: 100~240 Output Voltage: 9 Output Current: 600mA Output Power (W): 5.4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW509USBH-xy Input Voltage: 100~240 Output Voltage: 9 Output Current: 600mA Output Power (W): 5.4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW605USBV-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW606USBV-xy Input Voltage: 100~240 Output Voltage: 6 Output Current: 1000mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW675USBV-xy Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 800mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW612USBV-xy Input Voltage: 100~240 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW605USBH-xy Input Voltage: 100~240 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW606USBH-xy Input Voltage: 100~240 Output Voltage: 6 Output Current: 1000mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW675USBH-xy Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 800mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW612USBH-xy Input Voltage: 100~240 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 6, 7.5, 9, 12
Voltage Accuracy: ±5%
Output Current: 500mA, 600mA, 800mA, 1000mA, 1200mA
Output Power (Watts): 2.5, 3, 4, 4.5, 4.8, 5, 5.4, 6
Short Circuit Protection: Output shut-down; Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Isolation: Input to Output: 3000VAC (10mA / 60 sec)
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 60°C
Physical
Weight: Horizontal Type: 1.52oz (43g)
Verticall Type: 1.59oz (45g)

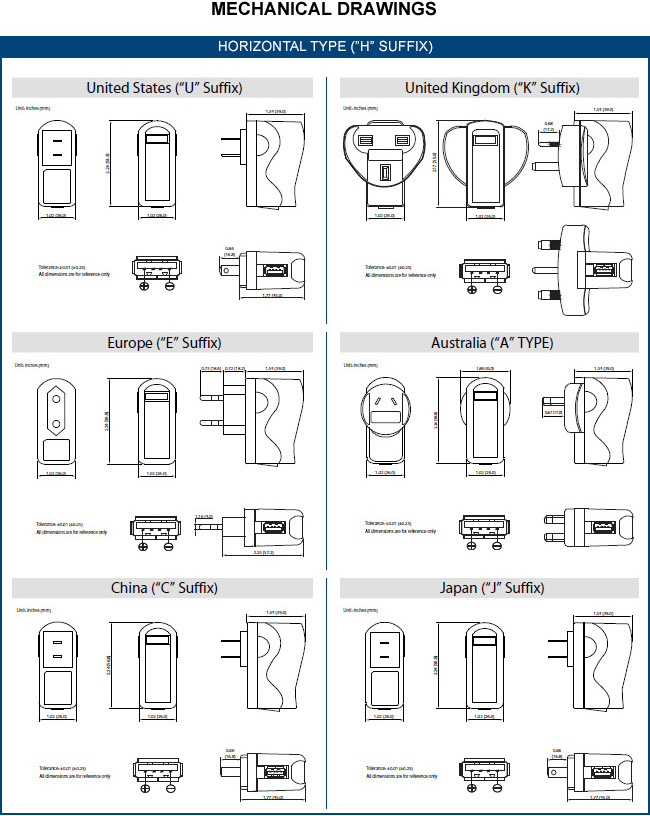

Dimensions: Horizontal Type: 2.24" x 1.02" x 1.54" (56.8 x 26.0 x 39.0 mm)

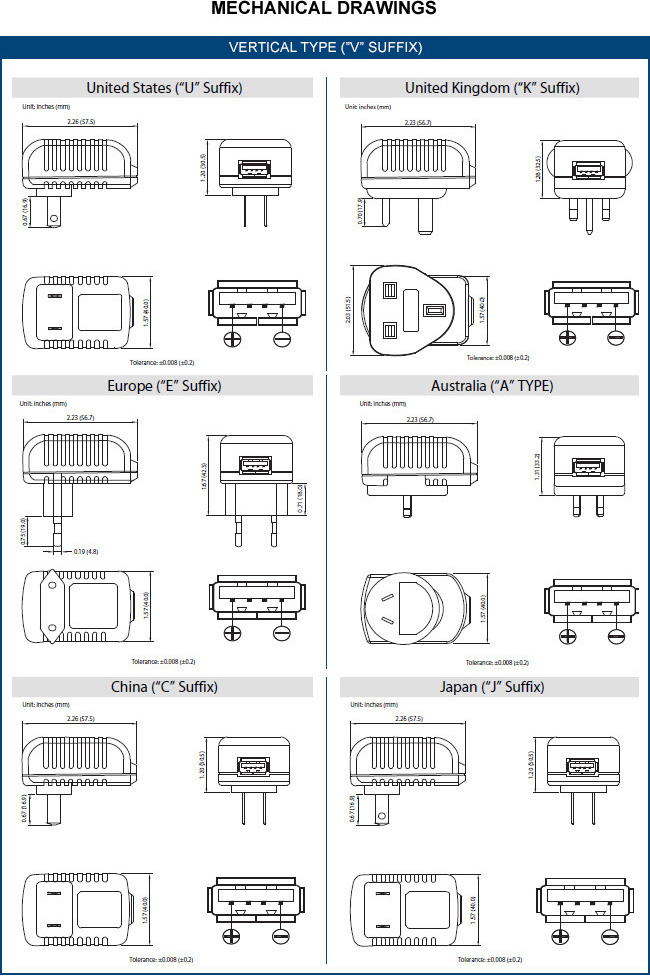

Vertical Type: 2.26" x 1.57" x 1.20" (57.5 x 40.0 x 30.5 mm)
Notes & safety
Notes: 1. The “x” in the model number represents the type of plug: it can be “U” for United States type, “K” for United Kingdom type, “E” for Europe type, “A” for Australia type, “C” for China type, and “J” for Japan type. The “y” in the model represents the color of the case: it can be “W” for a white case or leave blank for a black case.
2. Ripple and noise is measured at 20MHz limited bandwidth with 0.1µF ceramic and 10µF electrolytic capacitors across the output.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, FCC, CE, GS, EUP, CB, BS1363, SAA, CCC, PSE, MEPS, C-TICK
RoHS Compliance: Yes
Energy Star Compliance: Level V, VI
