WMSAW6

The WMSAW6 series of Class II AC/DC wall mount power supplies provides up to 6 Watts of output power. This series has single output models with an input voltage range of 100-240VAC. These supplies are protected against over voltage, over current, and short circuit conditions. The WMSAW6 series is RoHS and CEC/Energy Star Level V compliant (except for 12V models) and has UL/cUL, FCC, CE, GS, EUP, CB, BS1363, SAA, CCC, PSE, MEPS, and C-TICK safety approvals. Vertical or horizontal package types are available for this series as well as United States, United Kingdom, Europe, China, Australia, Japan, and Korea AC plug types. Several output connector options are also available. Please contact the factory for ordering details.

• Class II • Single Outputs • RoHS Compliant • 100-240VAC Input Voltage Range • 2.5~6 Watts Output Power • CEC / Energy Star Level VI Compliant (Except 12V Models) • 0°C to +40° Operating Temperature Range • Very Low Standby Power • Vertical and Horizontal Types Available • Several Output Connector Options Available • Over Voltage, Over Current, & Short Circuit Protection • UL/cUL, FCC, CE, GS, EUP, CB, BS1363, SAA, CCC, PSE, MEPS, KC, & C-TICK Safety Approvals • United States, United Kingdom, Europe, China, Australia, Japan, and Korea AC Plug Types Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMSAW205V-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 500mA Output Power (W): 2.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW205H-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 500mA Output Power (W): 2.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW306V-x Input Voltage: 100~240 Output Voltage: 6 Output Current: 500mA Output Power (W): 3 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW306H-x Input Voltage: 100~240 Output Voltage: 6 Output Current: 500mA Output Power (W): 3 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW405V-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 800mA Output Power (W): 4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW405H-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 800mA Output Power (W): 4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW409V-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 500mA Output Power (W): 4.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW409H-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 500mA Output Power (W): 4.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW406V-x Input Voltage: 100~240 Output Voltage: 6 Output Current: 800mA Output Power (W): 4.8 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW406H-x Input Voltage: 100~240 Output Voltage: 6 Output Current: 800mA Output Power (W): 4.8 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW505V-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW505H-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW509V-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 600mA Output Power (W): 5.4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW509H-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 600mA Output Power (W): 5.4 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW605V-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW606V-x Input Voltage: 100~240 Output Voltage: 6 Output Current: 1000mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW675V-x Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 800mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW612V-x Input Voltage: 100~240 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW605H-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW606H-x Input Voltage: 100~240 Output Voltage: 6 Output Current: 1000mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW675H-x Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 800mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW612H-x Input Voltage: 100~240 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 6, 7.5, 9, 12
Voltage Accuracy: ±5%
Output Current: 500mA, 600mA, 800mA, 1000mA, 1200mA
Output Power (Watts): 2.5, 3, 4, 4.5, 4.8, 5, 5.4, 6
Short Circuit Protection: Output shut-down; Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Isolation: Input to Output: 3000VAC (10mA/60 sec)
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 60°C
Physical
Weight: Horizontal Type: 2.93oz (83g)
Vertical Type: 2.65oz (75g)

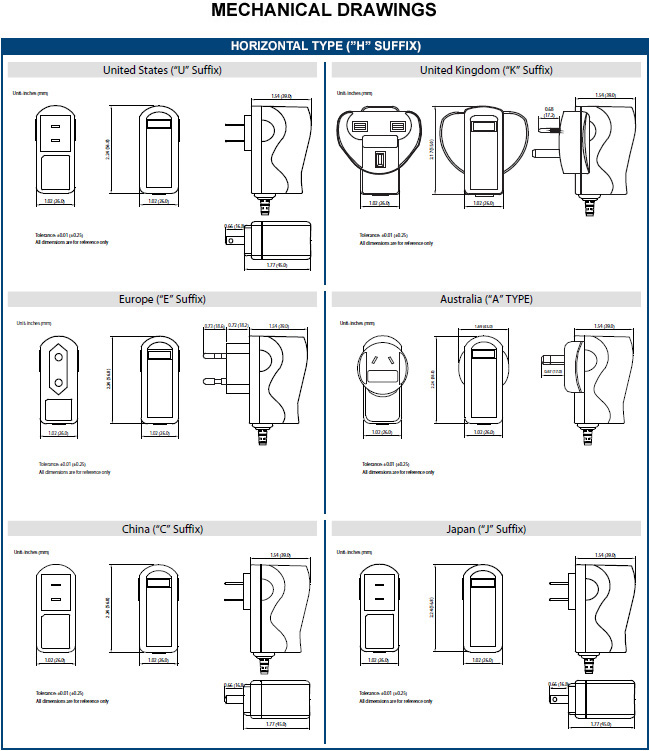

Dimensions: Horizontal Type: 2.24" x 1.02" x 1.54" (56.8 x 26.0 x 39.0 mm)
Vertical Type: 2.23" x 1.57" x 1.16" (56.7 x 40.0 x 29.4 mm)
Notes & safety
Notes: 1. The “x” in the model number represents the type of plug: “U” for United States type, “K” for United Kingdom type, “E” for Europe type, “A” for Australia type, “C” for China type, “J” for Japan type, and “KO” for Korea type.
2. Ripple and noise is measured at 20MHz limited bandwidth with 0.1µF ceramic and 10µF electrolytic capacitors across the output
3. Optional output connectors available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, FCC, CE, GS, EUP, CB, BS1363, SAA, CCC, PSE, MEPS, KC, C-TICK
RoHS Compliance: Yes
Energy Star Compliance: Level V, VI
