WMICP48

The WMICP48 series of Class II wall mount AC/DC power supplies delivers up to 48 Watts of output power in a 3.82” x 1.77” x 1.48” package. Single output models are available from 5VDC to 24VDC with an input voltage range of 90-264VAC. These supplies are protected against over voltage, over current, and short circuit conditions. The WMICP48 series is RoHS and CEC/ Energy Star Level V compliant. These supplies also meet UL60950 and FCC Part 15 regulatory standards. US, EU, UK, AUS, and JP interchangeable plugs are available for this series.

• Up to 48 Watts of Output Power • Lightweight and Compact • Universal Input of 100~240VAC 50/60Hz • High Efficiency: V • Short Circuit, Over Voltage, Over Current Protection • US, EU, BS, AU, and JP interchangeable plugs available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMICP2505U Input Voltage: 90~264 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP2505K Input Voltage: 90~264 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP2505E Input Voltage: 90~264 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP2505A Input Voltage: 90~264 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP2505J Input Voltage: 90~264 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3612U Input Voltage: 90~264 Output Voltage: 12 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3624U Input Voltage: 90~264 Output Voltage: 24 Output Current: 1.5A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3612K Input Voltage: 90~264 Output Voltage: 12 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3624K Input Voltage: 90~264 Output Voltage: 24 Output Current: 1.5A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3612E Input Voltage: 90~264 Output Voltage: 12 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3624E Input Voltage: 90~264 Output Voltage: 24 Output Current: 1.5A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3612A Input Voltage: 90~264 Output Voltage: 12 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3624A Input Voltage: 90~264 Output Voltage: 24 Output Current: 1.5A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3612J Input Voltage: 90~264 Output Voltage: 12 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP3624J Input Voltage: 90~264 Output Voltage: 24 Output Current: 1.5A Output Power (W): 36 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4509U Input Voltage: 90~264 Output Voltage: 9 Output Current: 5A Output Power (W): 45 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4509K Input Voltage: 90~264 Output Voltage: 9 Output Current: 5A Output Power (W): 45 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4509E Input Voltage: 90~264 Output Voltage: 9 Output Current: 5A Output Power (W): 45 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4509A Input Voltage: 90~264 Output Voltage: 9 Output Current: 5A Output Power (W): 45 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4509J Input Voltage: 90~264 Output Voltage: 9 Output Current: 5A Output Power (W): 45 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4812U Input Voltage: 90~264 Output Voltage: 12 Output Current: 4A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4824U Input Voltage: 90~264 Output Voltage: 24 Output Current: 2A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4812K Input Voltage: 90~264 Output Voltage: 12 Output Current: 4A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4824K Input Voltage: 90~264 Output Voltage: 24 Output Current: 2A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4812E Input Voltage: 90~264 Output Voltage: 12 Output Current: 4A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4824E Input Voltage: 90~264 Output Voltage: 24 Output Current: 2A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4812A Input Voltage: 90~264 Output Voltage: 12 Output Current: 4A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4824A Input Voltage: 90~264 Output Voltage: 24 Output Current: 2A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4812J Input Voltage: 90~264 Output Voltage: 12 Output Current: 4A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMICP4824J Input Voltage: 90~264 Output Voltage: 24 Output Current: 2A Output Power (W): 48 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 9, 12, 24
Voltage Accuracy: ±10%
Output Current: 5A, 4A, 3A, 2A, 1.5A
Output Power (Watts): 25, 36, 45, 48
Short Circuit Protection: Output shut-down; Automatic Recovery
Over Voltage Protection: Output shut-down; Automatic Recovery
General
Efficiency: 75%
Isolation: 3000VAC
Environmental
Operating Temperature: -20 to 40°C
Storage Temperature: -20 to 75°C
Physical
Weight: 8.75oz (248g)

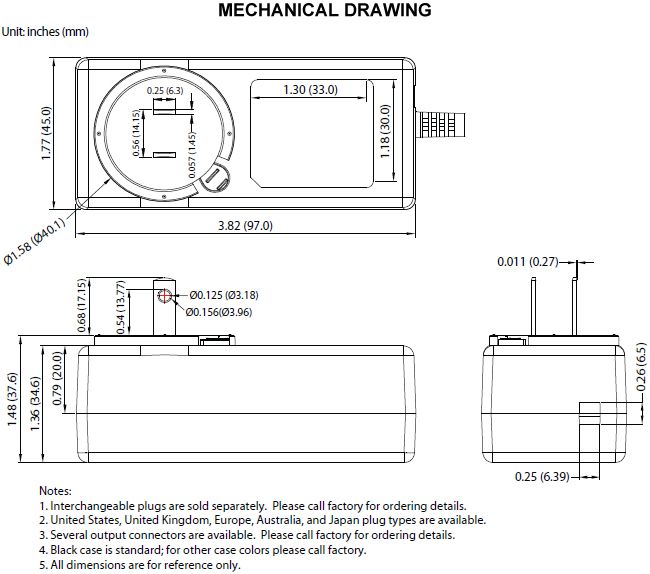

Dimensions: 3.82" x 1.77" x 1.48" (97.0 x 45.0 x 37.6 mm)
Notes & safety
Notes: (1) Ripple and noise is measured at 20MHz limited bandwidth with 0.1µF ceramic and 10µF electrolytic capacitors across the output.
Percentage of Output Voltage
(2) Interchangeable plugs are sold separately. Please call factory for ordering details
(3) Note: WMICP48-xxx-yyyy
xxx- 3 digits indicates the output voltage in V after being divided by 10. The minimum step is 0.1V e.g. 050=5.0V, 240=24V
yyyy- 4 digits indicates the output current in mA. The minimum step is 1mA e.g. 0500=500mA, 5000=5000mA
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: CE, GS, UL, FCC, SAA, C-Tick, PSE, BS1363, CB, Efficiency ERP V
RoHS Compliance: Yes
Energy Star Compliance: Level V
