WMIBA018

The WMIBA018 series of AC/DC wall mount power supplies provides 18 watts of continuous output power. The series consists of models with a 90~264VAC input voltage range. All units are RoHS and Level VI Efficiency compliant and has UL, cUL, BSMI, CCC, PSE, RCM, CE, and FCC safety approvals. The WMIBA018 series offers 5 plug types: US, UK, EU, SAA, and CN.

• Universal Input 90~264VAC • DoE/ErP Level VI Efficiency Compliant • RoHS Compliant • Interchangeable Plugs: US, UK, EU, SAA, CN • MTBF 50,000 hours • Class II
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMIBA018005X Input Voltage: 90~264 Output Voltage: 5 Output Current: 3.0A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018089X Input Voltage: 90~264 Output Voltage: 8.9 Output Current: 3.0A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018009X Input Voltage: 90~264 Output Voltage: 9 Output Current: 2A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018119X Input Voltage: 90~264 Output Voltage: 11.9 Output Current: 2A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018012X Input Voltage: 90~264 Output Voltage: 12 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018179X Input Voltage: 90~264 Output Voltage: 17.9 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018018X Input Voltage: 90~264 Output Voltage: 18 Output Current: 1A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018239X Input Voltage: 90~264 Output Voltage: 23.9 Output Current: 1A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018024X Input Voltage: 90~264 Output Voltage: 24 Output Current: 0.75A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018349X Input Voltage: 90~264 Output Voltage: 34.9 Output Current: 0.75A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018035X Input Voltage: 90~264 Output Voltage: 35 Output Current: 0.51A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIBA018056X Input Voltage: 90~264 Output Voltage: 56 Output Current: 0.51A Output Power (W): 18 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 50/60Hz
Output
Output Voltage: 5, 8.9, 9, 11.9, 12, 17.9, 18, 23.9, 24, 34.9, 35, 56
Output Current: 0.51A, 0.75A, 1A, 1.5A, 2A, 3A
Output Power (Watts): 18
Short Circuit Protection: Automatic Recovery
General
Efficiency: 85%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical
Weight: US Plug: 4.21oz
Australian Plug: 5.68oz
UK Plug: 4.74oz

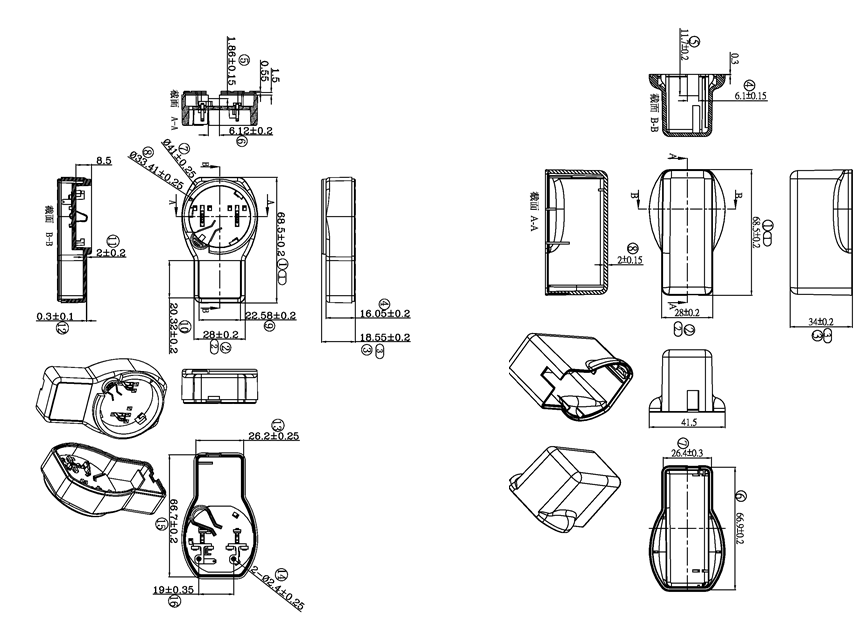

Dimensions: 2.69in x 1.10in x 0.73in (68.5mm x 28mm x 18.55mm)
Notes & safety
Notes: 1. “X” in model number stands for plug type. “X” can either be “U” for US plug, “E” for EU plug, “K” for UK plug, “S” for SAA plug, or “CN” for CN plug.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL, cUL, BSMI, CCC, PSE, RCM, CE, and FCC
RoHS Compliance: Yes
Energy Star Compliance: Level VI
