PSSCT
The PSSCT series of AC/DC switching power supplies offers 60 watts of output power in an open frame constructed design. All models have triple outputs and a 100~264VAC input voltage range. These supplies also have UL60950, TUV EN60950, and CE safety approvals. All models are RoHS compliant and have over load and over voltage protection
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSCT601 | Input Voltage: 100~264 | Output Voltage: 3.3, 5, 12 | Output Current: 7A, 3A, 2A | Output Power (W): 60 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.57" | Get a Quote |
| PSSCT62 | Input Voltage: 100~264 | Output Voltage: 5, 12, -5 | Output Current: 7A, 3A, 0.7A | Output Power (W): 60 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.77" | Get a Quote |
| PSSCT63 | Input Voltage: 100~264 | Output Voltage: 5, 12, -12 | Output Current: 7A, 3A, 0.7A | Output Power (W): 60 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.77" | Get a Quote |
| PSSCT64 | Input Voltage: 100~264 | Output Voltage: 5, 15, -15 | Output Current: 7A, 2.8A, 0.7A | Output Power (W): 60 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.77" | Get a Quote |
| PSSCT65 | Input Voltage: 100~264 | Output Voltage: 5, 24, -5 | Output Current: 7A, 1.5A, 0.7A | Output Power (W): 60 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.77" | Get a Quote |
| PSSCT66 | Input Voltage: 100~264 | Output Voltage: 5, 24, -12 | Output Current: 7A, 1.5A, 0.7A | Output Power (W): 60 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.77" | Get a Quote |
| PSSCT67 | Input Voltage: 100~264 | Output Voltage: 5, 24, 12 | Output Current: 7A, 1.5A, 0.7A | Output Power (W): 60 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.77" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, -5, -12, -15 |
| Output Current: | 7A, 3A, 2A, 0.7A, 2.8A, 1.5A |
| Output Power (Watts): | 60 |
| Over Voltage Protection: | 110~130% |
| General | |
| Efficiency: | 65% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -10 to 70°C |
| Physical | |
| Weight: | - |

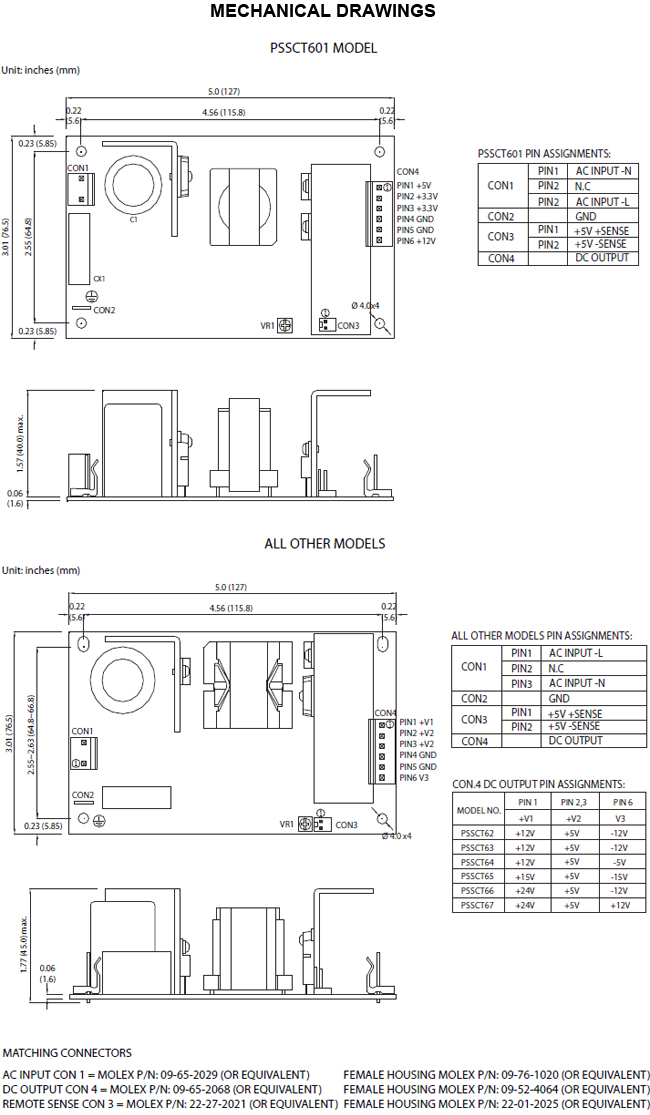

| Dimensions: | PSSCT601 Model: 5.0" x 3.0" x 1.57" (127 x 76.5 x 40 mm) All Other Models: 5.0" x 3.0" x 1.77" (127 x 76.5 x 45 mm) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise is measured at 20MHz bandwidth with a tantalum 10µF in parallel with a 0.1µF ceramic capacitor. 2. The total output power on all the outputs should not exceed 60W. 3. Minimum loads are required for these power supplies. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950, CSA C22.2-No.60950, TUV EN60950 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950 |
