The PSPDF-100 series of AC/DC switching power supplies offers up to 103.2 Watts of output power in a 7.64” x 3.90” x 1.97” enclosed case. All models have a single output and a universal AC input voltage range of 85~264VAC. Some features include built-in active PFC, output adjustability, and over load, over voltage, and short circuit protection. These supplies are RoHS compliant and have UL/cUL, CB, and CE safety approvals. All models are 100% full load burn-in tested.

• Single Output • RoHS Compliant • Built-in Active PFC Function, PF > 0.93 • Universal AC Input Range (Full Range) • High Efficiency and High Reliability • Over Voltage, Over Load, and Short Circuit Protected • All Using 105°C Long Life Electrolytic Capacitors • Up to 103.2W Output Power • 100% Full Load Burn-in Tested • Output Voltages Available from 5VDC to 48VDC • Dimensions: 7.64” x 3.90” x 1.97” • Output Voltage Adjustability
Power (W)
PSPDF-100-5 Input Voltage: 85~264 Output Voltage: 5 Output Current: 20A Output Power (W): 100 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDF-100-15 Input Voltage: 85~264 Output Voltage: 15 Output Current: 6.7A Output Power (W): 100.5 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDF-100-24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 4.2A Output Power (W): 100.8 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDF-100-12 Input Voltage: 85~264 Output Voltage: 12 Output Current: 8.5A Output Power (W): 102 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDF-100-48 Input Voltage: 85~264 Output Voltage: 48 Output Current: 2.15A Output Power (W): 103.2 No. Outputs: S Case: Enclosed Case Get a Quote
Specification Value
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
PFC: 0.98, 0.93
Input Frequency: 47-63Hz
Output Voltage: 5, 12, 15, 24, 48
Voltage Accuracy: 5V, 12V, & 15V output models: ±2.0% 24V & 48V output models: ±1.0%
Output Current: 20A, 8.5A, 6.7A, 4.2A, 2.15A
Output Power (Watts): 100, 100.5, 100.8, 102, 103.2
Output Trim/Adjustability: See Data Sheet
Short Circuit Protection: Long-term mode, Automatic Recovery
Over Voltage Protection: 110~150%
Efficiency: Up to 87%
Isolation: 3000VAC

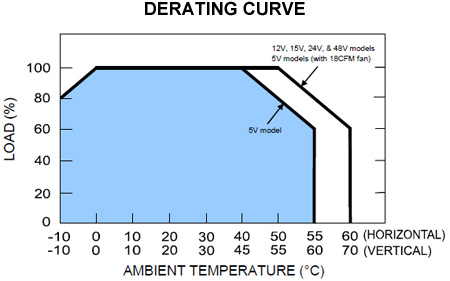

Operating Temperature: -10 to 60°C
Storage Temperature: -20 to 85°C
Weight: 1.7 lbs (760g)

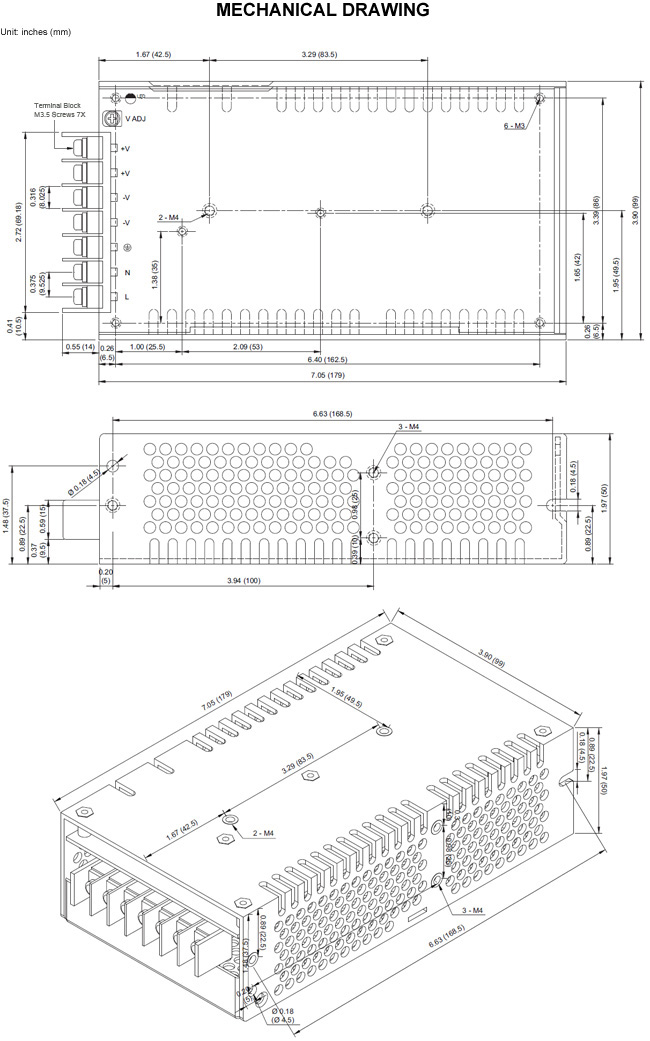

Dimensions: 7.64" x 3.90" x 1.97" (194 x 99 x 50 mm)
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with 0.1μF and 47μF capacitors in parallel.
2. The SPS is considered a component which will be installed into final equipment. The final equipment must be
re-confirmed that it still meets EMC directives.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, EN60950-1: 2006
RoHS Compliance: Yes
