PSLSU85
The PSLSU85 series of AC/DC LED switching power supplies provides a maximum power rating of 85W, with constant current ratings ranging from 0.1~4.04A and constant voltage ranging from 21~50VDC. These supplies have a 90-305VAC input voltage range, active PFC, an internal EMI filter, and high efficiency up to 92%. These supplies are housed in a 6.81” x 1.94” x 1.36” enclosure, rated to IP68 waterproof standards, which makes them suitable for harsh environments in industrial or commercial outdoor lighting applications. This series is RoHS compliant and has over voltage, over current, and over temperature protection. These supplies are available with a mounting flange (“A” Type) or without the mounting flange (“B” type).
• Class I • RoHS Compliant • IP68 Rated • C.C. Mode and C.V. Mode • Constant Current: 0.1~4.04A • Constant Voltage: 21~50VDC • 4242VDC I/O Isolation • Active Power Factor Correction • 85 Watts Maximum Output Power • Wide Input Voltage Range: 90~305VAC, 47~63Hz • Internal EMI Filter • Over Voltage, Over Current, & Over Temp. Protection • Up to 92% High Efficiency • Two types of Mechanical Options Available
Part Number Setup:
X: “A” for models with a mounting flange or “B” for models without a mounting flange.
X: “A” for models with a mounting flange or “B” for models without a mounting flange.
Example:
PSLSU85A-108-23V = 23V Model with mounting flange
PSLSU85A-108-23V = 23V Model with mounting flange
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLSU85X-108-21V | Input Voltage: 90~305 | Output Voltage: 21 | Output Current: 0.1 ~ 4.04 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-108-22V | Input Voltage: 90~305 | Output Voltage: 22 | Output Current: 0.1 ~ 3.86 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-108-23V | Input Voltage: 90~305 | Output Voltage: 23 | Output Current: 0.1 ~ 3.69 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-108-24V | Input Voltage: 90~305 | Output Voltage: 24 | Output Current: 0.1 ~ 3.54 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-108-25V | Input Voltage: 90~305 | Output Voltage: 25 | Output Current: 0.1 ~ 3.40 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-108-26V | Input Voltage: 90~305 | Output Voltage: 26 | Output Current: 0.1 ~ 3.26 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-108-27V | Input Voltage: 90~305 | Output Voltage: 27 | Output Current: 0.1 ~ 3.14 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-109-27V | Input Voltage: 90~305 | Output Voltage: 27 | Output Current: 0.1 ~ 3.14 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-109-28V | Input Voltage: 90~305 | Output Voltage: 28 | Output Current: 0.1 ~ 3.03 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-109-29V | Input Voltage: 90~305 | Output Voltage: 29 | Output Current: 0.1 ~ 2.93 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-109-30V | Input Voltage: 90~305 | Output Voltage: 30 | Output Current: 0.1 ~ 2.83 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-109-31V | Input Voltage: 90~305 | Output Voltage: 31 | Output Current: 0.1 ~ 2.74 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-109-32V | Input Voltage: 90~305 | Output Voltage: 32 | Output Current: 0.1 ~ 2.65 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-109-33V | Input Voltage: 90~305 | Output Voltage: 33 | Output Current: 0.1 ~ 2.57 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-33V | Input Voltage: 90~305 | Output Voltage: 33 | Output Current: 0.1 ~ 2.57 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-34V | Input Voltage: 90~305 | Output Voltage: 34 | Output Current: 0.1 ~ 2.50 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-35V | Input Voltage: 90~305 | Output Voltage: 35 | Output Current: 0.1 ~ 2.42 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-36V | Input Voltage: 90~305 | Output Voltage: 36 | Output Current: 0.1 ~ 2.36 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-37V | Input Voltage: 90~305 | Output Voltage: 37 | Output Current: 0.1 ~ 2.29 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-38V | Input Voltage: 90~305 | Output Voltage: 38 | Output Current: 0.1 ~ 2.23 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-39V | Input Voltage: 90~305 | Output Voltage: 39 | Output Current: 0.1 ~ 2.17 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-110-40V | Input Voltage: 90~305 | Output Voltage: 40 | Output Current: 0.1 ~ 2.12 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-40V | Input Voltage: 90~305 | Output Voltage: 40 | Output Current: 0.1 ~ 2.12 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-41V | Input Voltage: 90~305 | Output Voltage: 41 | Output Current: 0.1 ~ 2.07 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-42V | Input Voltage: 90~305 | Output Voltage: 42 | Output Current: 0.1 ~ 2.02 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-43V | Input Voltage: 90~305 | Output Voltage: 43 | Output Current: 0.1 ~ 1.97 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-44V | Input Voltage: 90~305 | Output Voltage: 44 | Output Current: 0.1 ~ 1.93 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-45V | Input Voltage: 90~305 | Output Voltage: 45 | Output Current: 0.1 ~ 1.88 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-46V | Input Voltage: 90~305 | Output Voltage: 46 | Output Current: 0.1 ~ 1.84 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-47V | Input Voltage: 90~305 | Output Voltage: 47 | Output Current: 0.1 ~ 1.80 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-48V | Input Voltage: 90~305 | Output Voltage: 48 | Output Current: 0.1 ~ 1.77 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-49V | Input Voltage: 90~305 | Output Voltage: 49 | Output Current: 0.1 ~ 1.73 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| PSLSU85X-111-50V | Input Voltage: 90~305 | Output Voltage: 50 | Output Current: 0.1~ 1.70 A | Output Power (W): 85 | No. Outputs: S | Case: LED | Size: 6.81" x 1.94" x 1.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~305 |
| PFC: | 0.90~1.0 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50 |
| Output Current: | 0.1~1.70A, 0.1~1.73A, 0.1~1.77A, 0.1~1.80A, 0.1~1.84A, 0.1~1.88A, 0.1~0.93A, 0.1~1.97A, 0.1~2.02A, 0.1~2.07A, 0.1~2.12A, 0.1~2.17A, 0.1~2.23A, 0.1~2.29A, 0.1~2.36A, 0.1~2.42A, 0.1~2.50A, 0.1~2.57A, 0.1~2.65A, 0.1~2.74A, 0.1~2.83A, 0.1~2.93A, 0.1~3.03A, 0.1~3.14A, 0.1~3.26A, 0.1~3.40A, 0.1~3.54A, 0.1~3.69A, 0.1~3.86A, 0.1~4.04A |
| Output Power (Watts): | 85 |
| Over Voltage Protection: | 103-105% |
| Thermal Protection: | Optional |
| General | |
| Efficiency: | 86-92% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.17~1.32 lbs (530~600g) |

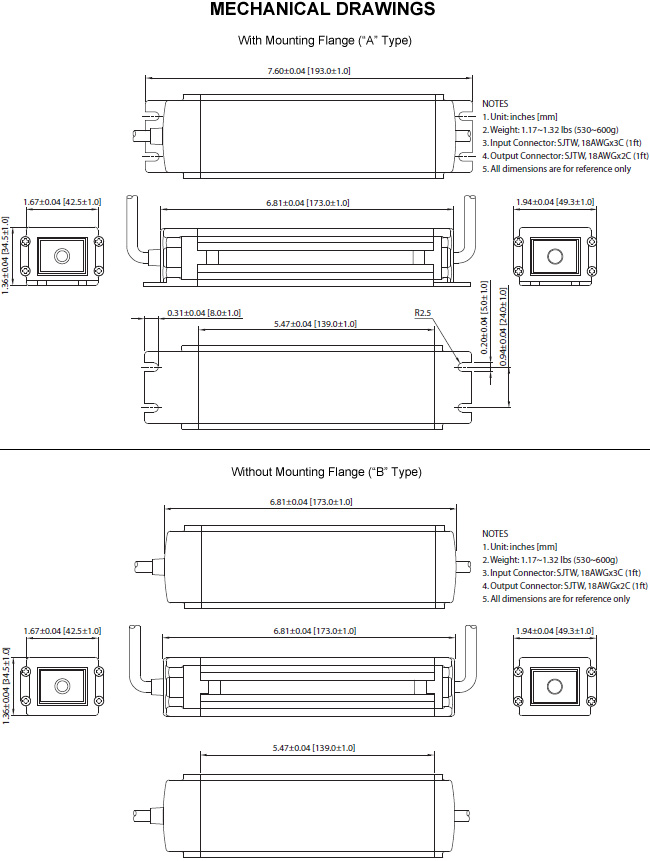

| Dimensions: | 6.81" x 1.94" x 1.36" (173.0 x 49.3 x 34.5 mm) |
| Notes & safety | |

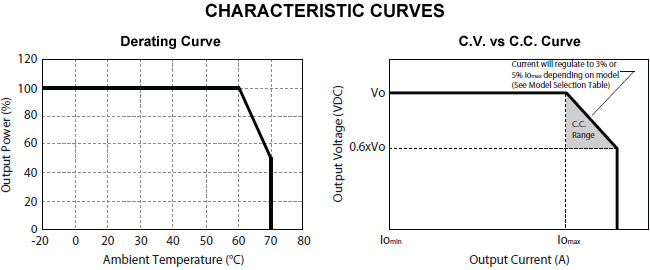

| Notes: | 1. For constant current (C.C.) mode, the output voltage will vary from Vo to 0.6 x Vo (See C.V. vs C.C. curve on page 4). 2. The red “X” in the model number can either be “A” for models with a mounting flange or “B” for models without a mounting flange. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL UL8750: 1st edition |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV (EN61347-1: 2008, IEC61347-1: 2007, EN/IEC61347-2-13: 2006) |
