PSLSF05
The PSLSF05 series of AC/DC converters offers up to 5 watts of output power in an ultra slim SIP package with 90 degree bent pins. This series consists of single output models with a wide input voltage range of 85~264VAC/100~400VDC. Each model in this series is industrial grade, has isolation of 3000VAC, and is RoHS compliant. This series also has IEC62368, UL62368, and EN62368 safety approvals. See PSLS05 series for straight pin options.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLSF05-15B03 | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.79" x 0.74" | Get a Quote |
| PSLSF05-15B05 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.79" x 0.74" | Get a Quote |
| PSLSF05-15B09 | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 0.56A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.79" x 0.74" | Get a Quote |
| PSLSF05-15B12 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 0.42A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.79" x 0.74" | Get a Quote |
| PSLSF05-15B15 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 0.34A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.79" x 0.74" | Get a Quote |
| PSLSF05-15B24 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 0.21A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.79" x 0.74" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 3.3V Model: ±3% Max. Other Models: ±2% Max. |
| Output Current: | 0.21A, 0.34A, 0.42A, 0.56A, 1A |
| Output Power (Watts): | 3.3, 5 |
| Short Circuit Protection: | Continuous, Self Recovery |
| Over Voltage Protection: | Yes, See Data Sheet |
| General | |
| Efficiency: | Up to 79% |
| Isolation: | 4KVAC |
| Environmental | |
| Operating Temperature: | -25 to 85°C |
| Storage Temperature: | -40 to +85°C |
| Physical | |
| Weight: | 0.25oz (7g) |

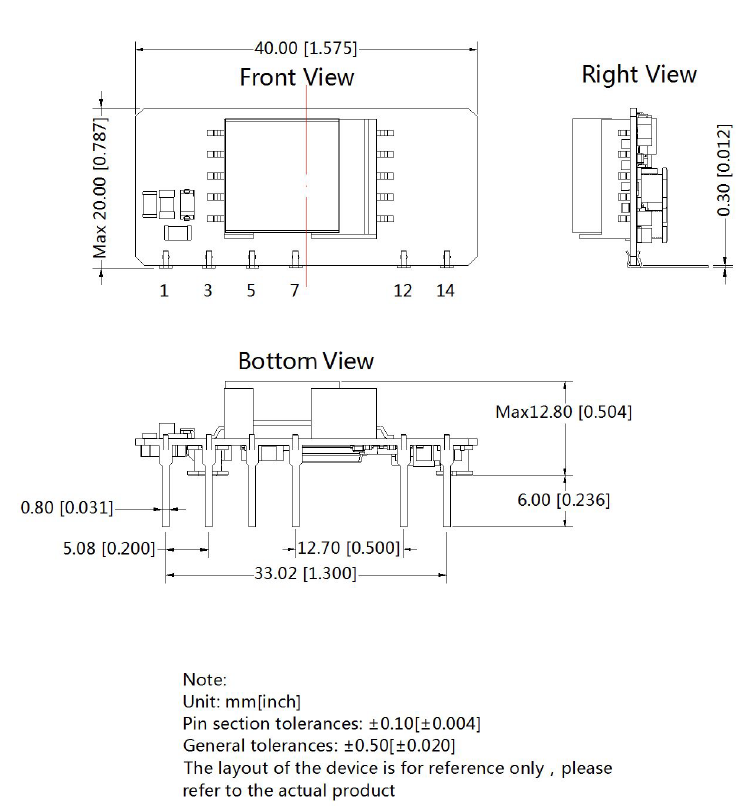

| Dimensions: | 1.58in x 0.79in x 0.74in (40mm x 20mm x 18.8mm) |
| Notes & safety | |
| Notes: | 1.This product is Listed to applicable standards and requirements by UL. 2. Module required dispensing fixed after assembled. 3. This part is open frame, at least 6.4mm safety distance between the primary and secondary external components of the module is needed to meet the safety requirements. 4. Customization is available. 5. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC62368, EN62368, UL62368 |
| RoHS Compliance: | Yes |
