PSLS05C

The PSLS05C series of AC/DC converters offers up to 5 watts of output power in an ultra-compact 1.65” x 0.98” x 0.43” package. This series consists of coated single output models with a wide AC/DC input of 85~264V (100~400V). Each model in this series is RoHS compliant, has over current, over voltage, and short circuit protection, and has high efficiency. This series meets UL60950/EN60950 standards.

• AC/DC Input Range of 85~264V • High Efficiency • RoHS Compliant • Low Loss, Green Power • Ultra-Miniature Package • Optional 90 Degree Corner Package (-F) • Over Current, Over Voltage, and Short Circuit Protection • Coated Package • UL60950/EN60950 Standards
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSLS05C-15B03S Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 3.3 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS05C-15B05S Input Voltage: 85~264 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS05C-15B09S Input Voltage: 85~264 Output Voltage: 9 Output Current: 560mA Output Power (W): 5 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS05C-15B12S Input Voltage: 85~264 Output Voltage: 12 Output Current: 420mA Output Power (W): 5 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS05C-15B15S Input Voltage: 85~264 Output Voltage: 15 Output Current: 340mA Output Power (W): 5 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS05C-15B24S Input Voltage: 85~264 Output Voltage: 24 Output Current: 210mA Output Power (W): 5 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47-440Hz
Output
Output Voltage: 3.3, 5, 9, 12, 15, 24
Voltage Accuracy: 3.3V Models: ±3.0%
Other Models: ±2.0%
Output Current: 210mA, 340mA, 420mA, 560mA, 1000mA
Output Power (Watts): 3.3, 5
Short Circuit Protection: Continuous, Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Efficiency: Up to 75%
Isolation: 3000VAC
Environmental
Operating Temperature: -25 to +85ºC
Storage Temperature: -40 to +105ºC
Physical
Weight: 0.35oz (10g)
Dimensions: 1.65in x 0.98in x 0.43in (42mm x 25mm x 11mm)
Notes & safety

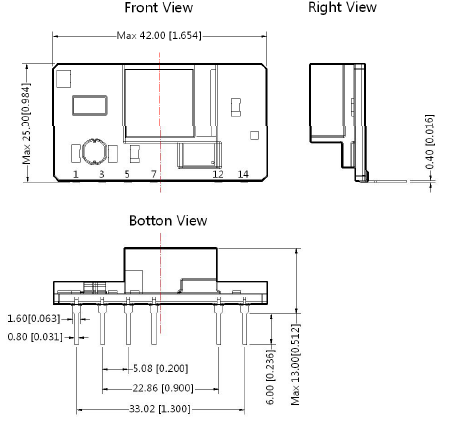

Notes: 1. Add “–F” to end of model number to indicate 90 degree package.
2. External electrolytic capacitors are required to modules, refer to typical applications for more details.
3. Ripple and Noise refers to “Ripple and Noise Measure Figure”
4. Module requires dispensing fixed after assembled.
5. –F models do not meet these approvals.
6. Typical Application Circuit Refer to Figure 1.
7. Recommended Circuit Refer to Figure 3.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950/EN60950, UL/CE (-F Models to not meet UL/CE Approvals)
RoHS Compliance: Yes
