PSLS01C

The PSLS01C series of AC/DC (high voltage DC/DC) converters offers up to 1 watt of output power in an ultra-compact 1.38” x 0.98” x 0.51~0.75” package. This series consists of coated single output models with a wide AC/DC input of 85~264V (70~400V). Each model in this series is RoHS compliant, has over current and short circuit protection, and has high efficiency. This series meets UL60950/EN60950 standards.

• AC/DC Input of 85~264V • DC/DC Input of 70~400V • High Efficiency • RoHS Compliant • Low Loss, Green Power • Industrial Design • Optional 90 Degree Corner Package (-F) • Over Current and Short Circuit Protection • Coated Package • UL60950/EN60950 Standards
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSLS01C-15B05S Input Voltage: 85~264 Output Voltage: 5 Output Current: 200mA Output Power (W): 1 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS01C-15B09S Input Voltage: 85~264 Output Voltage: 9 Output Current: 111mA Output Power (W): 1 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS01C-15B12S Input Voltage: 85~264 Output Voltage: 12 Output Current: 83mA Output Power (W): 1 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS01C-15B15S Input Voltage: 85~264 Output Voltage: 15 Output Current: 67mA Output Power (W): 1 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSLS01C-15B24S Input Voltage: 85~264 Output Voltage: 24 Output Current: 42mA Output Power (W): 1 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47 to 440Hz
Output
Output Voltage: 5, 9, 12, 15, 24
Voltage Accuracy: 5V Model: ±10% Other Models: ±5%
Output Current: 42mA, 67mA, 83mA, 111mA, 200mA
Output Power (Watts): 1
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 70%
Isolation: 3000VAC
Environmental
Operating Temperature: -40 to +85ºC
Storage Temperature: -40 to +105ºC
Physical
Weight: 0.28oz (8g)

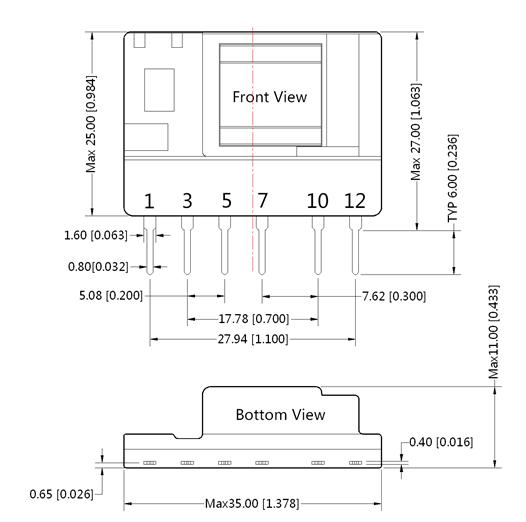

Dimensions: Standard Case: 1.38in x 0.98in x 0.51in (35mm x 25mm x 13mm)

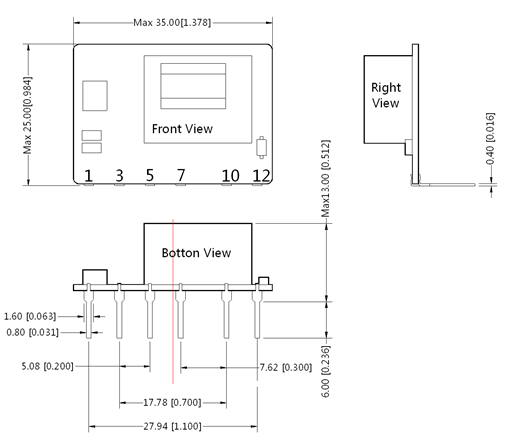

Case with 90º Bend: 1.38in x 0.98in x 0.75in (35mm x 25mm x 19mm)
Notes & safety
Notes: 1. Add “–F” to end of model number to indicate 90 degree package.
2. External electrolytic capacitors are required to modules, refer to typical applications for more details.
3. Ripple and Noise refers to “Ripple and Noise Measure Figure”
4. Module requires dispensing fixed after assembled.
5. –F models do not meet UL/CE approvals.
6. Typical Application Circuit Refer to Figure 1.
7. Recommended Circuit Refer to Figure 3.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950/EN60950, UL/CE
RoHS Compliance: Yes
