PSLEA60

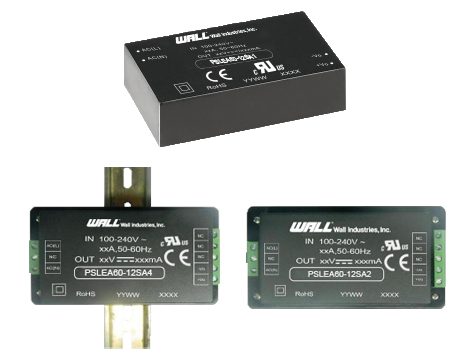

The PSLEA60 series of AC/DC converters offers up to 60 watts of output power in a DIP, chassis mount, or DIN rail mount package. This series consists of single output models with a wide input voltage range of 85~264VAC (100~370VDC). Each model in the PSLEA60 series features high power density, high efficiency, regulated output, low ripple and noise, and protection against short circuit, over current, and over voltage conditions. This series has IEC/UL62368-1 and EN62368-1 safety standards and is RoHS compliant.
X = "A1” for DIP Package, “A2” for Chassis Mount Package, “A4” for DIN Rail Mount Package.
PSLEA60-05SA1 = 5VDC Output, DIP Package
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLEA60-05Sx | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 10000mA | Output Power (W): 50 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: See Data Sheet | Get a Quote |
| PSLEA60-12x | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 5000mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole , Chassis Mount, DIN Rail | Size: See Data Sheet | Get a Quote |
| PSLEA60-15Sx | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4000mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: See Data Sheet | Get a Quote |
| PSLEA60-24Sx | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2500mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: See Data Sheet | Get a Quote |
| PSLEA60-48Sx | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 1250mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: See Data Sheet | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 10000mA, 5000mA, 4000mA, 2500mA, 1250mA |
| Output Power (Watts): | 50, 60 |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | Up to 90% |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | DIP Mounting: 7.41oz (210g) Chassis Mounting: 10.23oz (290g) DIN Rail Mounting: 12.70oz (360g) |

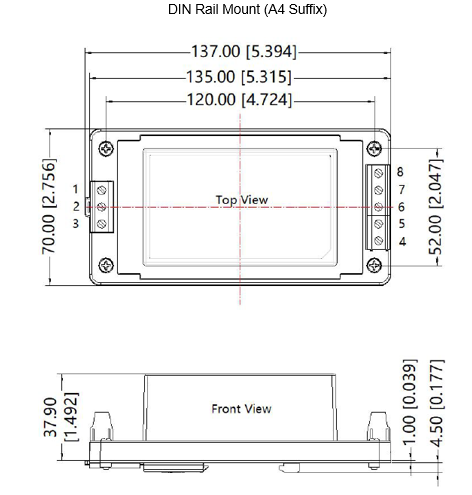

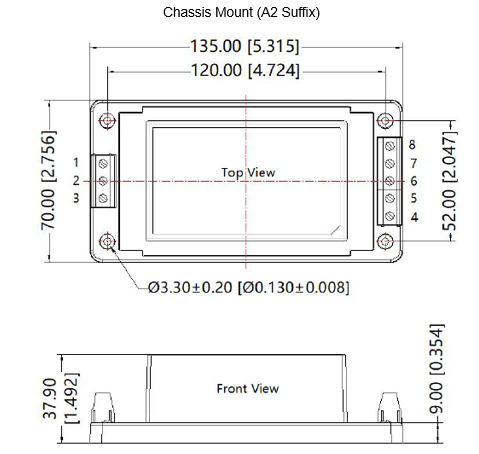

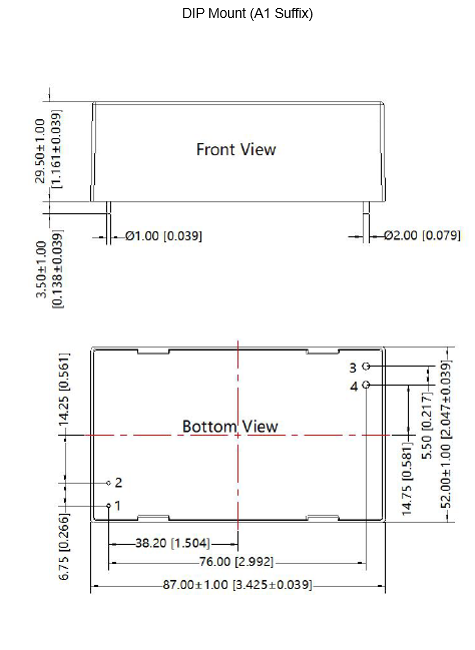

| Dimensions: | DIP Mounting: 3.43 x 2.05 x 1.16in (87 x 52 x 29.5mm) Chassis Mounting: 5.32 x 2.76 x 1.49in (135 x 70 x 37.9mm) DIN Rail Mounting: 5.39 x 2.76 x 1.67in (137 x 70 x 42.40mm) |
| Case Material: | Black Plastic, Flame-Retardant and Heat-Resistant UL94-V0 |
| Notes & safety | |
| Notes: | 1. “X” in model number represents case type. “X” can either be “A1” for DIP, “A2” for chassis mount, or “A4” for DIN rail mount. 2. Parallel cable method is used for ripple and noise test. Contact factory for specific information. 3. This product is Listed to applicable standards and requirements by UL. 4. See ‘Design Notes-EMC Compliance Recommended Circuit’ for recommended circuit. 5. If product is not operated within the required load range, the product performance cannot be guaranteed to comply with all parameters in the data sheet. 6. Customization is available. Please contact factory for more information. 7. Products classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/UL62368-1 Safety Approval & EN62368-1 |
| RoHS Compliance: | Yes |
