PSLEA20
The PSLEA20 series of AC/DC converters offers up to 20 watts of output power in a DIP, Chassis Mount, or DIN Rail mount package. This series consists of single output models with a wide input voltage range of 85~264VAC (100~370VDC). Features of this series include high reliability, high efficiency, high isolation voltage, as well as low standby power consumption and low ripple and noise. This series also has short circuit, over current, and over voltage protection, it is RoHS compliant, and has IEC62368, UL62368, & EN62368 approvals.
• Wide Input Voltage Range of 85~264VAC (100~370VDC)
• Regulated Output
• Low Standby Power Consumption
• Low Ripple & Noise
• High Efficiency
• High Reliability
• Short Circuit, Over Current, and Over Voltage Protection
• High Isolation Voltage up to 4KVAC
• Plastic Case
• RoHS Compliant
• 3 Year Warranty
• IEC62368, UL62368, & EN62368 Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLEA20-03SA1 | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 3600mA | Output Power (W): 11.8 | No. Outputs: S | Case: Through Hole | Size: 2.12" x 1.13" x 0.93" | Get a Quote |
| PSLEA20-03SA2 | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 3600mA | Output Power (W): 11.8 | No. Outputs: S | Case: Chassis Mount | Size: 3" x 1.24" x 1.57" | Get a Quote |
| PSLEA20-03SA4 | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 3600mA | Output Power (W): 11.8 | No. Outputs: S | Case: DIN Rail | Size: 3" x 1.24" x 1.45" | Get a Quote |
| PSLEA20-05SA1 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 3600mA | Output Power (W): 18 | No. Outputs: S | Case: Through Hole | Size: 2.12" x 1.13" x 0.93" | Get a Quote |
| PSLEA20-05SA2 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 3600mA | Output Power (W): 18 | No. Outputs: S | Case: Chassis Mount | Size: 3" x 1.24" x 1.57" | Get a Quote |
| PSLEA20-05SA4 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 3600mA | Output Power (W): 18 | No. Outputs: S | Case: DIN Rail | Size: 3" x 1.24" x 1.45" | Get a Quote |
| PSLEA20-09SA1 | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 2200mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.12" x 1.13" x 0.93" | Get a Quote |
| PSLEA20-12SA1 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 1660mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.12" x 1.13" x 0.93" | Get a Quote |
| PSLEA20-15SA1 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.12" x 1.13" x 0.93" | Get a Quote |
| PSLEA20-24SA1 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.12" x 1.13" x 0.93" | Get a Quote |
| PSLEA20-09SA2 | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 2200mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount | Size: 3" x 1.24" x 1.57" | Get a Quote |
| PSLEA20-12SA2 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 1660mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount | Size: 3" x 1.24" x 1.57" | Get a Quote |
| PSLEA20-15SA2 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount | Size: 3" x 1.24" x 1.57" | Get a Quote |
| PSLEA20-24SA2 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount | Size: 3" x 1.24" x 1.57" | Get a Quote |
| PSLEA20-09SA4 | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 2200mA | Output Power (W): 20 | No. Outputs: S | Case: DIN Rail | Size: 3" x 1.24" x 1.45" | Get a Quote |
| PSLEA20-12SA4 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 1660mA | Output Power (W): 20 | No. Outputs: S | Case: DIN Rail | Size: 3" x 1.24" x 1.45" | Get a Quote |
| PSLEA20-15SA4 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: DIN Rail | Size: 3" x 1.24" x 1.45" | Get a Quote |
| PSLEA20-24SA4 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: DIN Rail | Size: 3" x 1.24" x 1.45" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 3.3V Output: ±3% Other Models: ±2% |
| Output Current: | 3600mA, 2200mA, 1660mA, 1330mA, 833mA |
| Output Power (Watts): | 11.8, 18, 20 |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | 3.3V/5V Output: ≤7.5V 9V Output: ≤15V 12V/15V Output: ≤20 24V Output: ≤30V |
| General | |
| Efficiency: | 83% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | DIP: 2.12oz (60g) Chassis Mount: 2.82oz (80g) DIN-Rail Mount: 3.53oz (100g) |

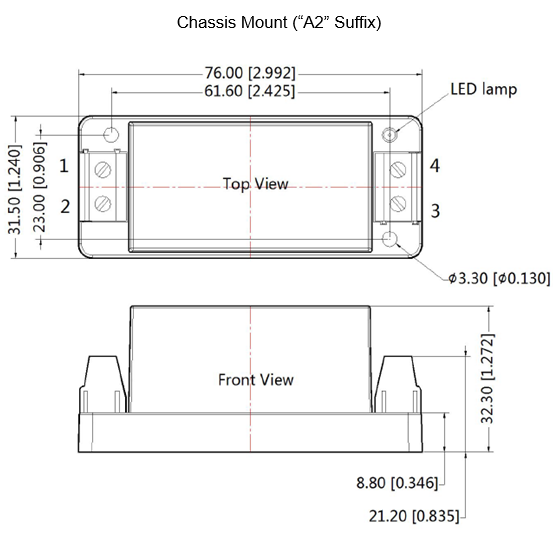

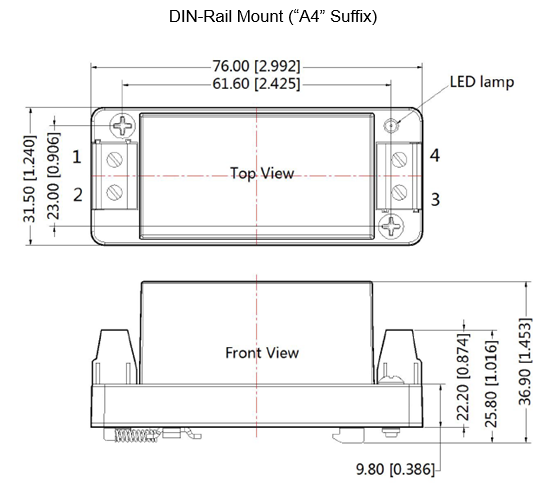

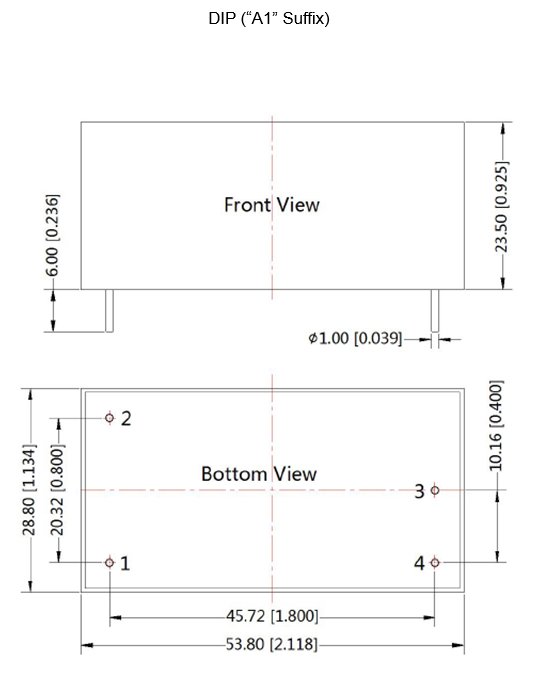

| Dimensions: | DIP: 2.12in x 1.13in x 0.93in (53.8mm x 28.8mm x 23.5mm) Chassis Mount: 3in x 1.24in x 1.57in (76mm x 31.5mm x 32.3mm) DIN-Rail Mount: 3in x 1.24in x 1.45in (76mm x 31.5mm x 36.9mm) |
| Case Material: | Black Flame-Retardant & Heat Resistant Plastic (UL94V-0) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates package mount type. “X” can be “A1” for DIP, “A2” for Chassis Mount, or “A4” for DIN Rail Mount. 2. Ripple and noise are measured by “parallel cable” method. 3. Customization available. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC62368, EN62368, UL62368 |
| RoHS Compliance: | Yes |
